Harness Inspection
Harness Inspection

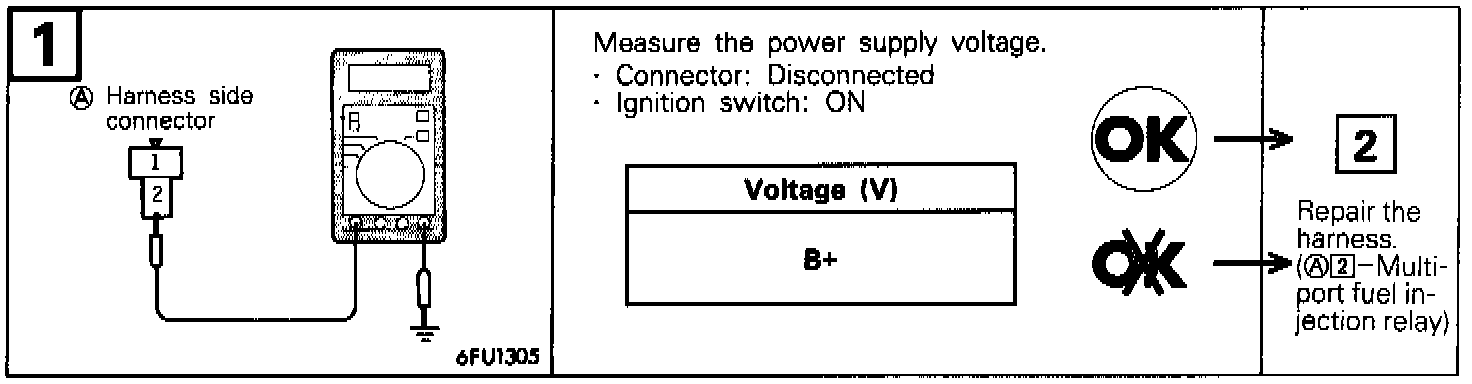

Step 1

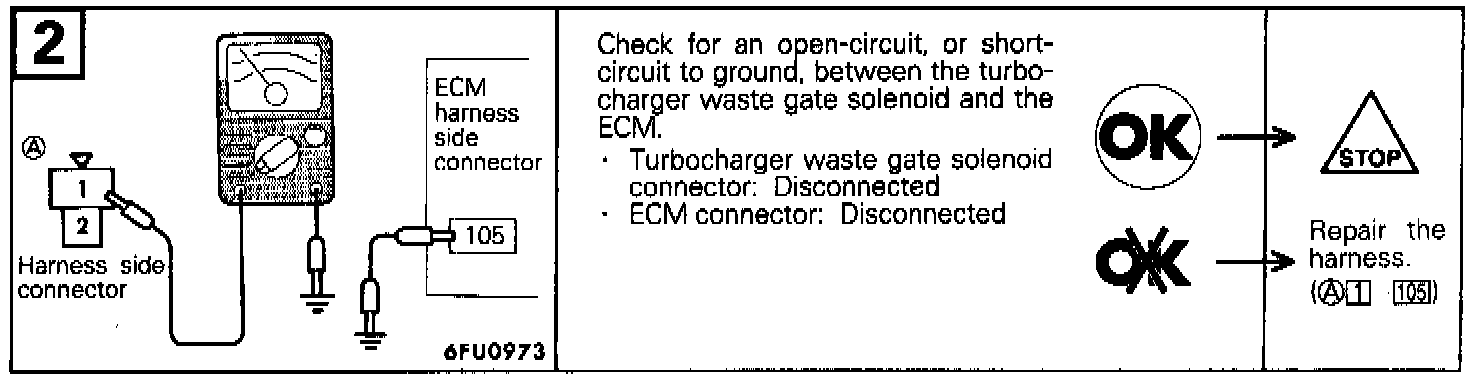

Step 2
Troubleshooting hints:
If the turbocharger waste gate solenoid is not on, overboost pressure will be low when using regular gasoline and acceleration will be poor.
