Air Bypass Valve: Testing and Inspection

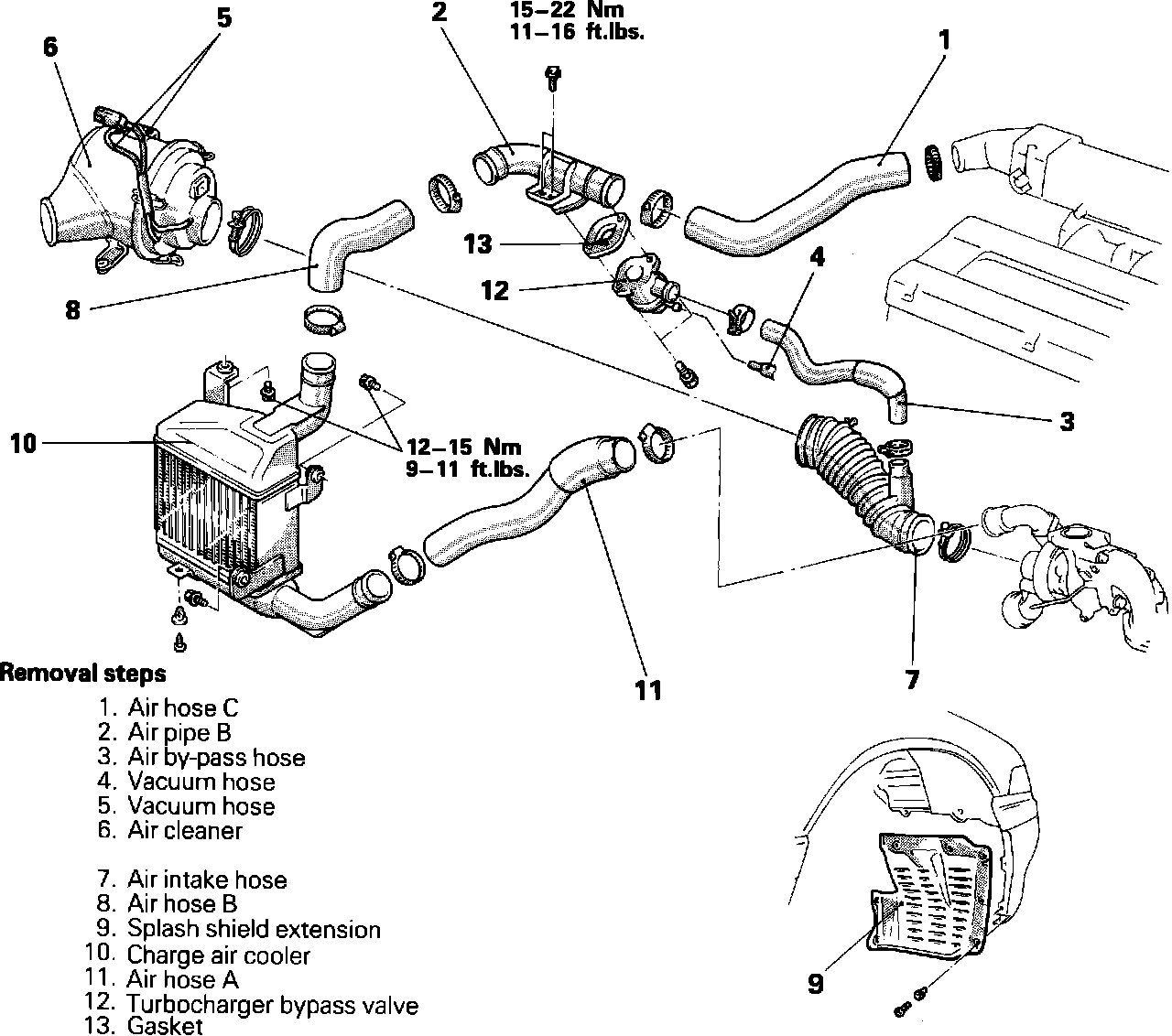

Intercooler And Components:

1. Remove the air bypass valve.. Refer to COMPONENT REPLACEMENT AND REPAIR PROCEDURES.

Air Bypass Valve Vacuum Test:

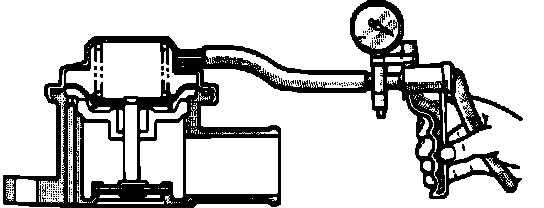

2. Connect a hand vacuum pump to the fitting of the air bypass valve.
3. Apply a vacuum of approx. 7.7 in.Hg., Check that the valve starts to open, and that the valve holds vacuum without bleeding off.
