Throttle Body Disassembly and Assembly

Cautions:
1. When loosening a Phillips screw which has been firmly tightened, use a Phillips screwdriver that is an exact fit for the screw.
2. Do not remove the throttle valve.
3. Be careful when removing the throttle position sensor screw as it has been coated with adhesive.

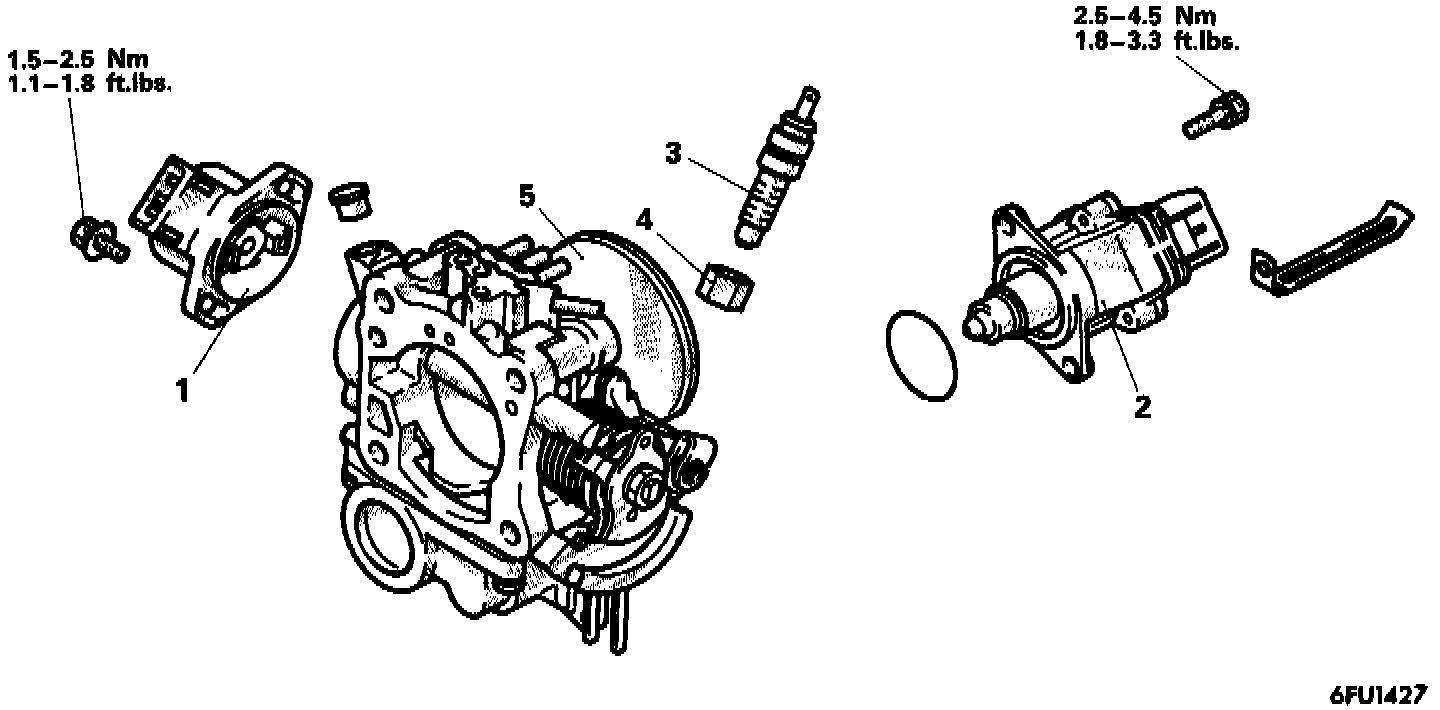

Disassembly steps
1. Throttle position sensor
2. Idle speed control motor assembly
3. Throttle valve set screw
4. Throttle body

Notes:
1. Reverse the disassembly procedures to reassemble.
2. Refer to "Service Points of Reassembly".
