Fuel Return Line: Diagrams

Caution: Release Residual pressure from high pressure hose before servicing fuel system components.

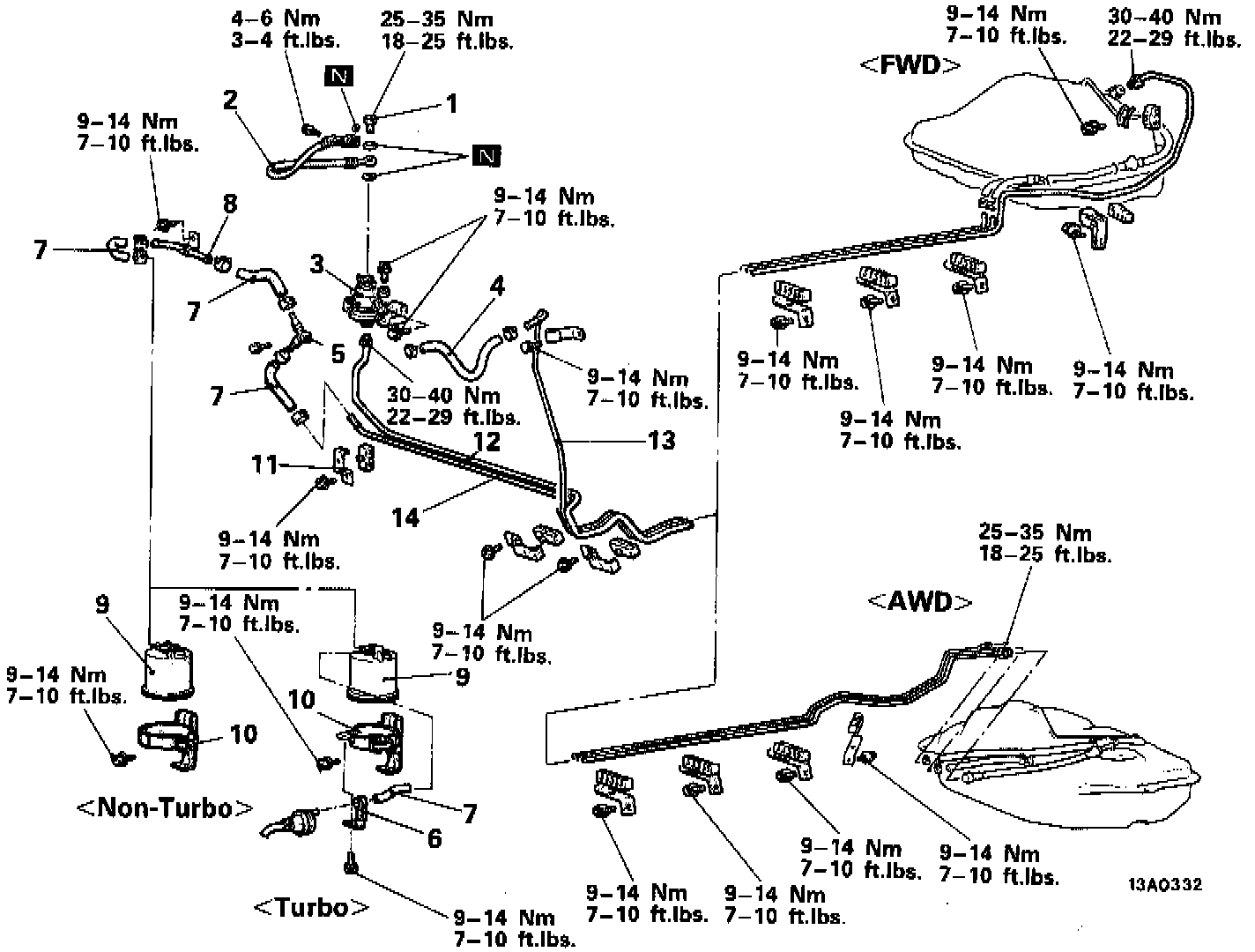

Components
1. Eye bolt
2. High pressure fuel hose
3. Fuel filter
4. Fuel return hose
5. Check valve
6. Clamp
7. Fuel vapor hose
8. Vapor pipe assembly
9. Evaporative emission canister
10. Evaporative emission canister holder
11. Clamp
12. Fuel main pipe
13. Fuel return pipe
14. Fuel vapor pipe
