Initial Inspection and Diagnostic Overview

Step 1

- Apply battery voltage to the fuel pump check connector verify pump operation.

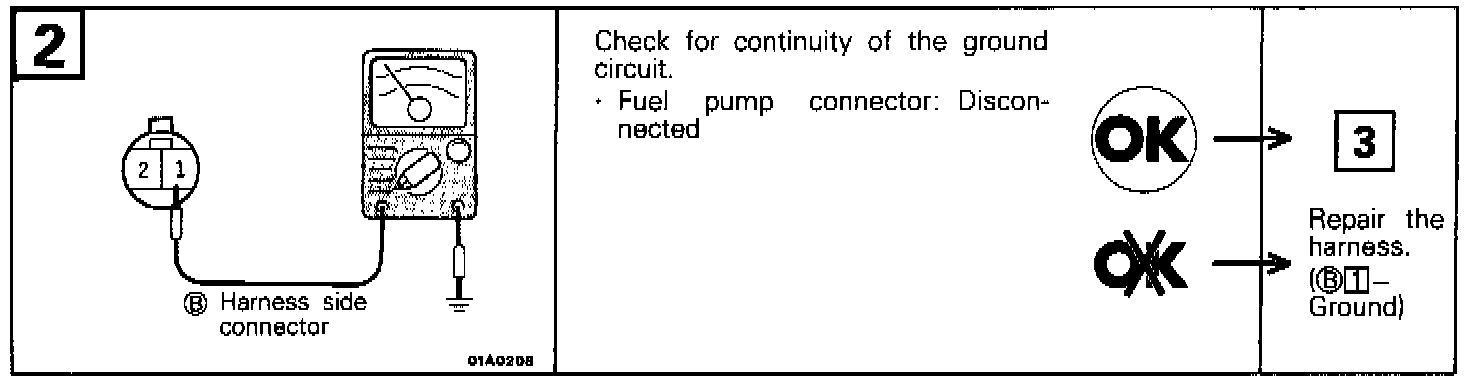

Step 2

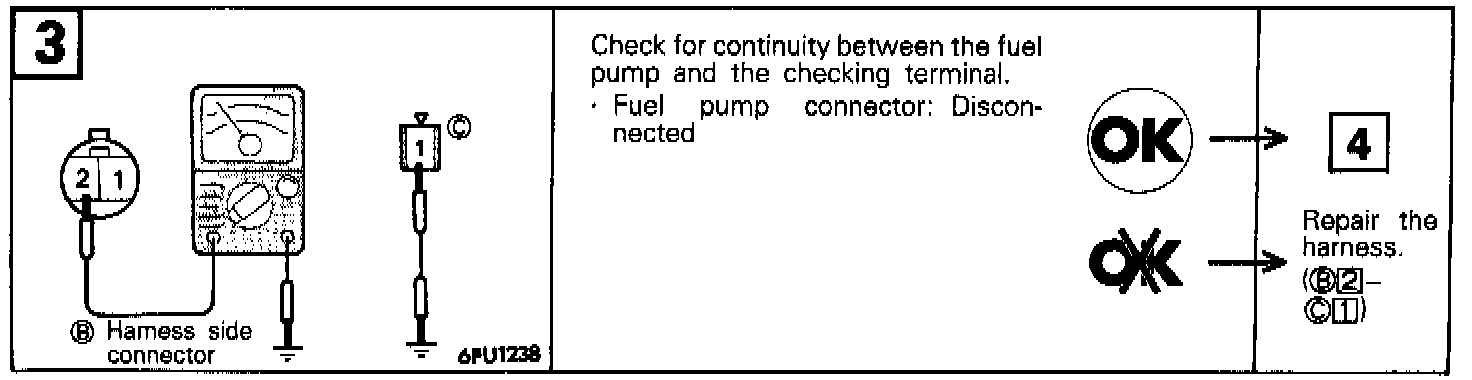

Step 3

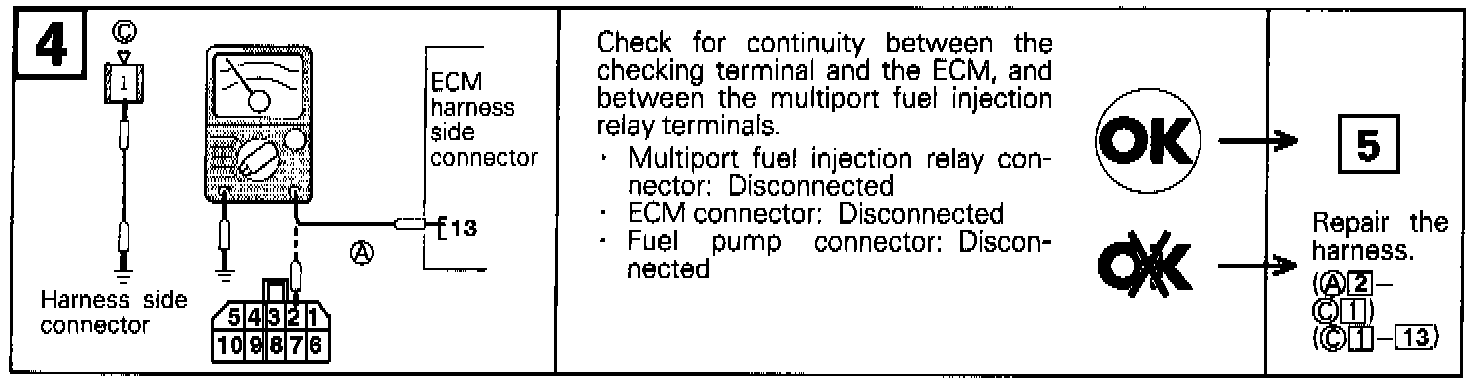

Step 4

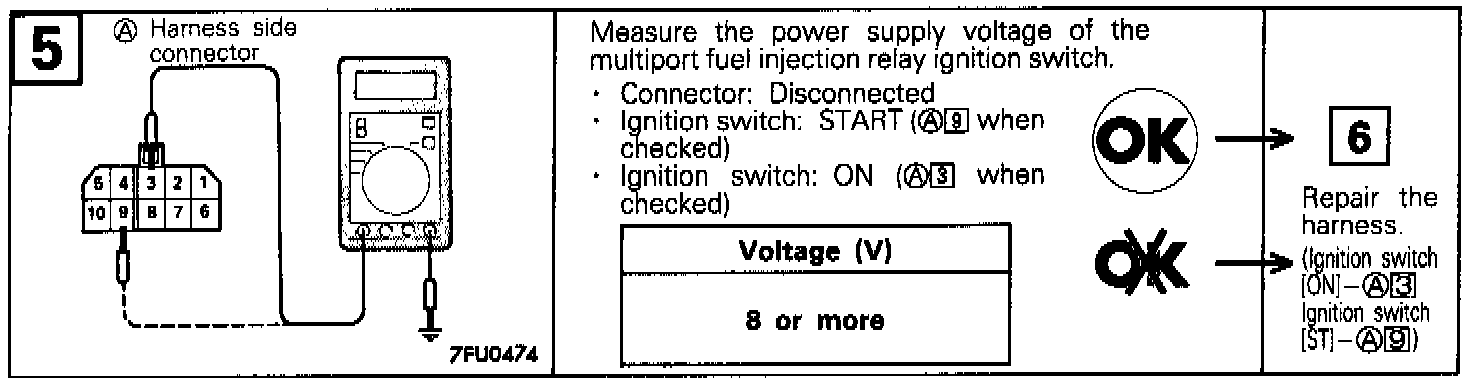

Step 5

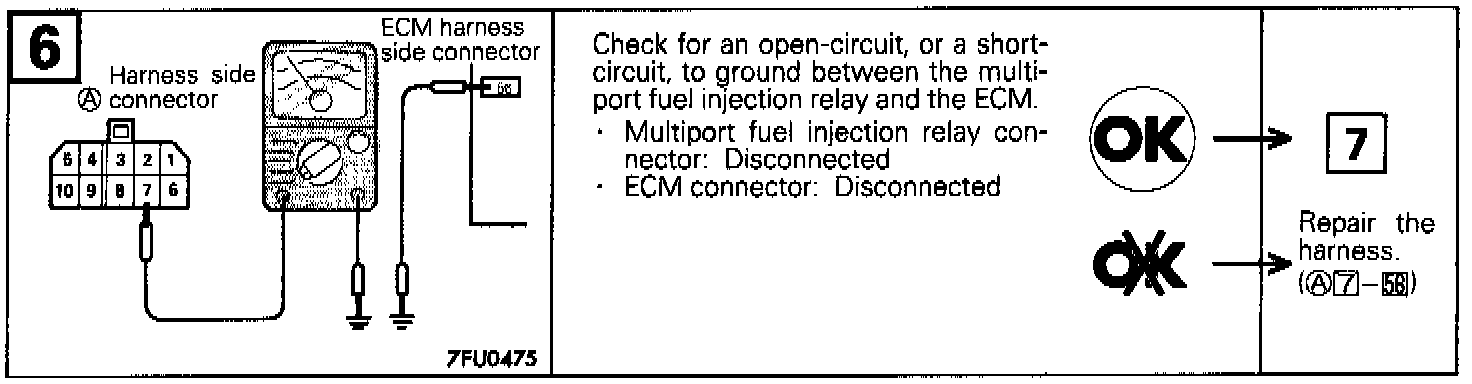

Step 6

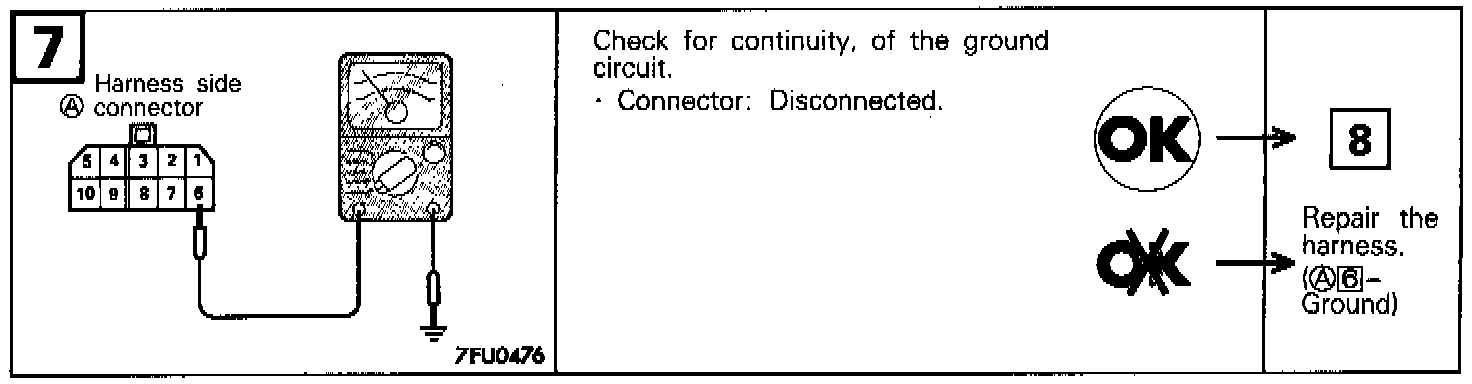

Step 7

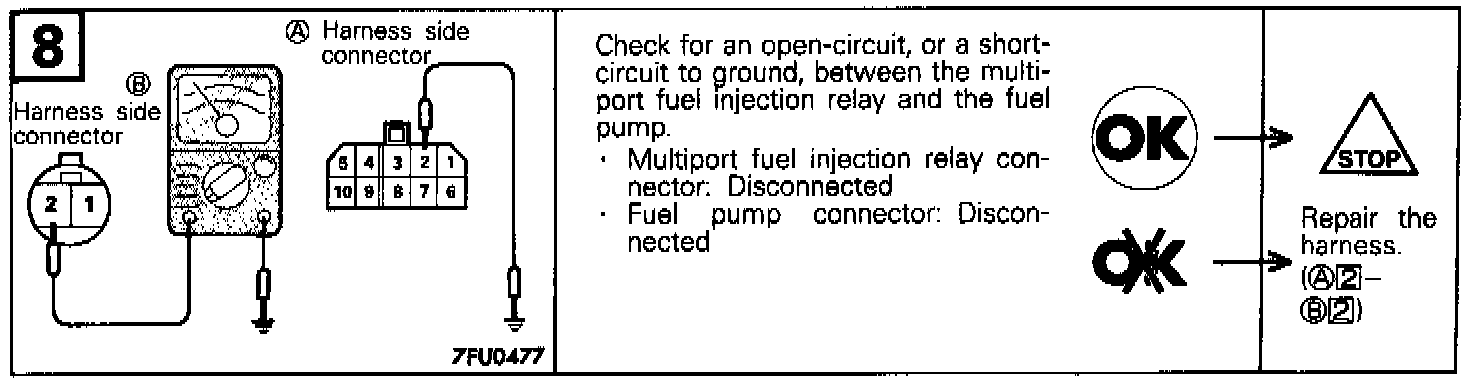

Step 8
