Fuel Pressure Control Solenoid: Locations

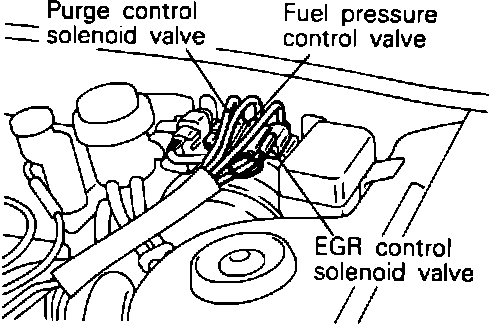

EGR, Purge And Fuel Pressure Regulator Control Solenoid Locations:






Mounted to a bracket on the LH firewall.
