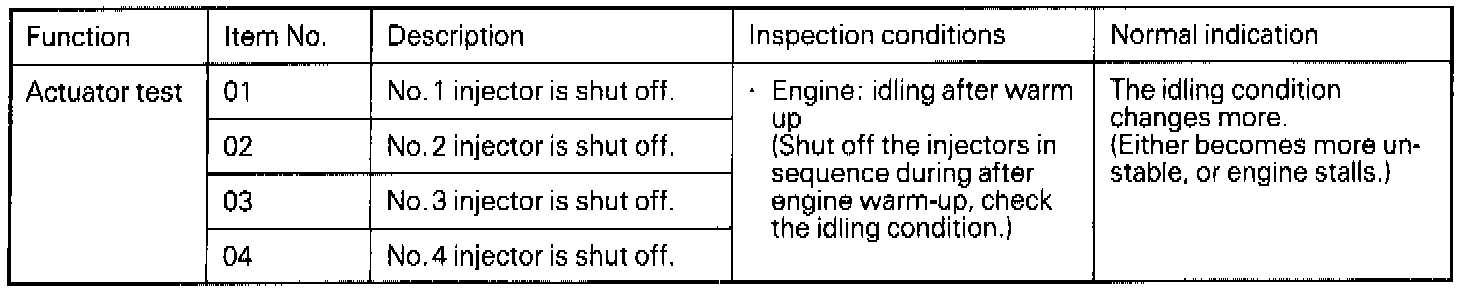

Scan Tool Testing and Procedures

Notes:

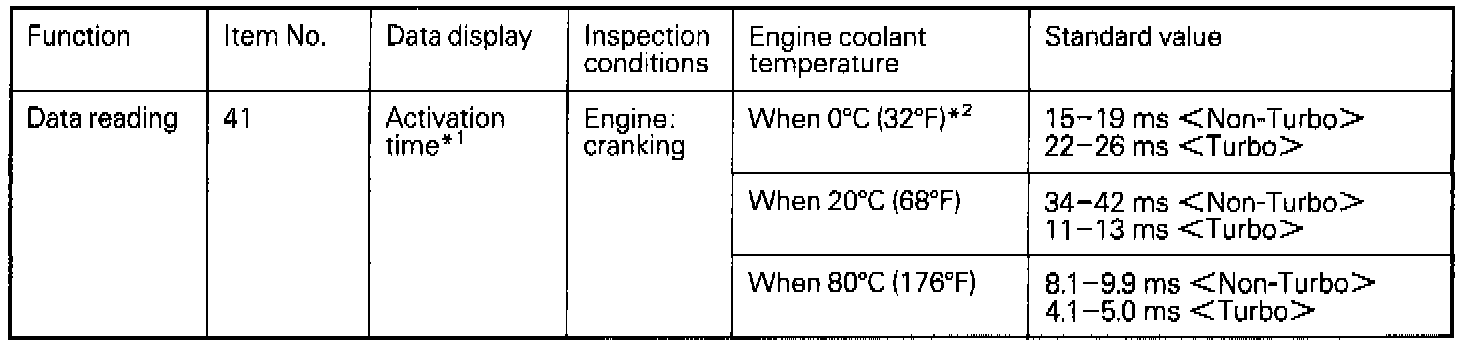

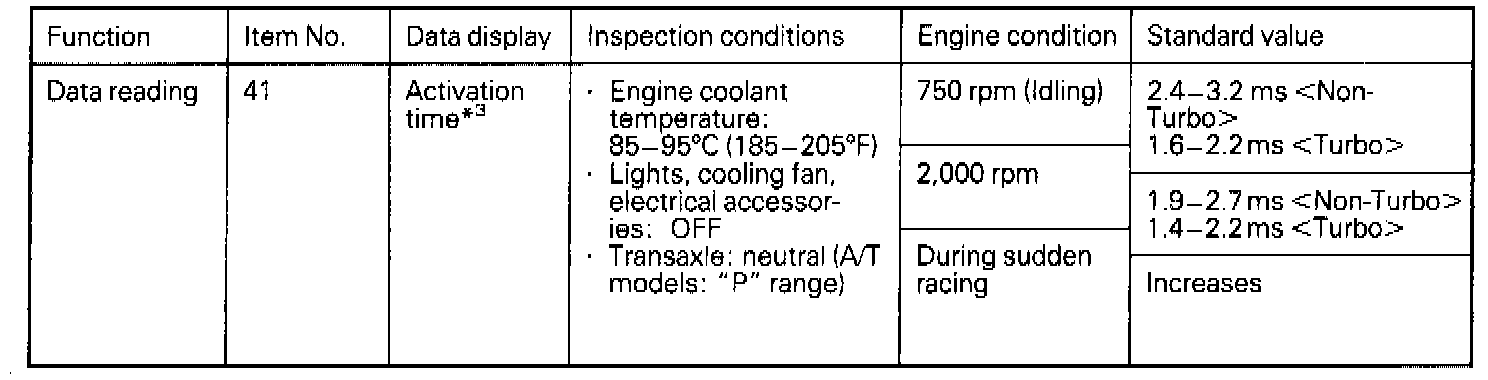

- The injector activation time indicates the time under the following conditions: a power source voltage of 11V and a cranking rpm of 250 rpm or less.

- Simultaneous injection at four cylinders when engine coolant temperature is 0°C (32°F).

- The injector activation time may be about 10% longer than indicated above when the vehicle is new [driven approximately 500 km (300 miles) or less].
