Fuel Filler Cap: Description and Operation

Fuel Filler Cap Operation:

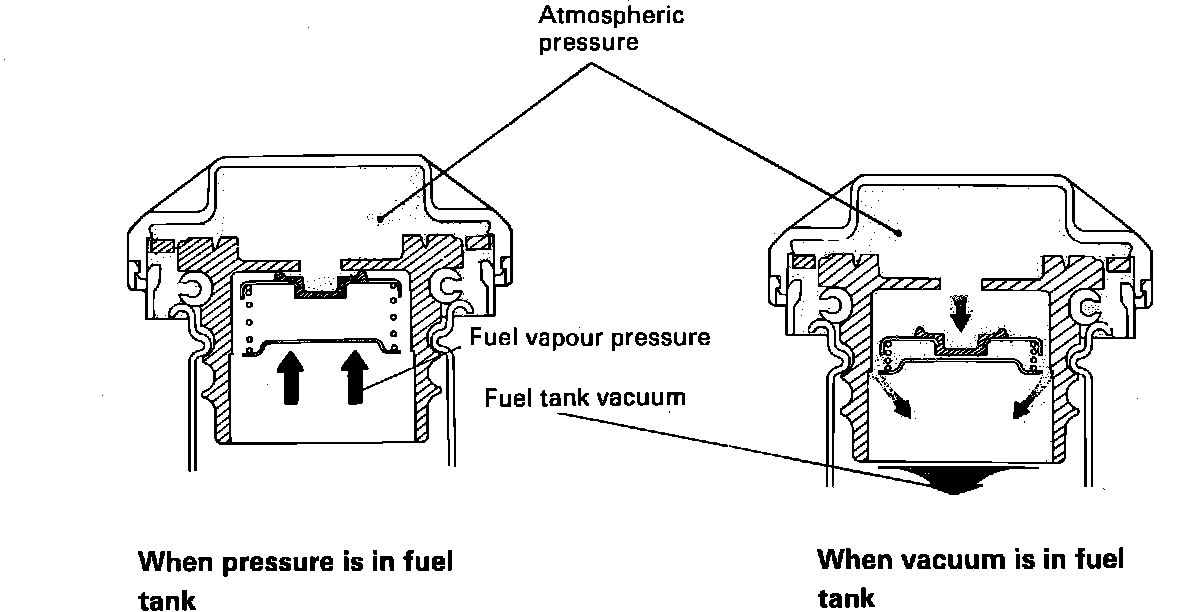

The fuel filler cap is equipped with a relief valve to to allow the escape of fuel vapors to the atmosphere if pressure within the tank exceeds the specified pressure and to prevent the collapse of the fuel tank under excessive negative pressure.
