Initial Inspection and Diagnostic Overview

Step 1

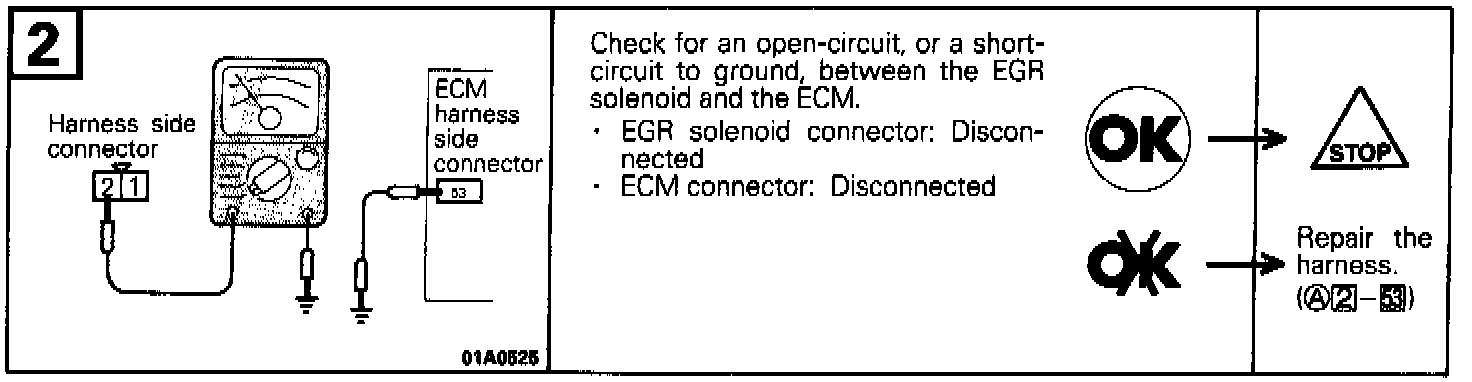

Step 2






TROUBLESHOOTING HINTS

When wire is broken, the EGR solenoid is turned off to lower the EGR temperature.
