EGR Control Solenoid: Locations

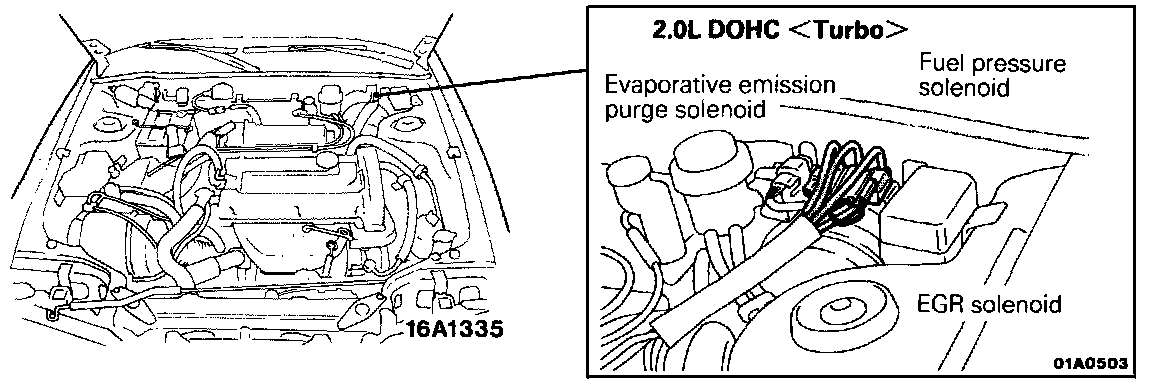

Evaporative Emission Purge Solenoid, Fuel Pressure Solenoid, EGR Solenoid <Turbo>:

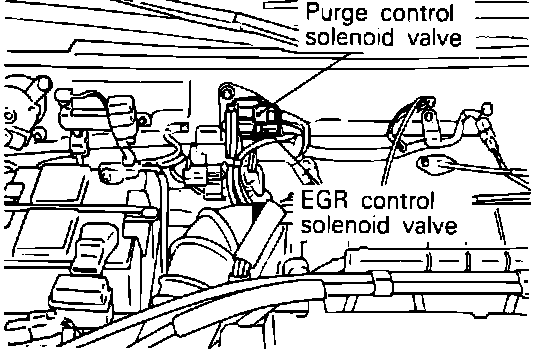

EGR And Purge Control Solenoid Locations:






Mounted to a bracket on the firewall.
