Harness Inspection

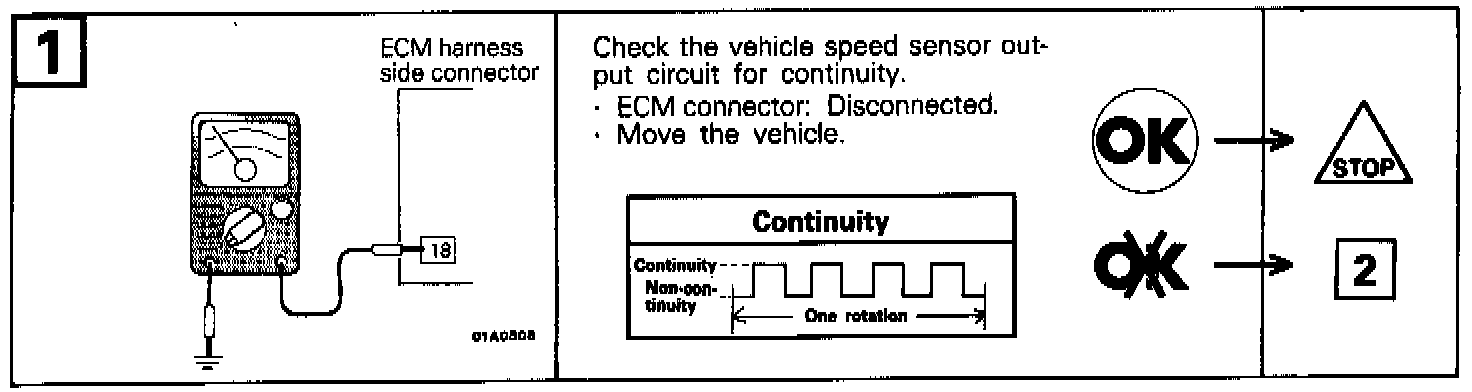

Step 1

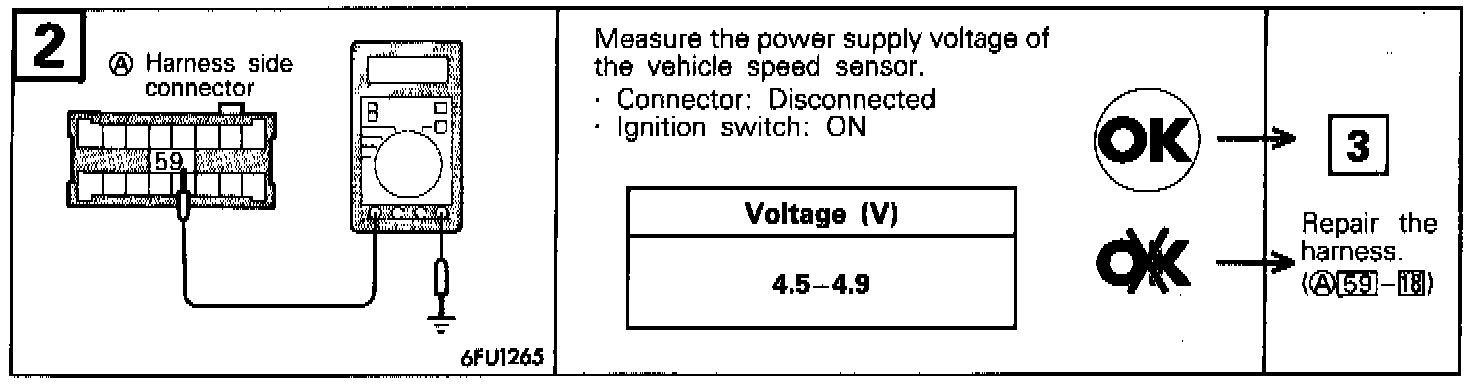

Step 2

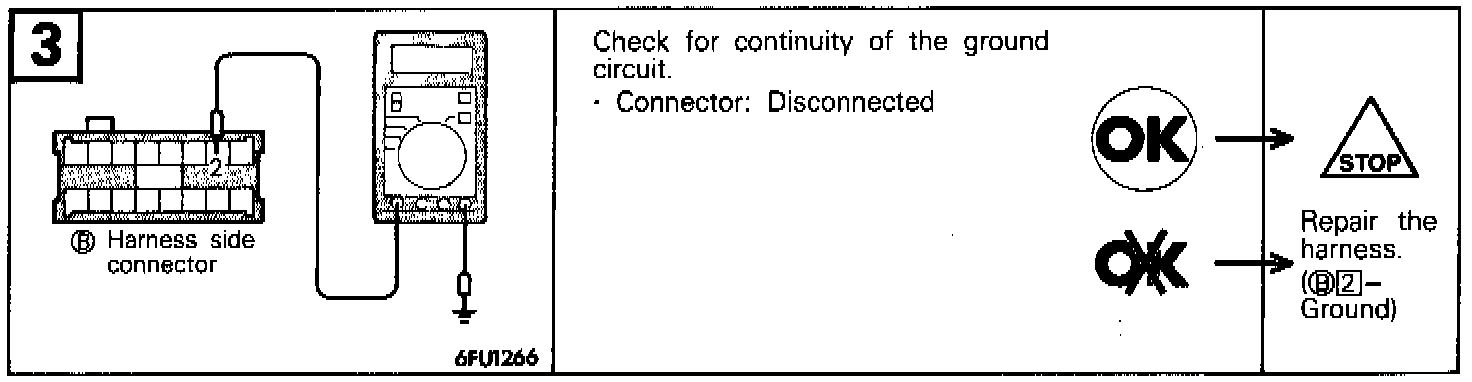

Step 3







TROUBLESHOOTING HINTS

In case of a short-circuit or broken wire in the vehicle speed sensor circuit, the speed range is fixed at the 3rd speed in automatic vehicles.
