Harness Inspection Automatic Transmission
Harness Inspection Automatic Transmission

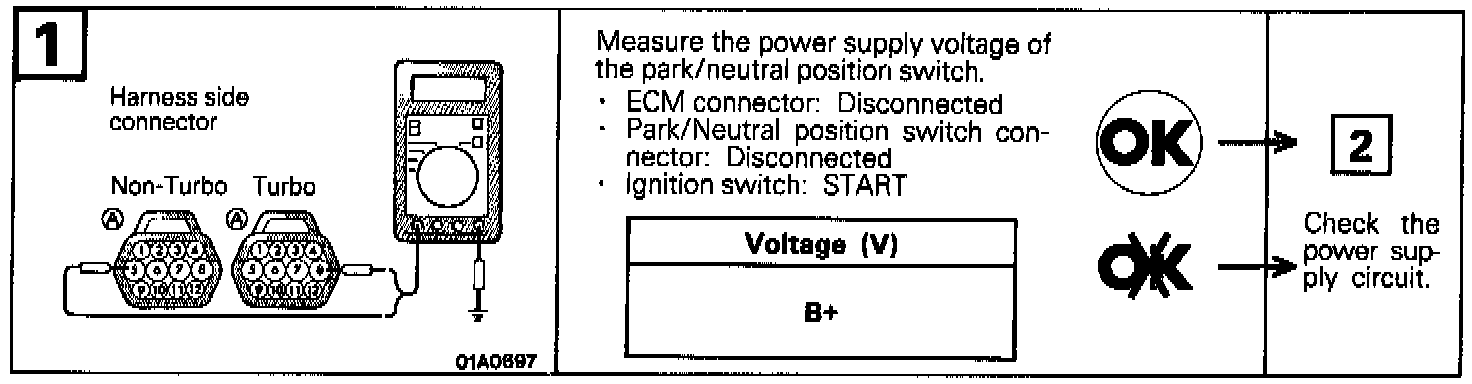

Step 1

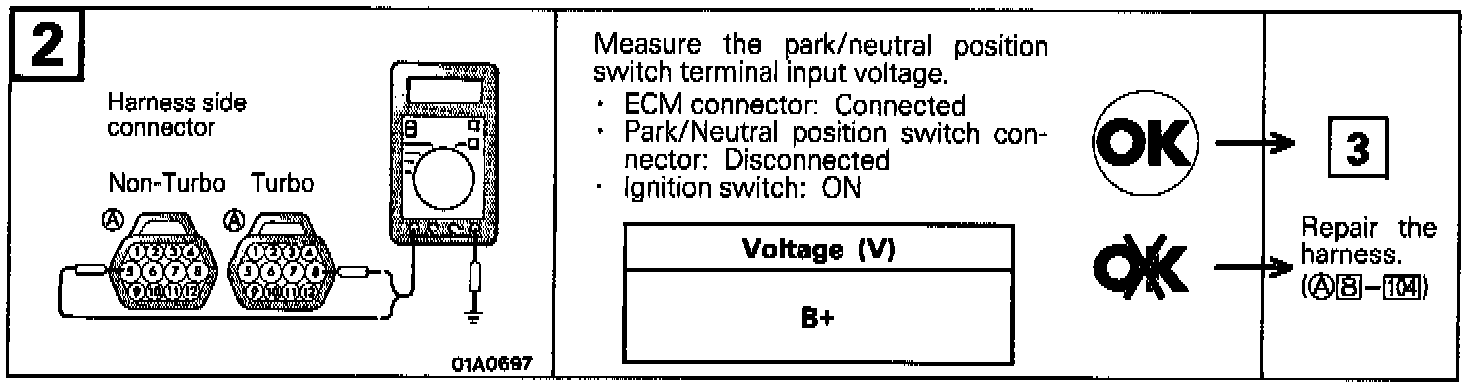

Step 2

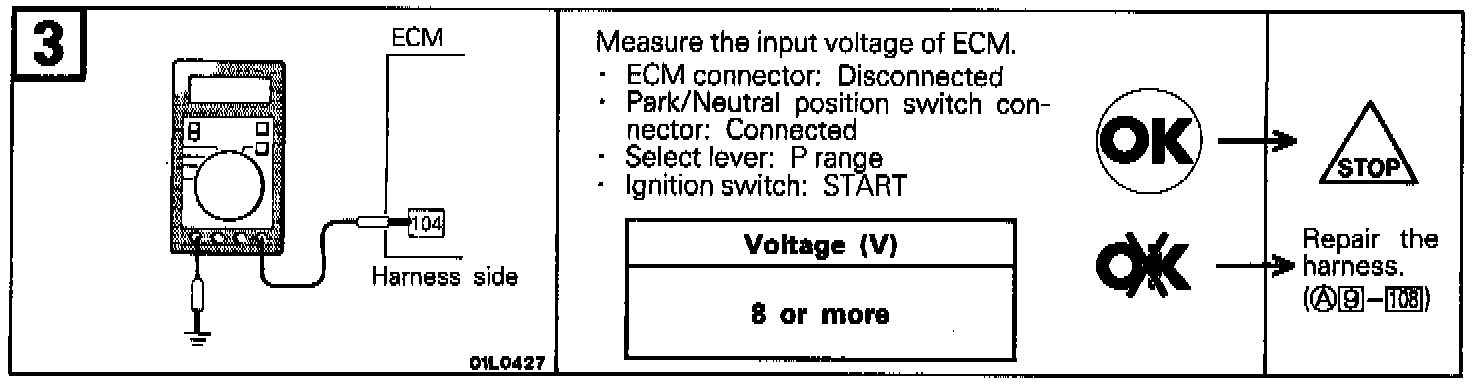

Step 3
TROUBLESHOOTING HINTS
The control cable between the shift lever and the
[1]
[2]
park/neutral position switch
may be adjusted improperly. The
ignition switch
system may be defective.
