Idle Speed Motor Position Sensor
>>
Locations
>>
Component Locations
Component Locations

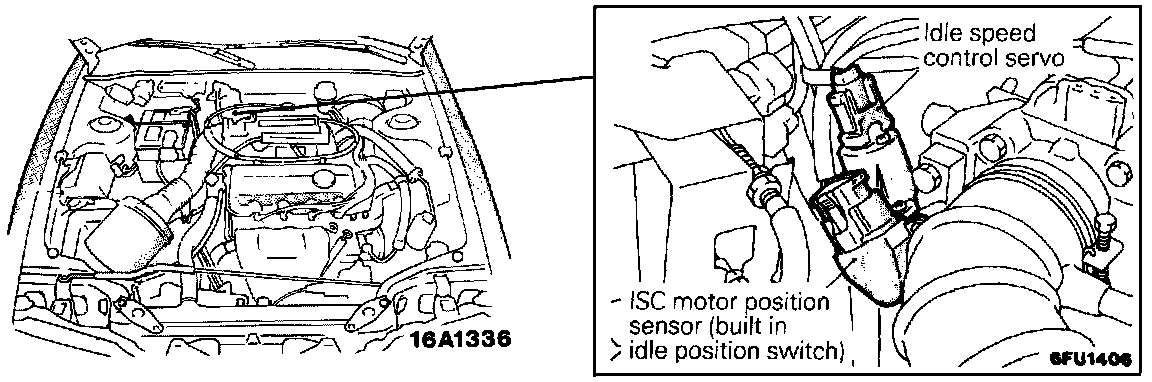

Idle Speed Control Servo, ISC Motor Position Sensor:
Mounted on the throttle chamber, on the firewall side.
