Coolant Temperature Sensor/Switch (For Computer)
>>
Locations
>>

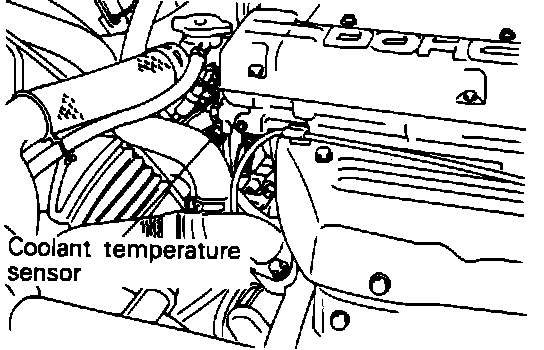

Coolant Temperature Sensor
Coolant Temperature Sensor
Engine Coolant Temperature Sensor:

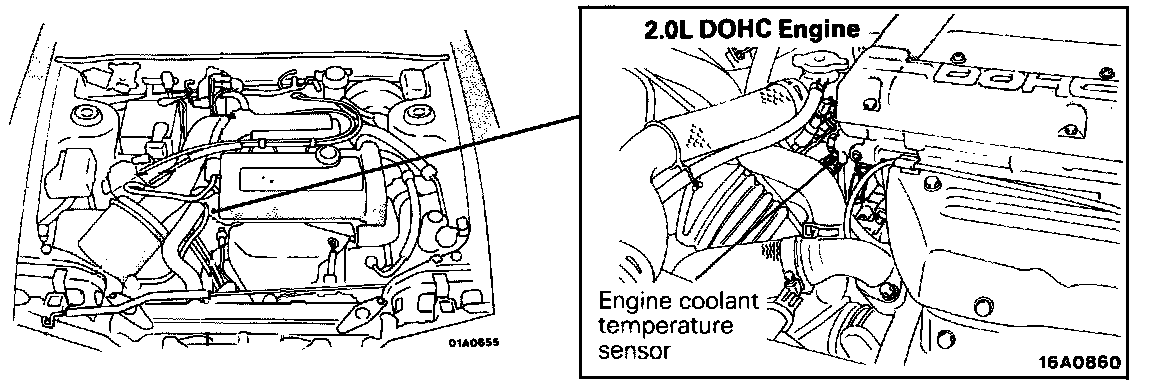

Engine Coolant Temperature Sensor Location:
Mounted in the thermostat housing, on the right side of the engine.
