Eagle
>>
1994
>>
Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Diagram Information and Instructions
>>
How to Use Complete Body and Chassis Diagrams
How to Use Complete Body and Chassis Diagrams

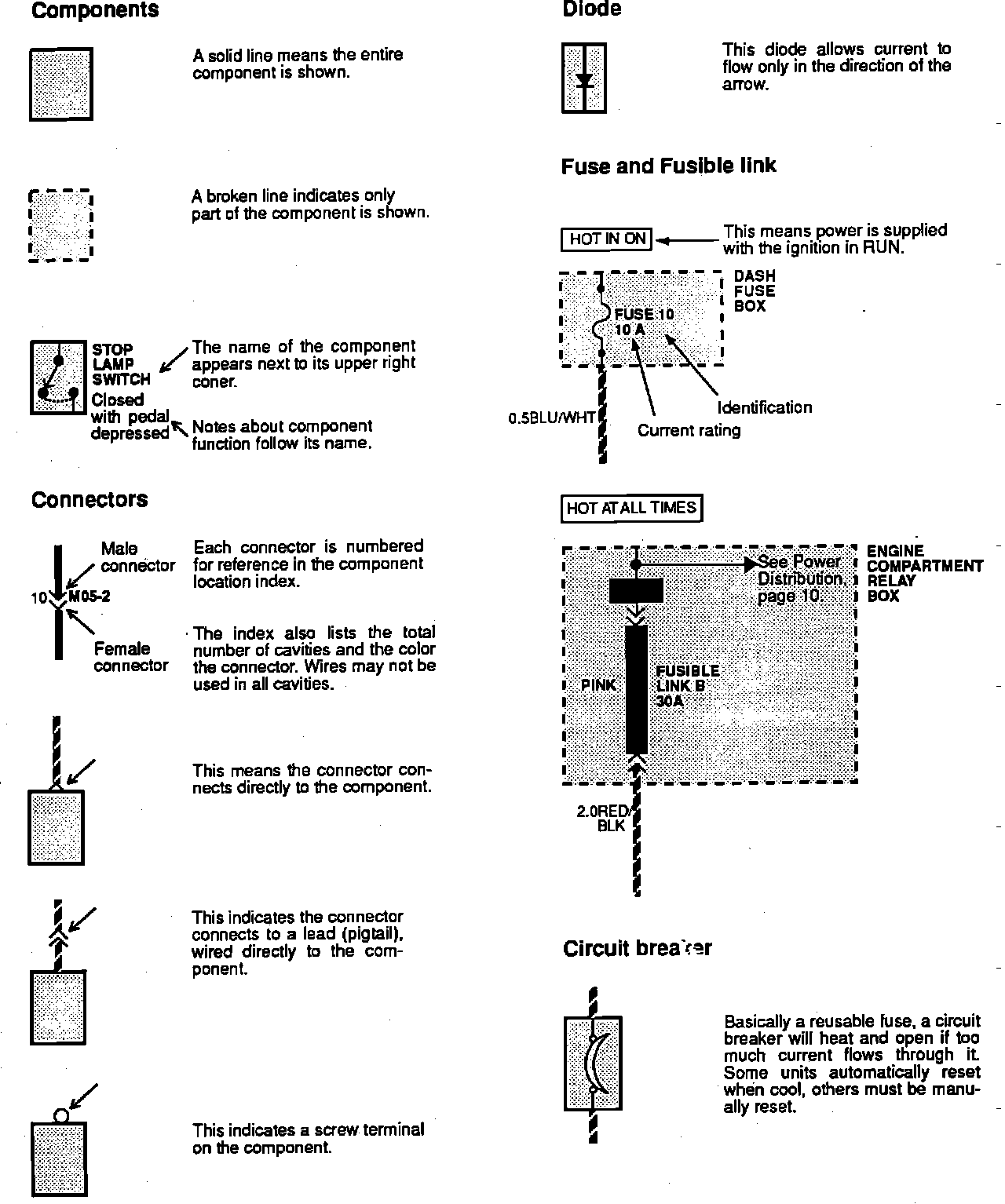

Symbol Identification - 1 of 2:

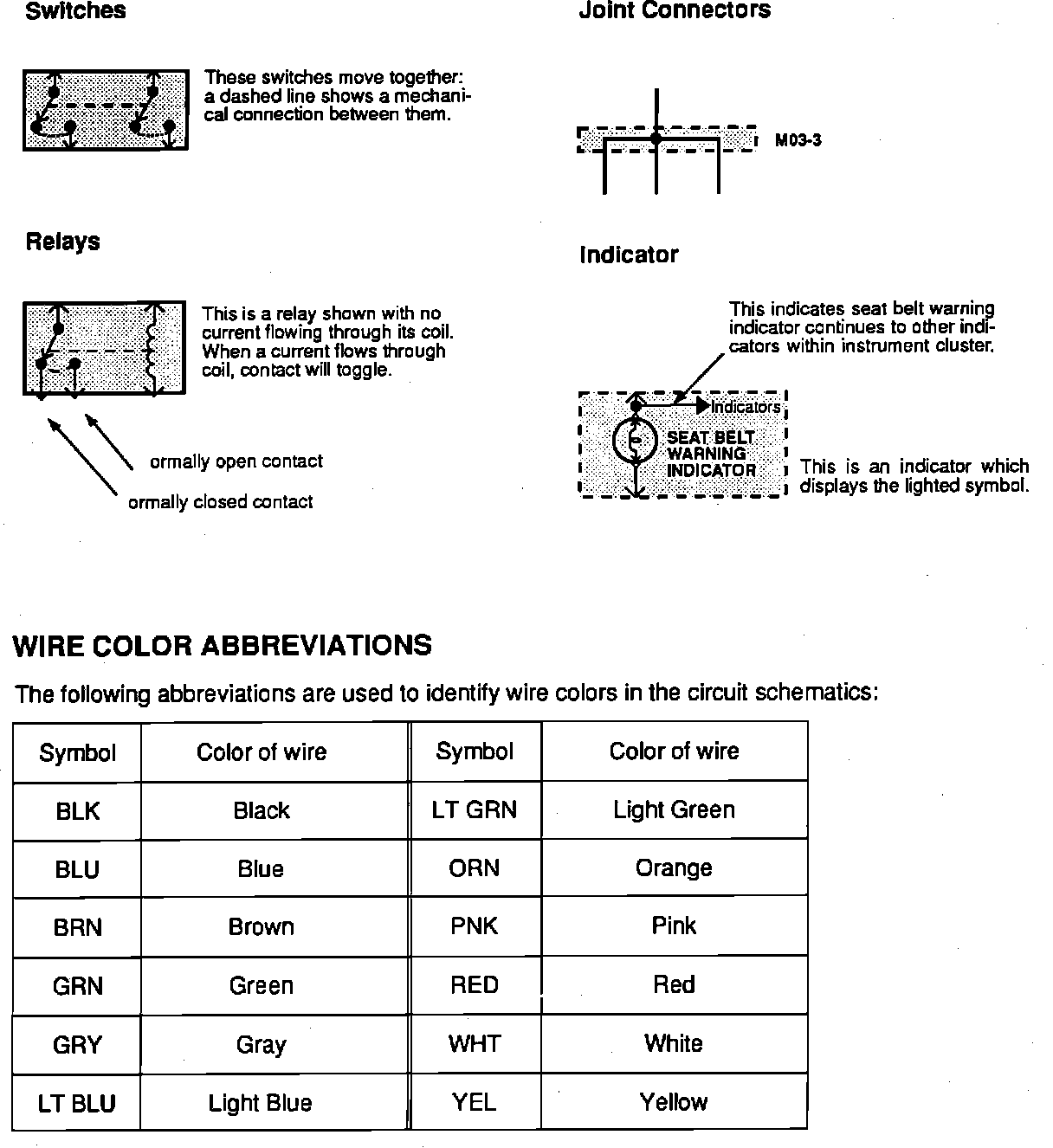

Key To Wiring Diagrams:

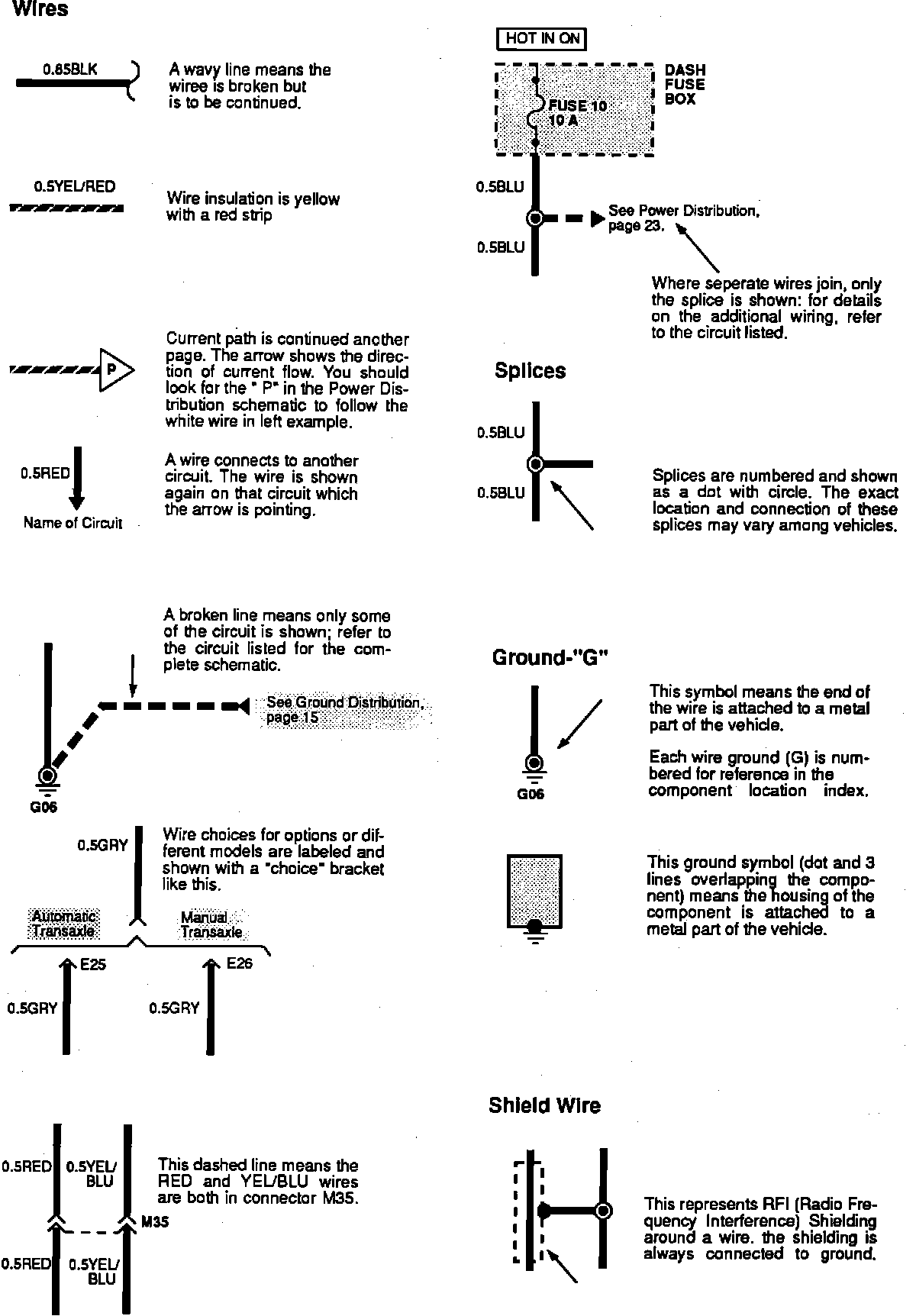

Key To Wiring Diagrams:
Key To Wiring Diagrams:

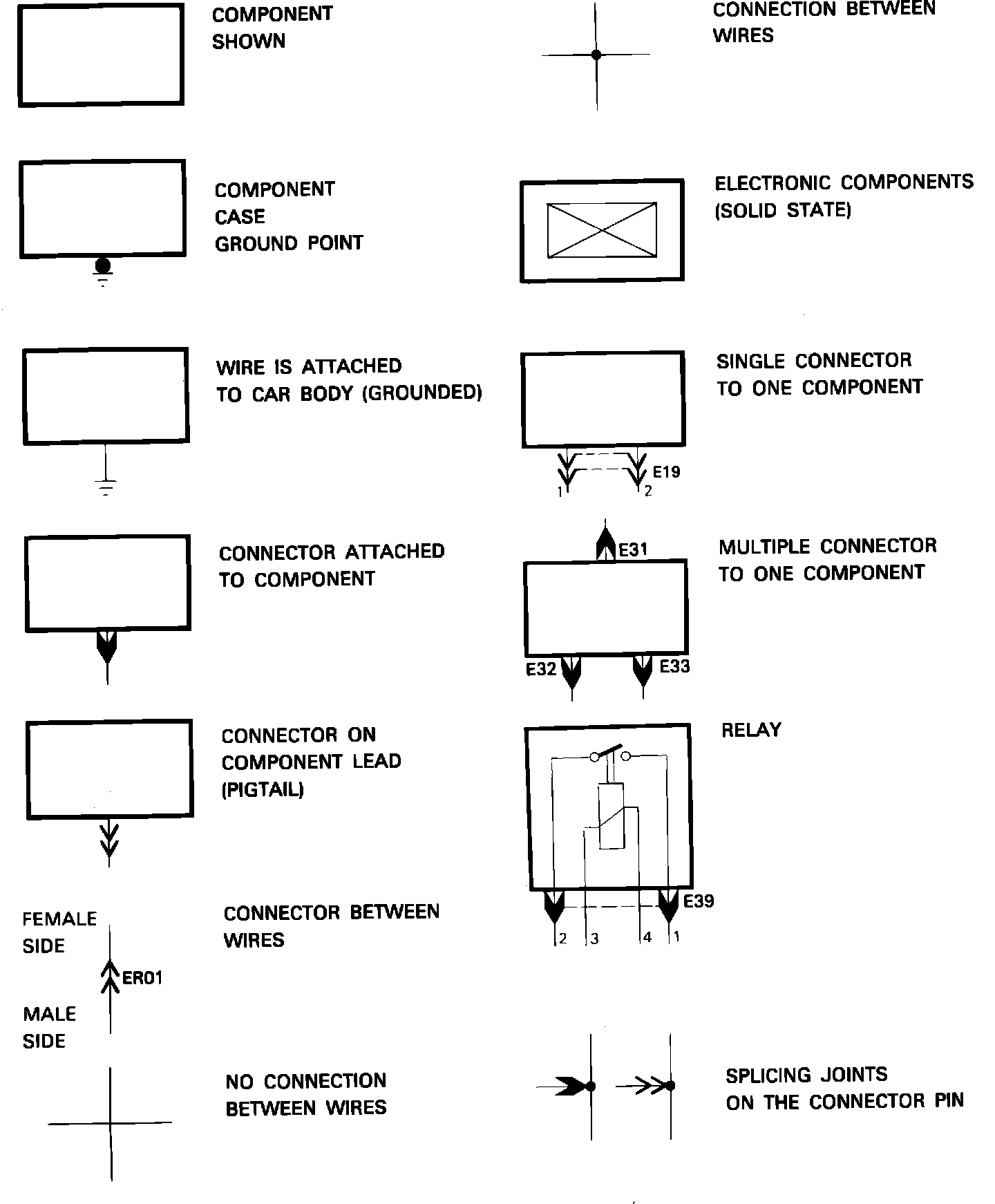

Electrical Symbols:
