Sensor Test

Intake Air Temperature Sensor Connector For Turbo Models:

1. Disconnect the Air-flow Sensor connector.
2. Measure the resistance using an ohmmeter connected to terminals # 6 and # 8.
Refer to SPECIFICATIONS/ELECTRICAL.

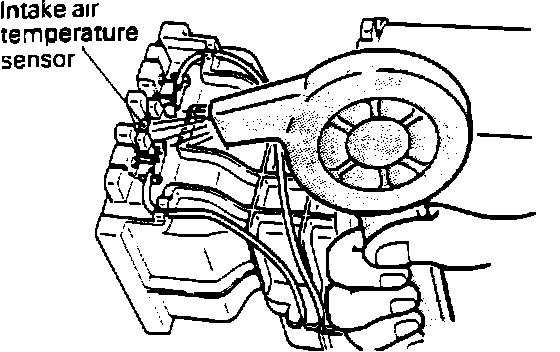

Using a Hair Dryer:

3. While heating the temperature sensor with a hair dryer, measure the resistance.
As the temperature increases, the resistance should decrease. Refer to SPECIFICATIONS/ELECTRICAL.
