Eagle
>>
1994
>>
Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Maintenance
>>
Fluids
>>
Refrigerant
>>
Technical Service Bulletins
>>
R-12 to R-134A A/C Adaptation Procedure
>>

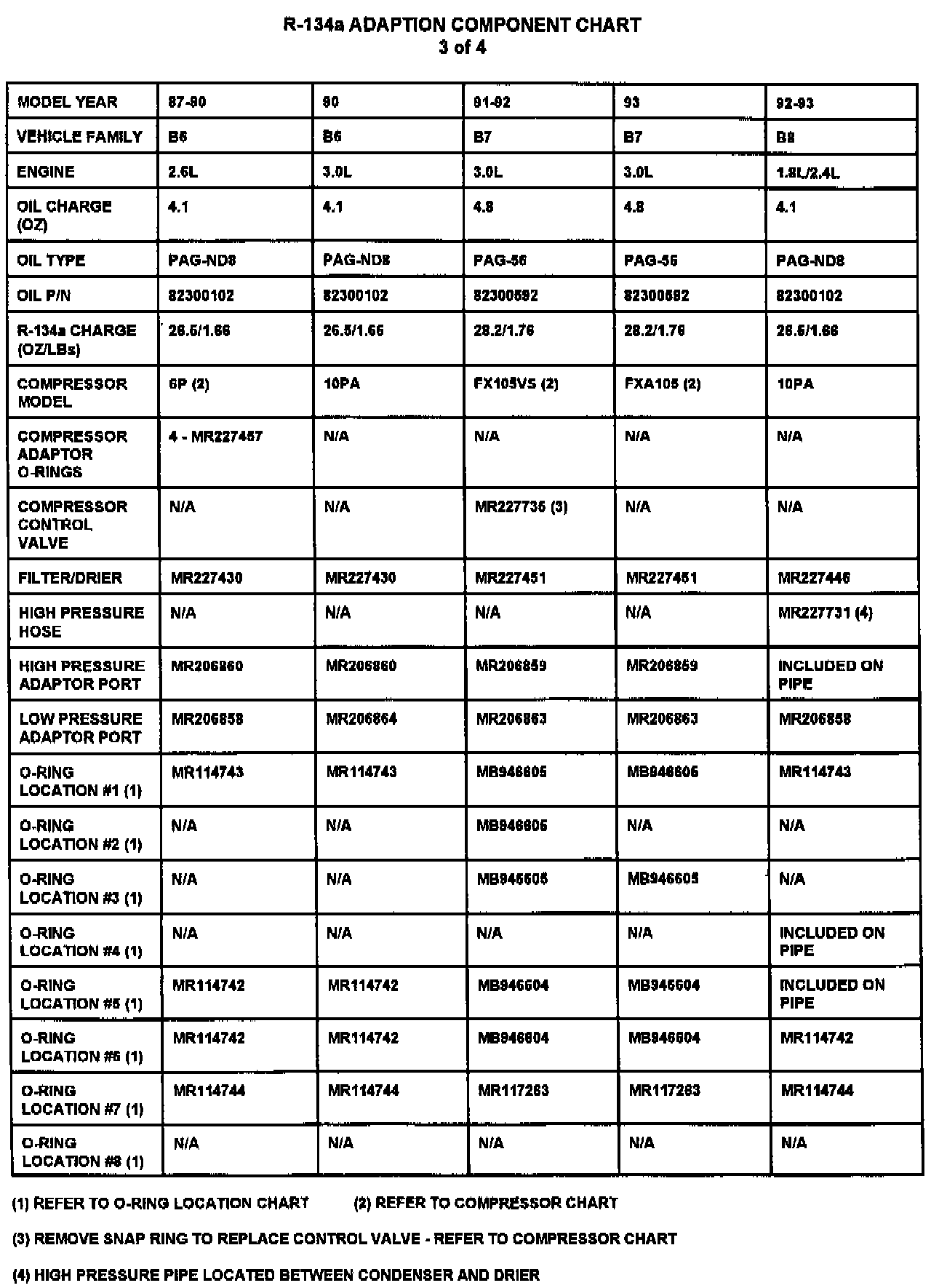

R-134A Adaption Component Chart (3 of 4)
R-134A Adaption Component Chart (3 of 4)
