Electrical Diagrams

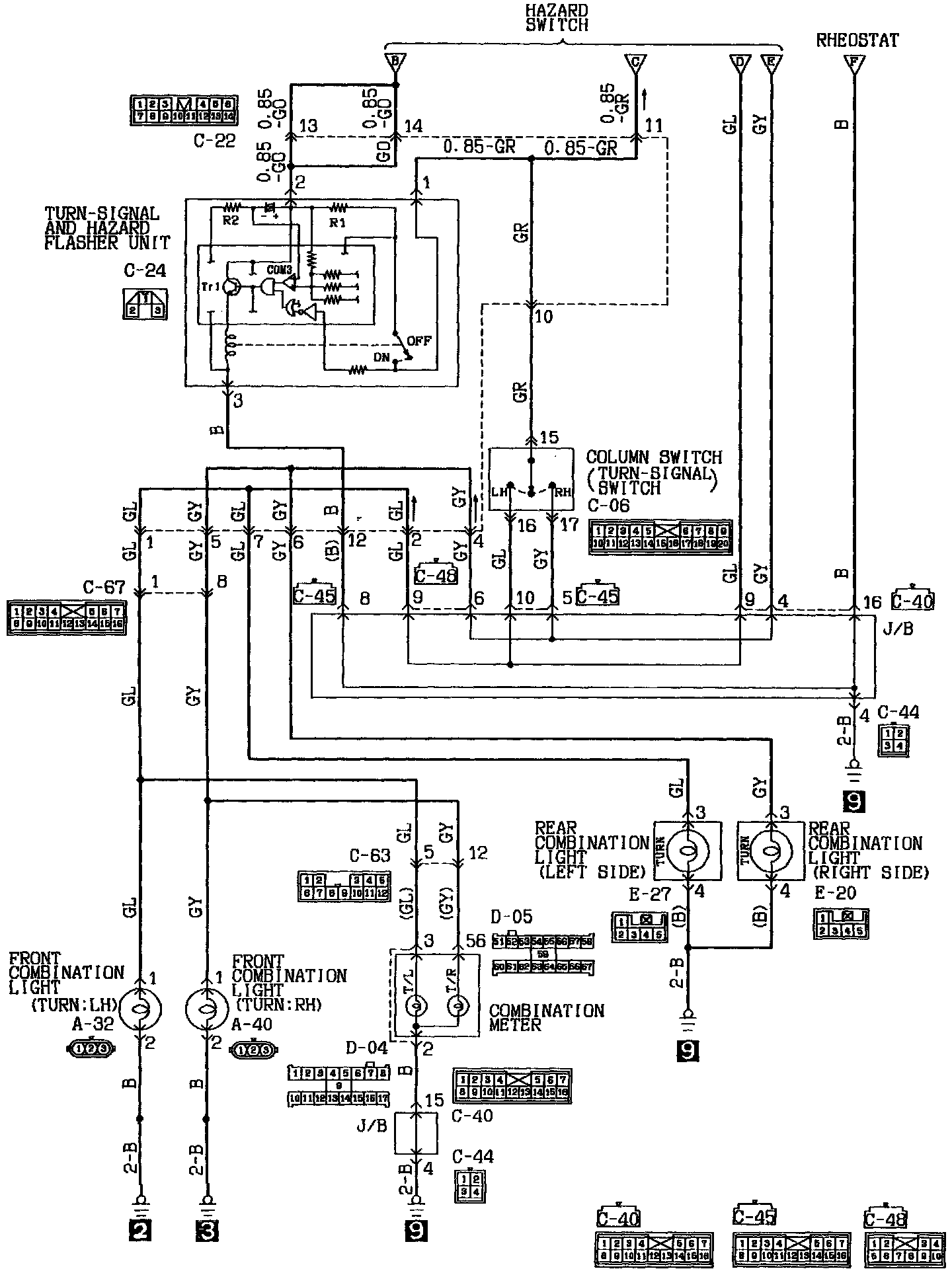

Turn Signal Light, And Hazard Light Circuit (Part 1 Of 2):

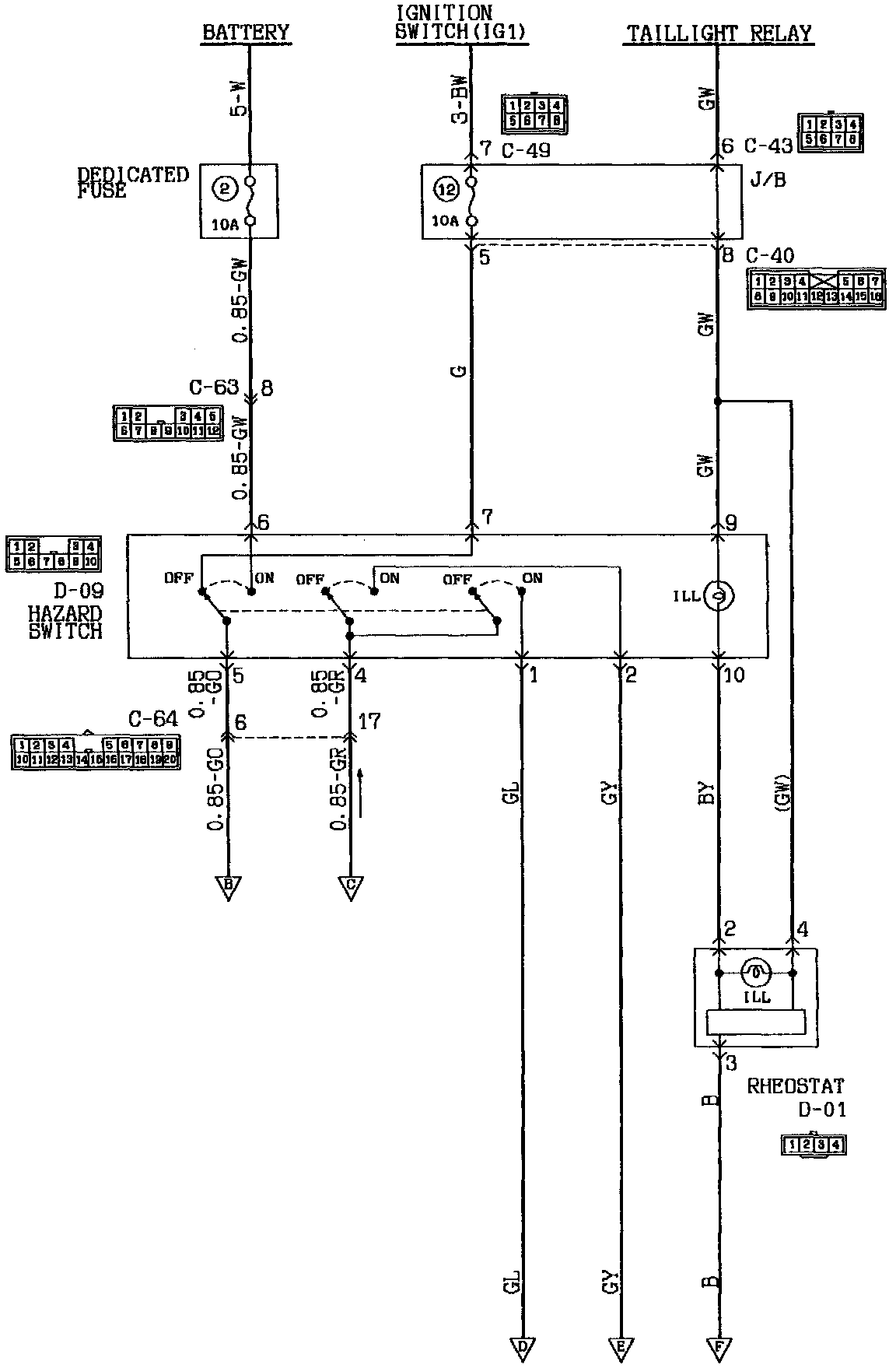

Turn Signal Light, And Hazard Light Circuit (Part 2 Of 2):
