Lighting and Horns: Testing and Inspection

Inspection Of Column Switch:

1. Remove the knee protector and the lower column cover.

2. Disconnect the column switch connector and check the continuity between the terminals for the switch.

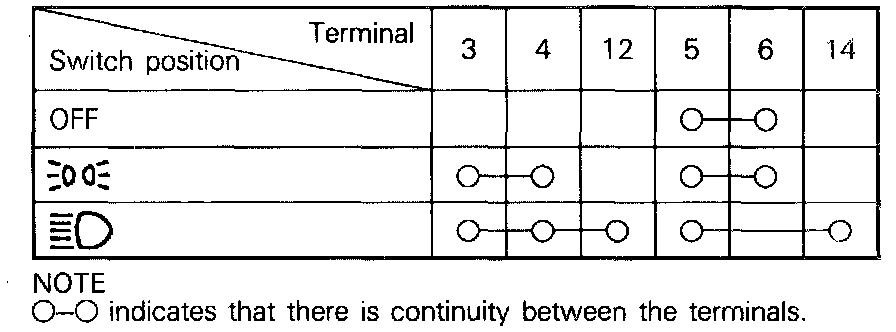

Lighting Switch Continuity Chart:

Operate the switch and check the continuity between the terminals.
