Marker Lamp: Service and Repair

Front Side Marker Light

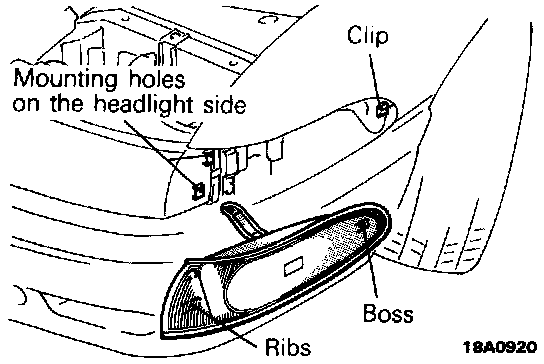

Installation Of Front Side Marker Light:

Insert the boss of the front side marker light into the clip areas of the front fender, and insert the ribs of the front side marker light into the mounting holes on the headlight side. Then, mount the front side marker light with the mounting screws.
