Horizontal & Vertical Adjustments

Vertical Adjusting:

VERTICAL ADJUSTING
Insert the screwdriver into the vertical adjusting hole. and turn it clockwise or counterclockwise to bring the bubble of the vertical angle gauge to the center.
NOTE:
The beam angle will change about 0°19' with one mark.

Horizontal Adjusting:

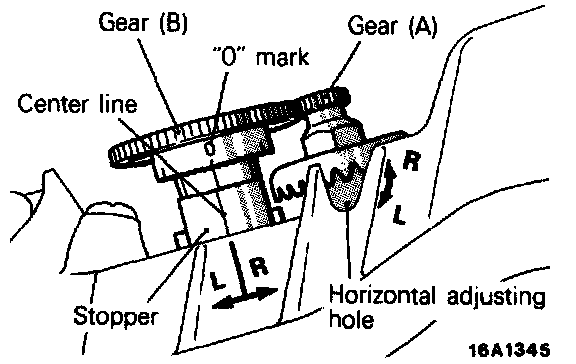

HORIZONTAL ADJUSTING
Insert a screwdriver in the horizontal adjusting hole and turn it until the "0" mark and the center line of stopper are in alignment.
NOTE:
The beam angle will change about 0°36' with one mark.
