With Daytime Running Lamps
With Daytime Running Lamps

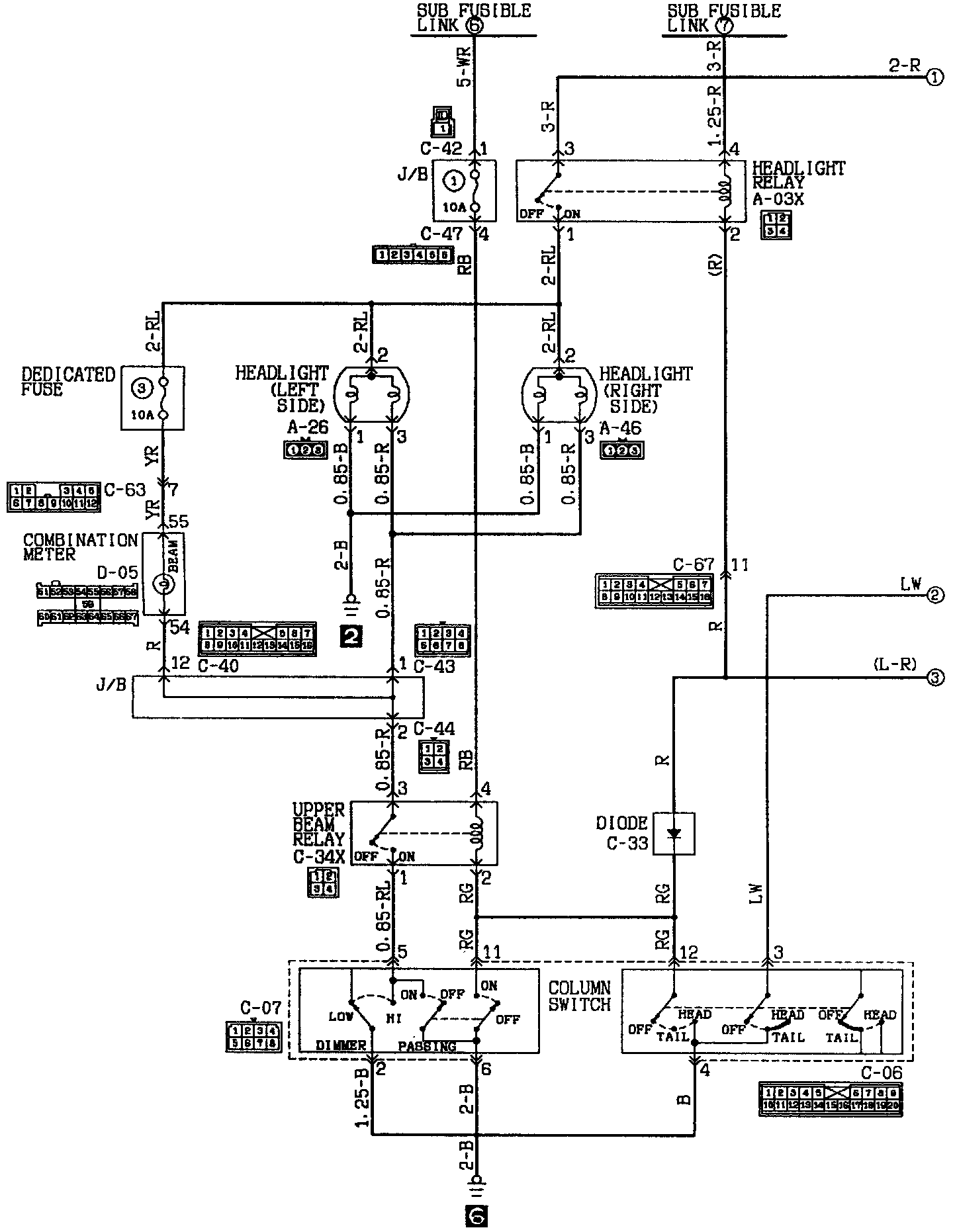

Headlight Circuit <Vehicles With Daytime Running Light> (Part 2 Of 2):
Headlight Circuit <Vehicles With Daytime Running Light> (Part 1 Of 2):
