Without Daytime Running Light

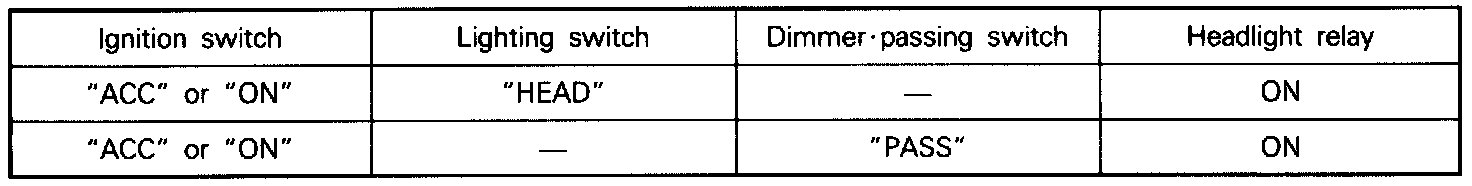

Conditions For Switch-ON Of Headlight Relay:

Low-beam Operation
^ The headlight relay is switched ON when the lighting switch is set to the "HEAD" position.
^ The low beam of the headlights will illuminate in this condition.

High-beam Operation

^ The headlight relay is switched ON when the lighting switch is set to the "HEAD" position.
^ The high beam of the headlights will illuminate when, in this condition, the dimmer/passing switch is set to the "HI" position.

High-Beam Indicator Light
^ This indicator illuminates during use of the high beam of the headlights, and when the passing signal (high beam) is activated, thus indicating that the headlights' high beam is illuminated.
