Fog/Driving Lamp: Service and Repair

Fog Light Aiming

Fog Light Aiming:

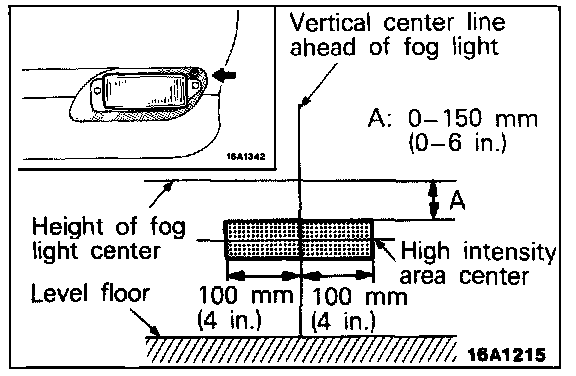

1. Place vehicle on a known level floor 7.6 m (25 feet) from aiming screen or light colored wall.

2. Use adjusting screw to adjust the top end of high intensity zone to dimension A.
