Instrument Cluster / Carrier: Service and Repair

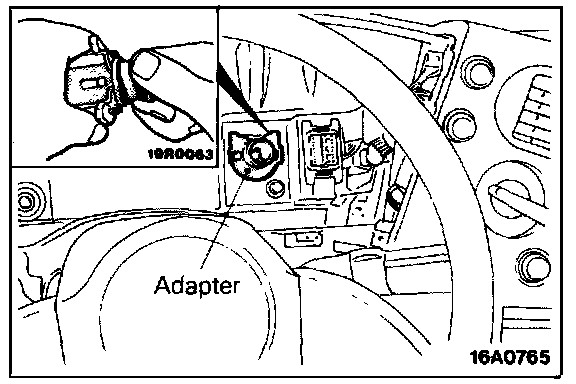

Removal Of Adapter:

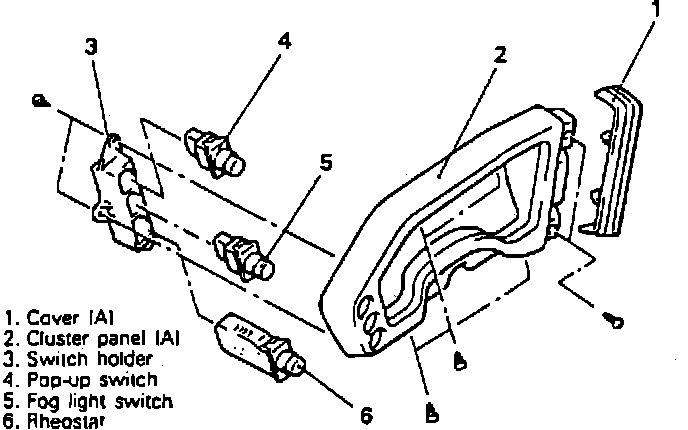

Fig. 7 Replacing Instrument Cluster:

Remove instrument cluster in numbered sequence, noting the following:
1. When removing adapter, disconnect speedometer cable at transaxle end of cable.
2. To remove adapter, pull speedometer cable slightly toward vehicle interior, then release lock by turning adapter.
3. Reverse procedure to install.
