Circuit Inspection

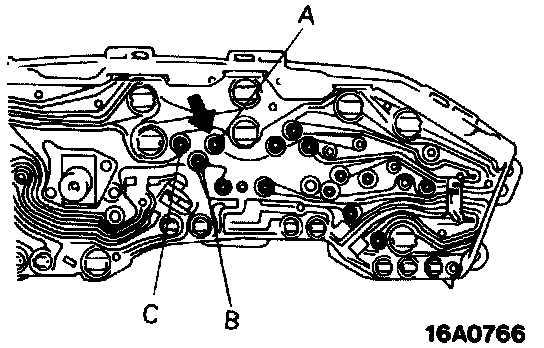

Fuel Gauge Circuit Inspection:

1. Remove the IG terminal screw from area A.

2. Measure resistance between terminals with circuit tester.
Standard value:
A-B Approx. 230 ohms
A-C Approx. 102 ohms
B-C Approx. 102 ohms
