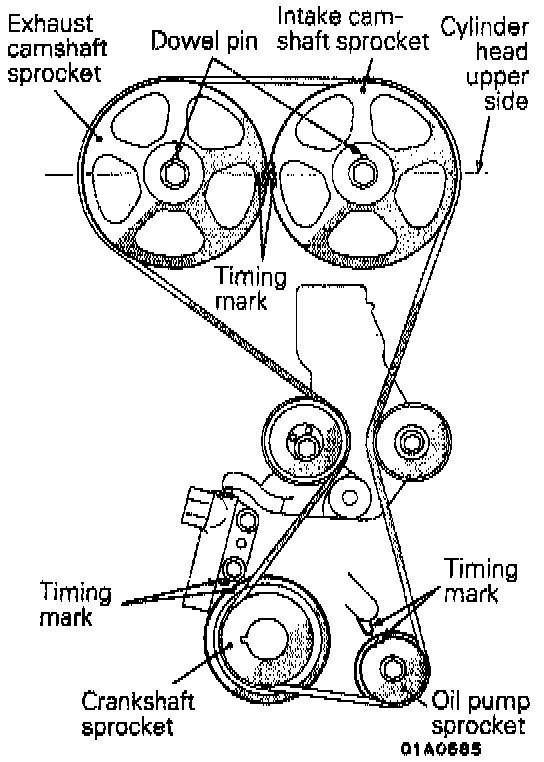

Timing Component Alignment Marks: Locations

Timing Marks:

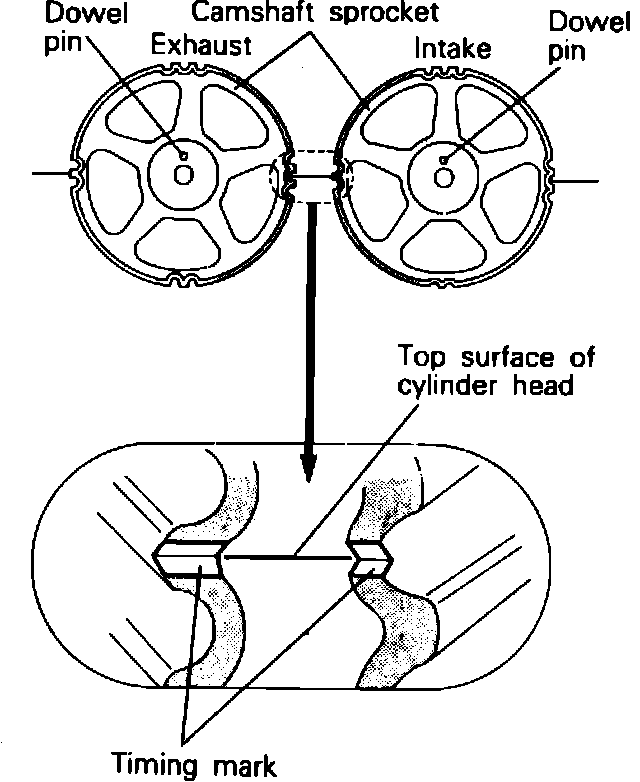

Fig. 59 Aligning Exhaust & Intake Camshaft Sprocket Timing Marks.:

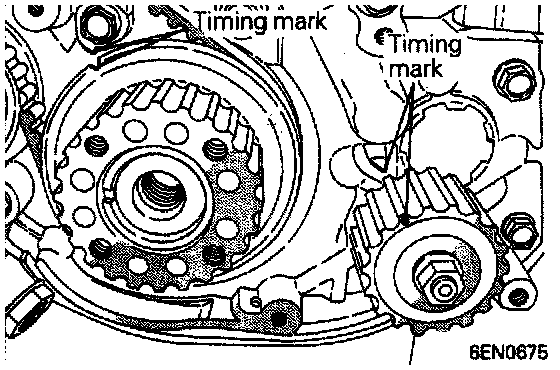

Crankshaft Timing Mark:

CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

For complete Timing Belt Removal and Installation information:Service and Repair
