Service Manual - Procedure Revisions

NO.: 26-05-93

GROUP: Miscellaneous

DATE: Dec. 31, 1993

SUBJECT:
Service Manual Revisions - Engine Service

MODELS:
1993 (BD) LASER/TALON

DISCUSSION:

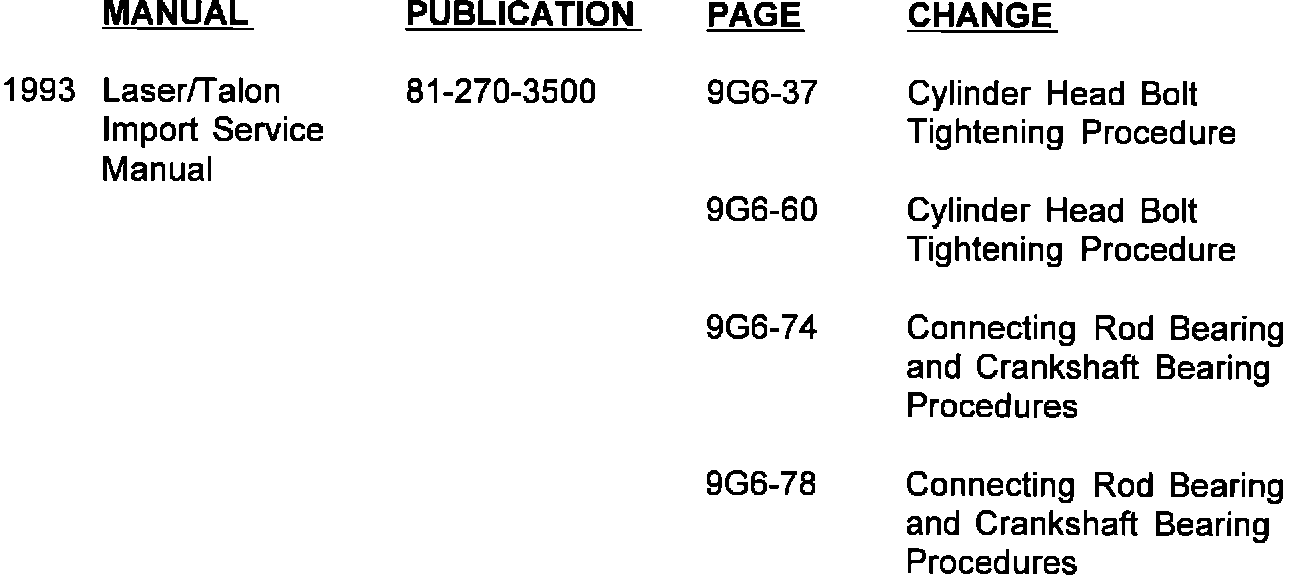

This Technical Service Bulletin notes revised service manual procedures for engine service.

POLICY: Information Only

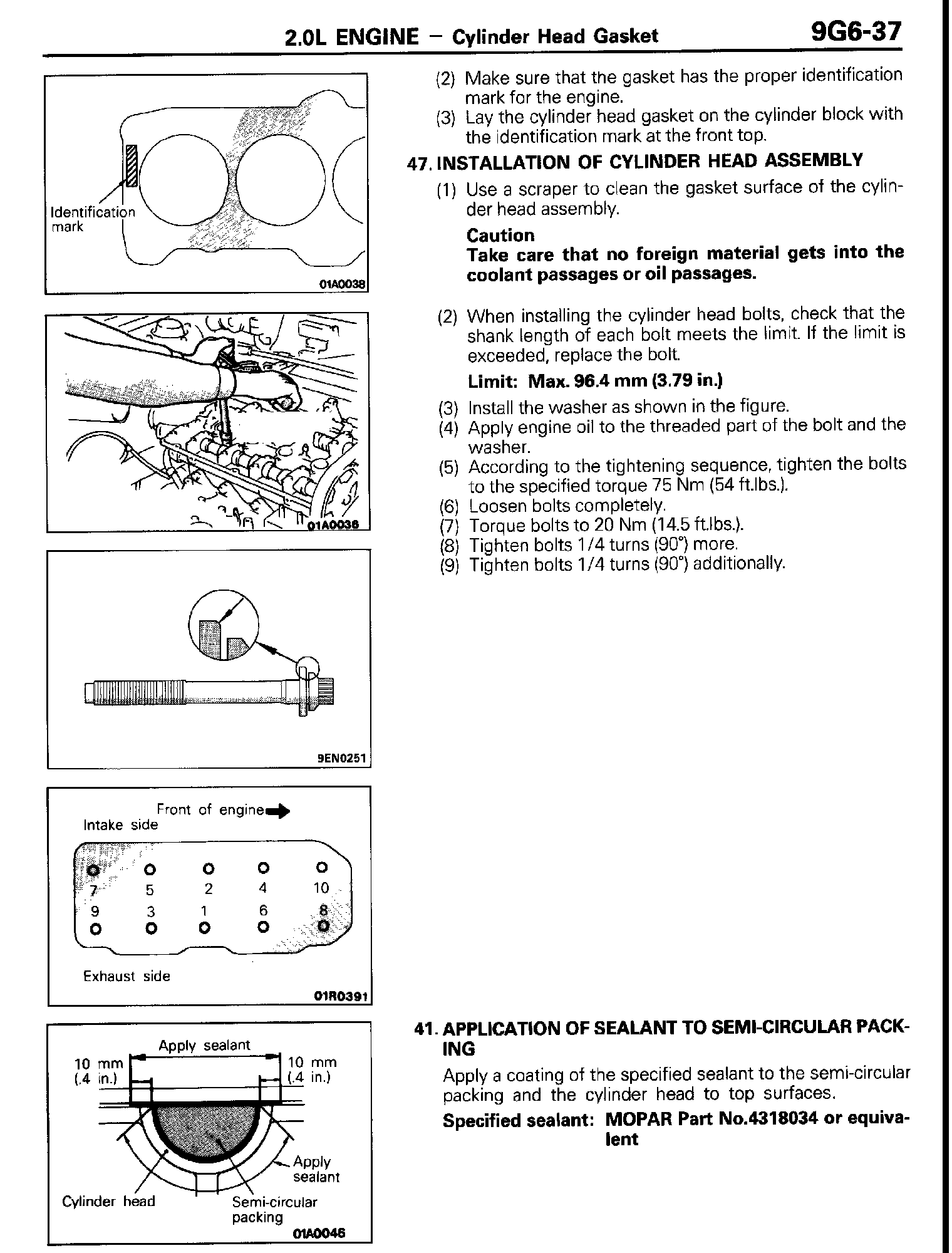

1.8L Engine - Timing Belt 9G3-37

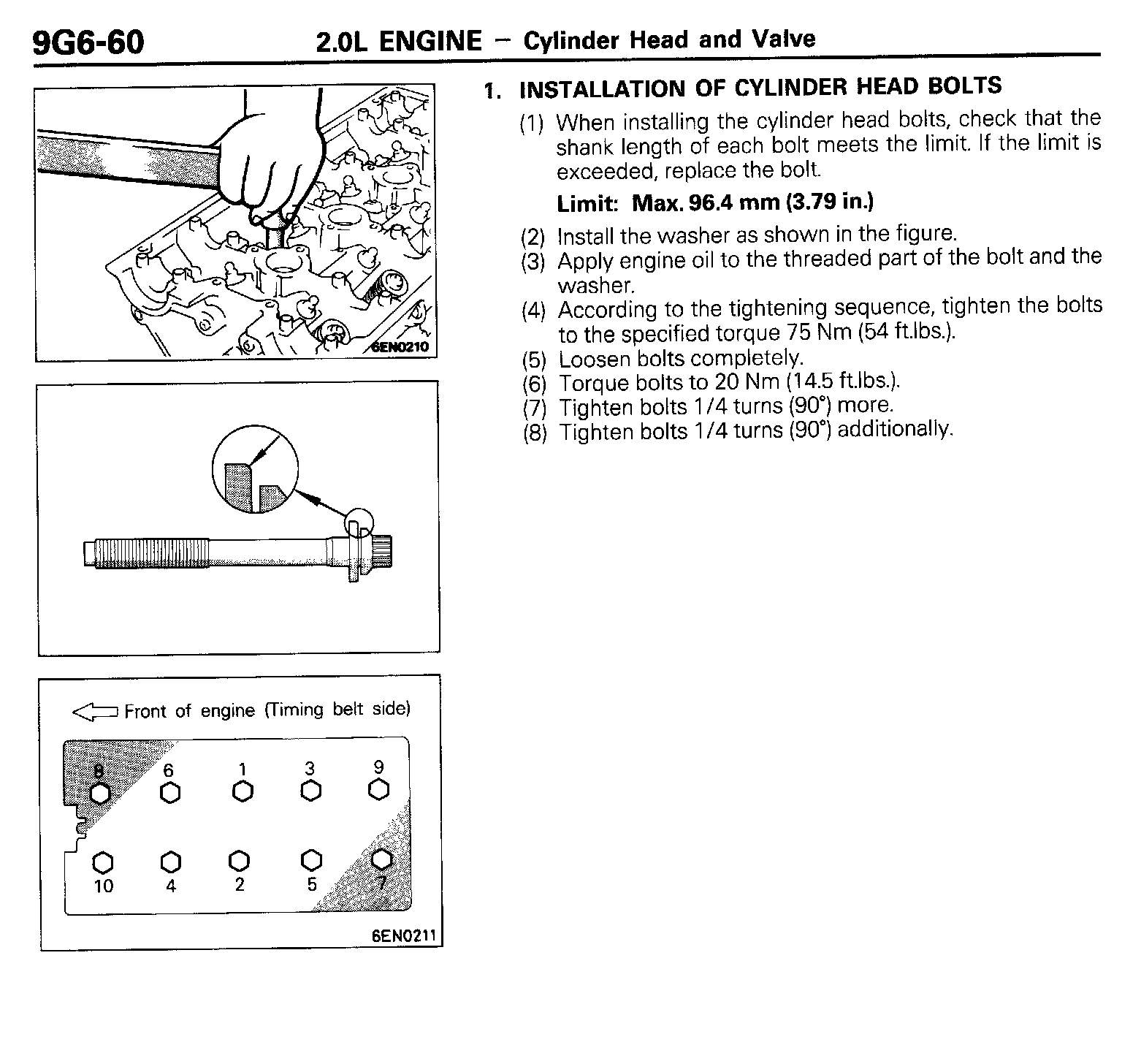

1.8L Engine - Piston and Connecting Rod 9G3-60

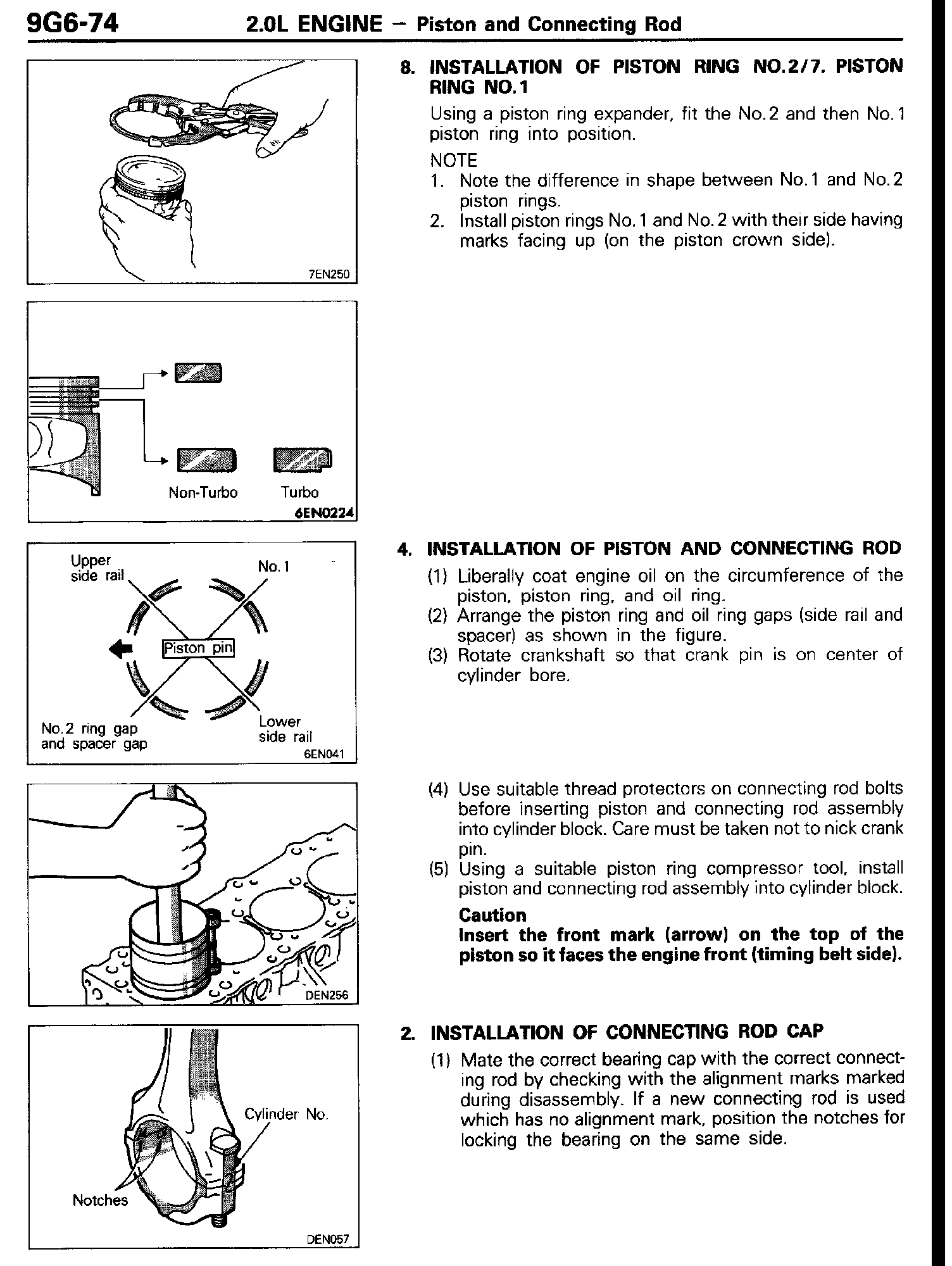

2.0L Engine - Piston and Connecting Rod 9G6-74

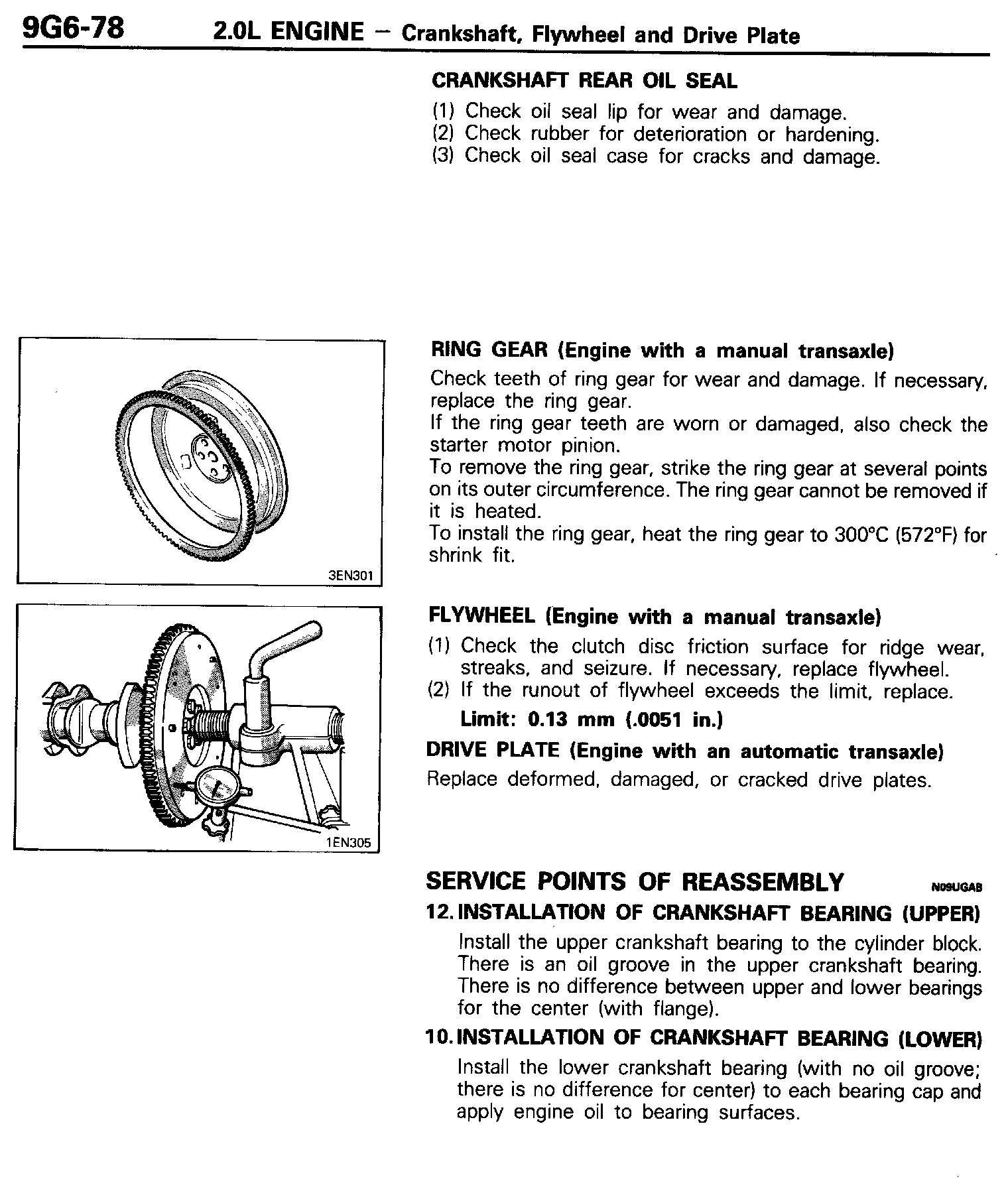

2.0L Engine - Crankshaft, Flywheel and Drive Plate 9G6-78
