Condenser Fan Motor Test

1. Disconnect fan motor electrical connector.

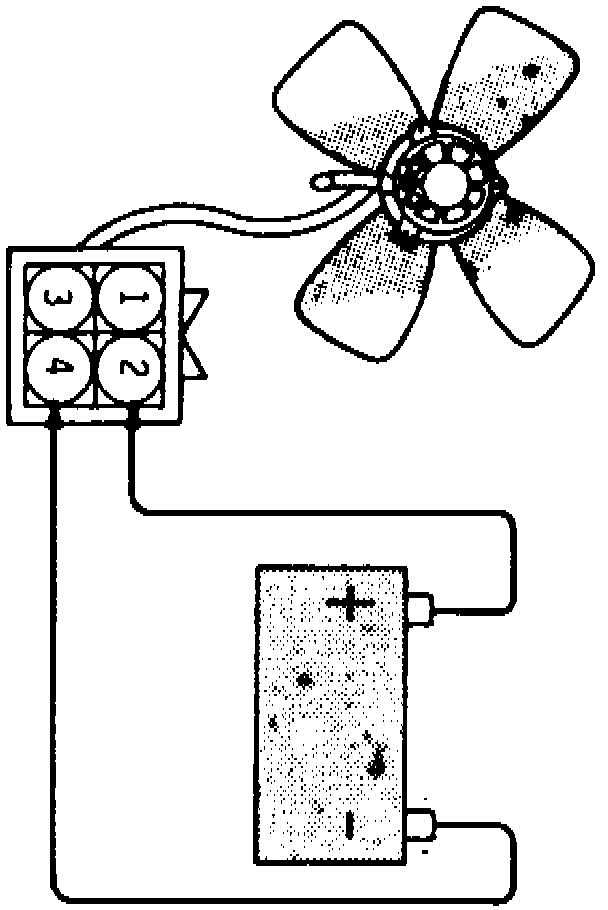

Fan Motor Terminal Identification,:

2. Ensure fan motor operates when battery voltage is applied to terminal 3 and terminal 4 is grounded.
3. If motor does not operate as described, replace motor.
