Unit Inspection

Engine Coolant Temperature Gauge Unit Inspection: Step (1):

To check, remove engine coolant temperature gauge unit from intake manifold.

Standard Resistance of Engine Coolant Temperature Gauge Unit

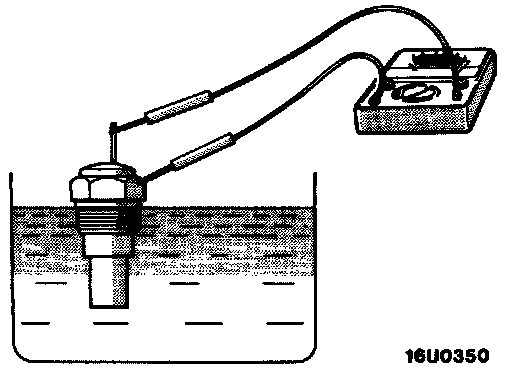

1. Immerse unit in 70°C (158°F) water to measure resistance.
Standard value: 104 +/- 13.5 ohms

Engine Coolant Temperature Gauge Unit Inspection: Step (2):

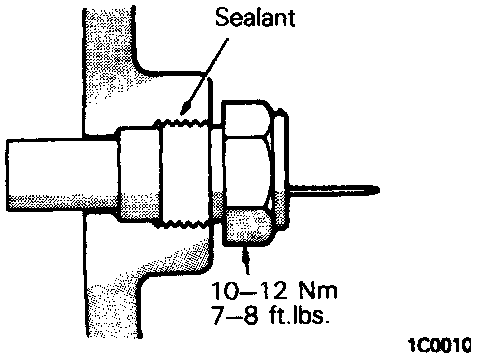

2. After checking. apply the specified sealant around the thread of engine coolant temperature gauge unit and install on the intake manifold.
Specified sealant: MOPAR Part No.4318034 or equivalent
