D Connectors - Instrument Panel and Floor Console

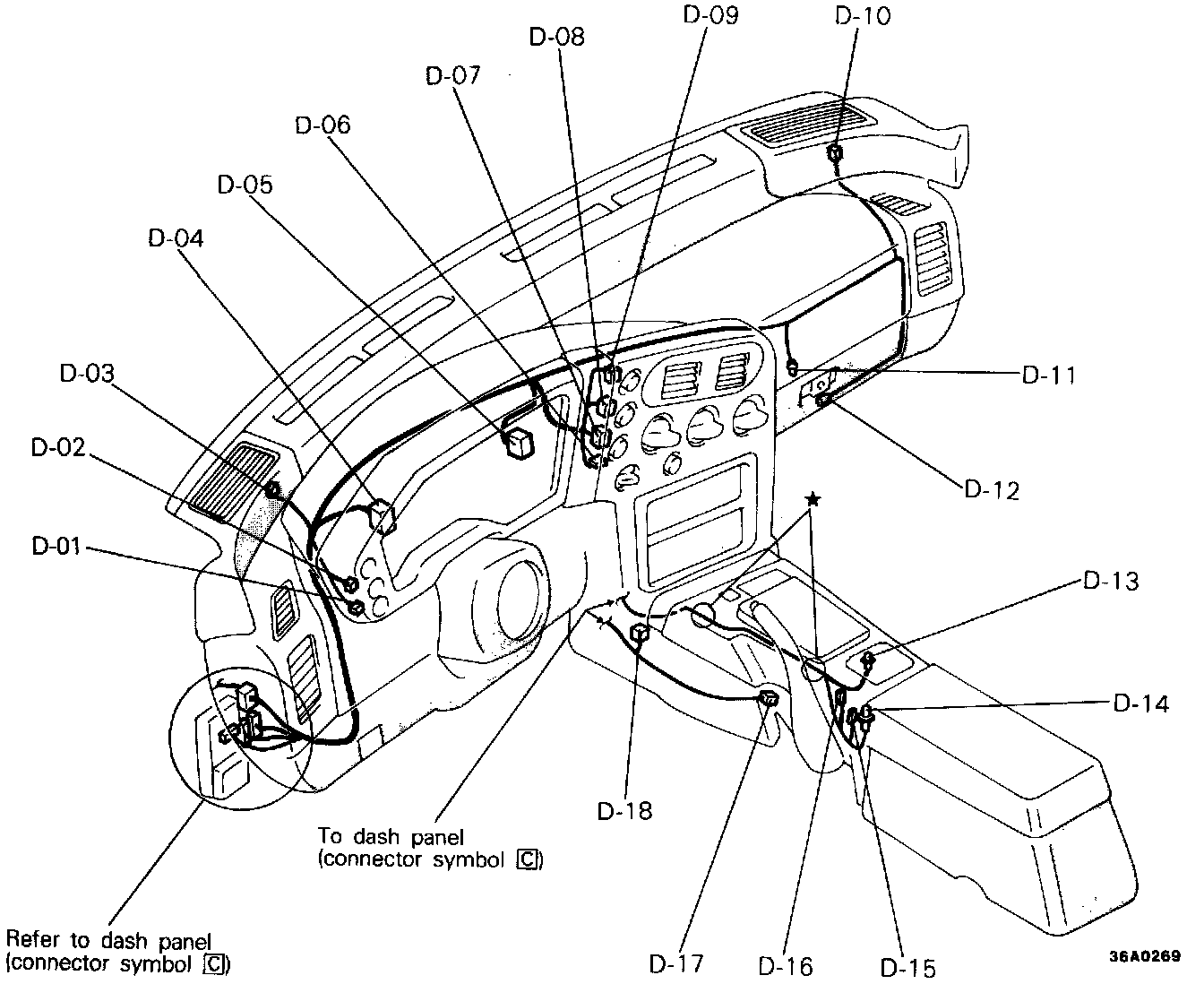

D Connectors: Instrument Panel And Floor Console:

D-01 Rheostat
D-02 Fog light switch
D-03 Front speaker (Left side)
D-04 Combination meter
D-05 Combination meter
D-06 Heater control panel illumination light
D-07 Rear wiper and washer switch
D-08 Defogger switch
D-09 Hazard switch
D-10 Front speaker (Right side)
D-11 Glove compartment light
D-12 Glove compartment light switch
D-13 Ashtray illumination light
D-14 Cigarette lighter illumination light
D-15 Cigarette lighter (+)
D-16 Cigarette lighter (-)
D-17 Overdrive switch and automatic transaxle selector lever position illumination light
D-18 Power/Economy changeover switch

Remark:
The mark "STAR" shows the standard mounting position of wiring harness.
