Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Wiper and Washer Systems
>>
System Diagram
>>

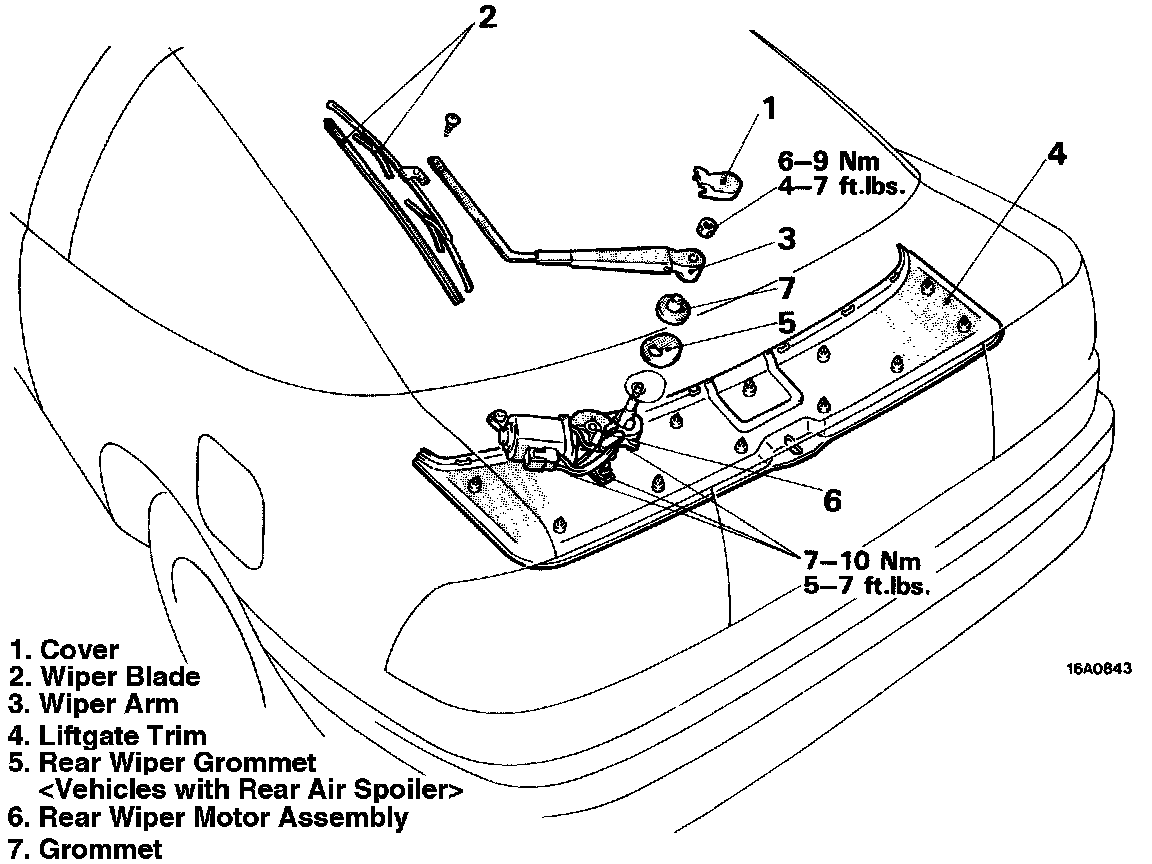

Rear Wiper & Washer System
Rear Wiper & Washer System
Rear Wiper Removal And Installation:
