Part 1 of 2

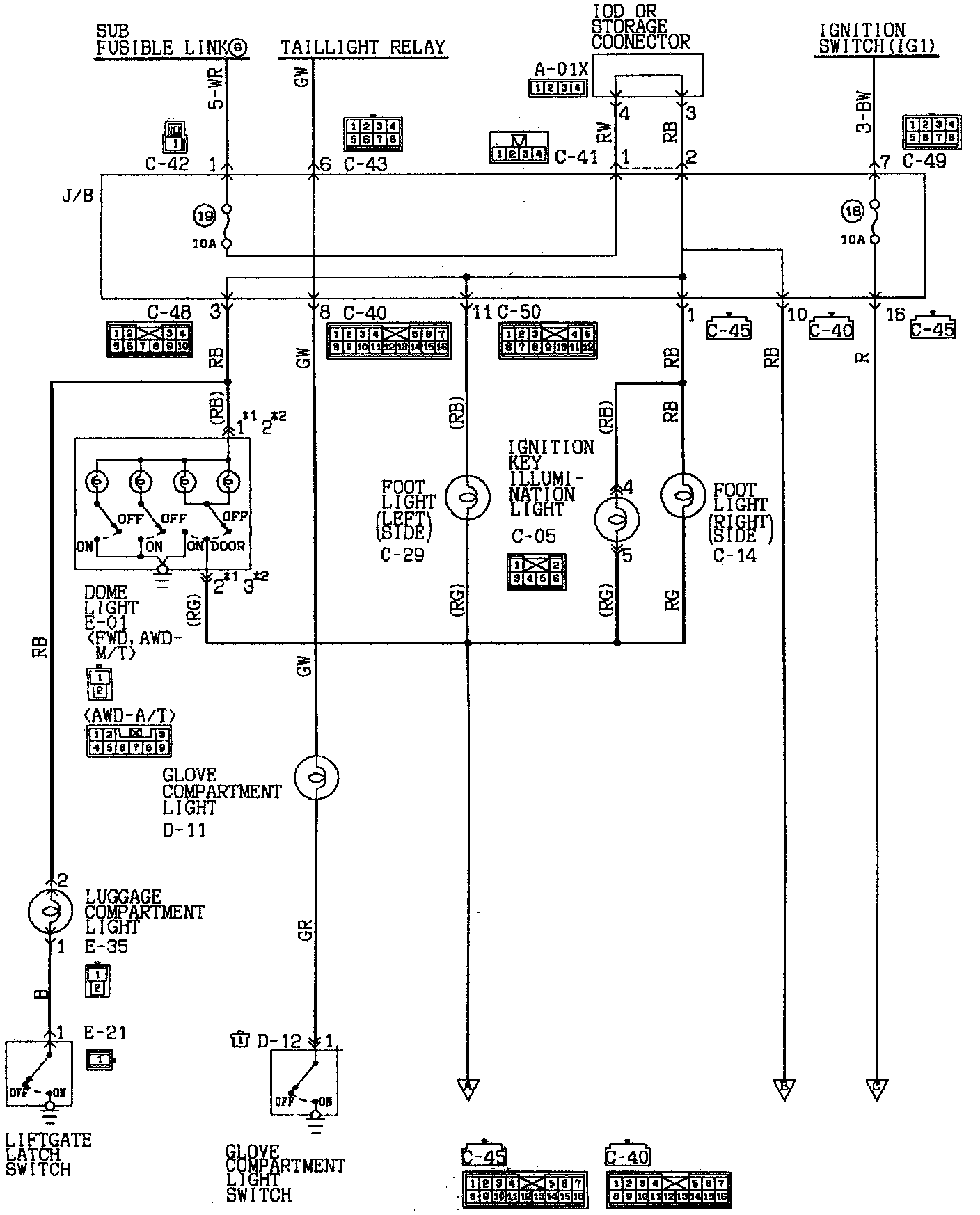

Dome Light, Ignition Key Illumination Light, Foot Light, Glove Compartment Light, Door-Ajar Warning Light, And Luggage Compartment Light Circuit (Part 1 Of 2):

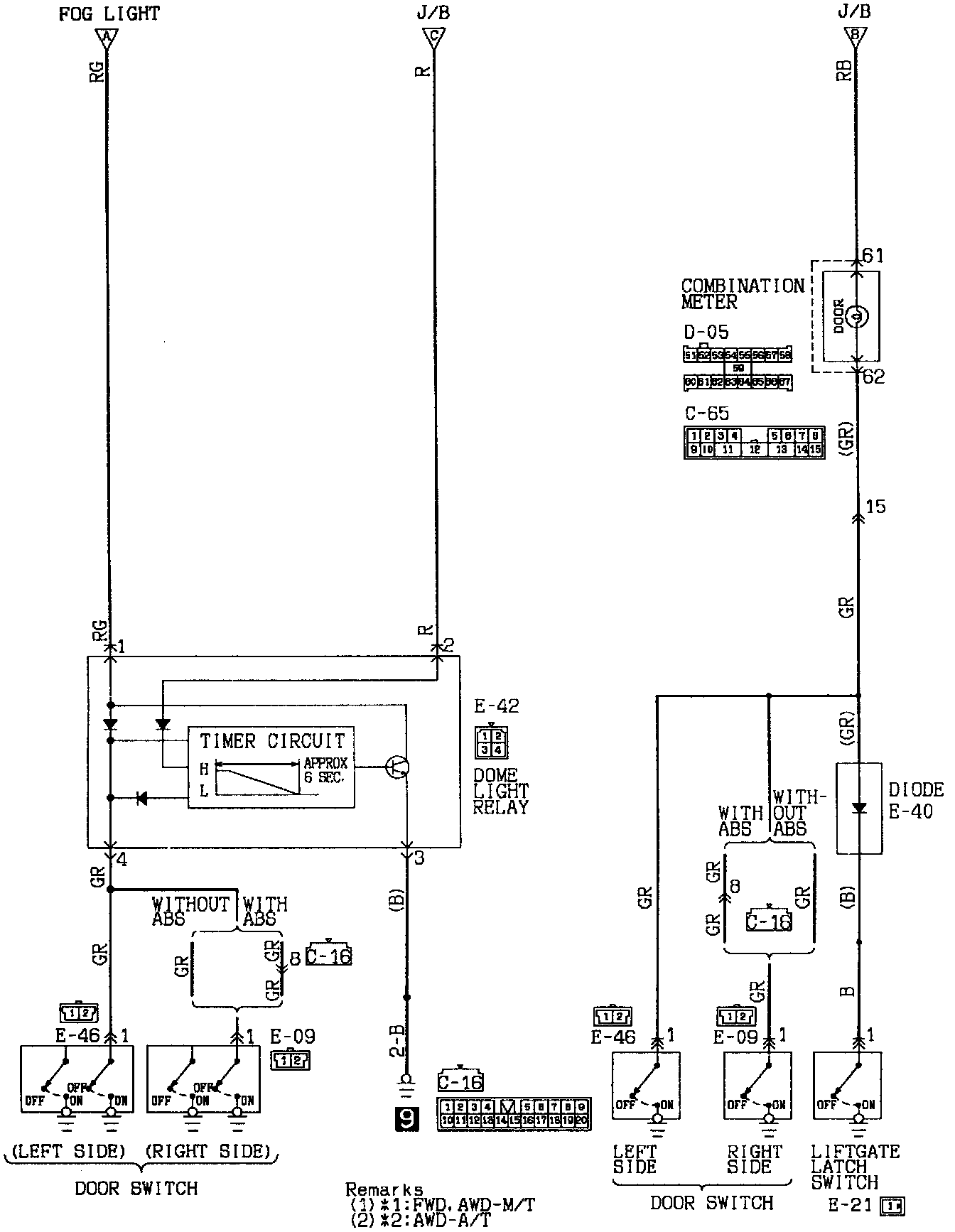

Dome Light, Ignition Key Illumination Light, Foot Light, Glove Compartment Light, Door-Ajar Warning Light, And Luggage Compartment Light Circuit (Part 2 Of 2):
