Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
With Manual Transmission
With Manual Transmission

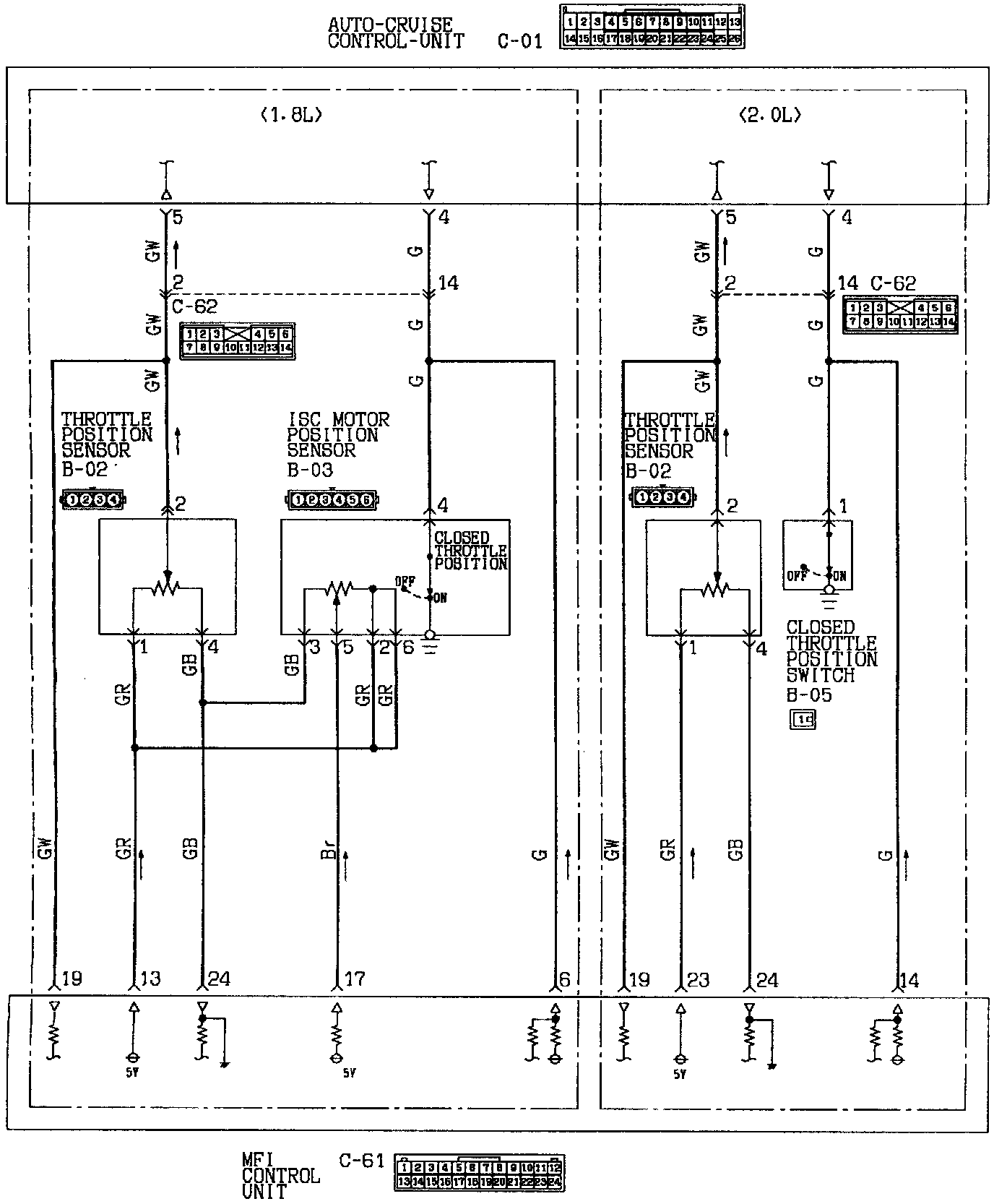

Auto-Cruise Control Circuit <M/T> (Part 1 Of 3):

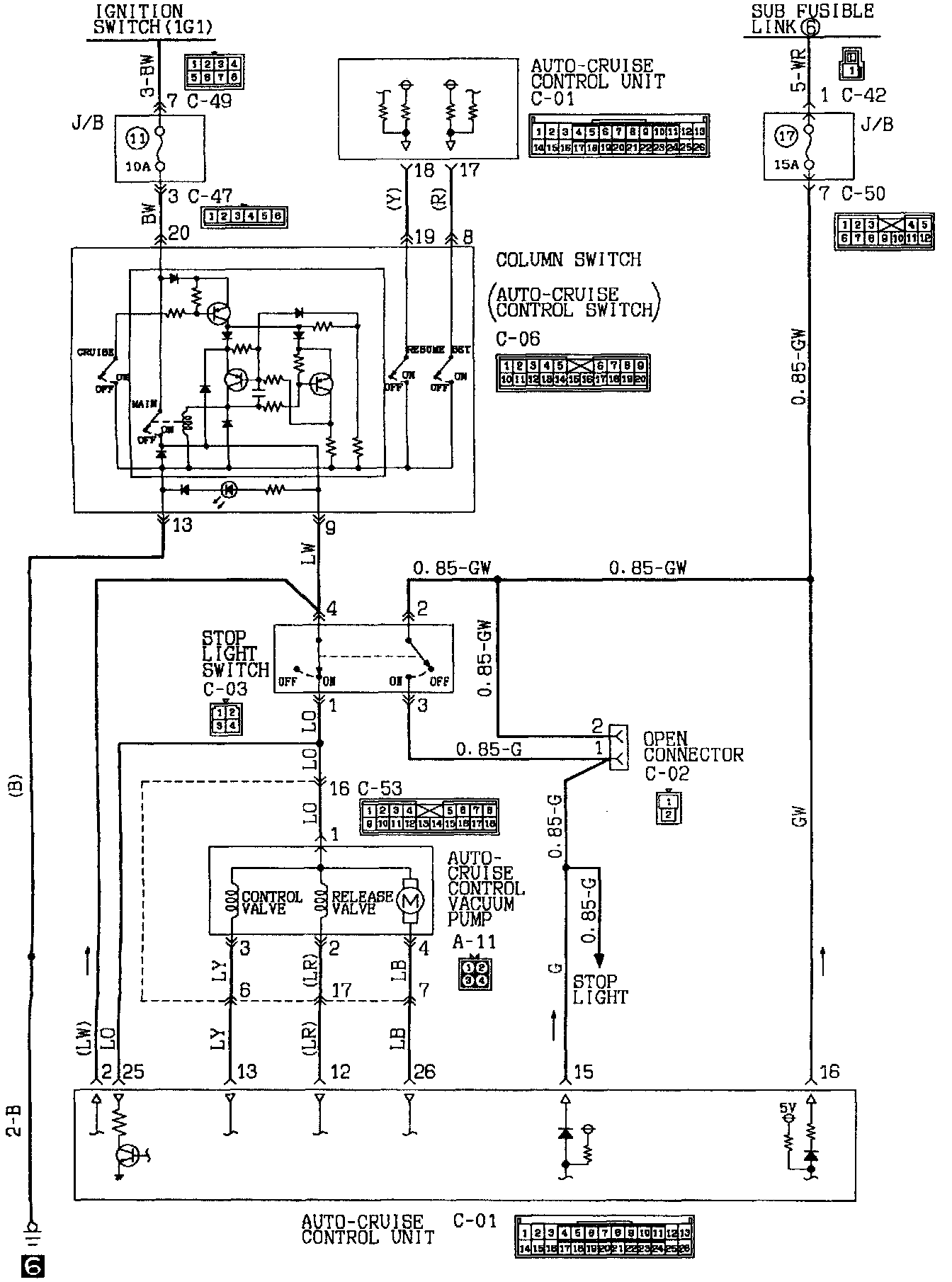

Auto-Cruise Control Circuit <M/T> (Part 2 Of 3):

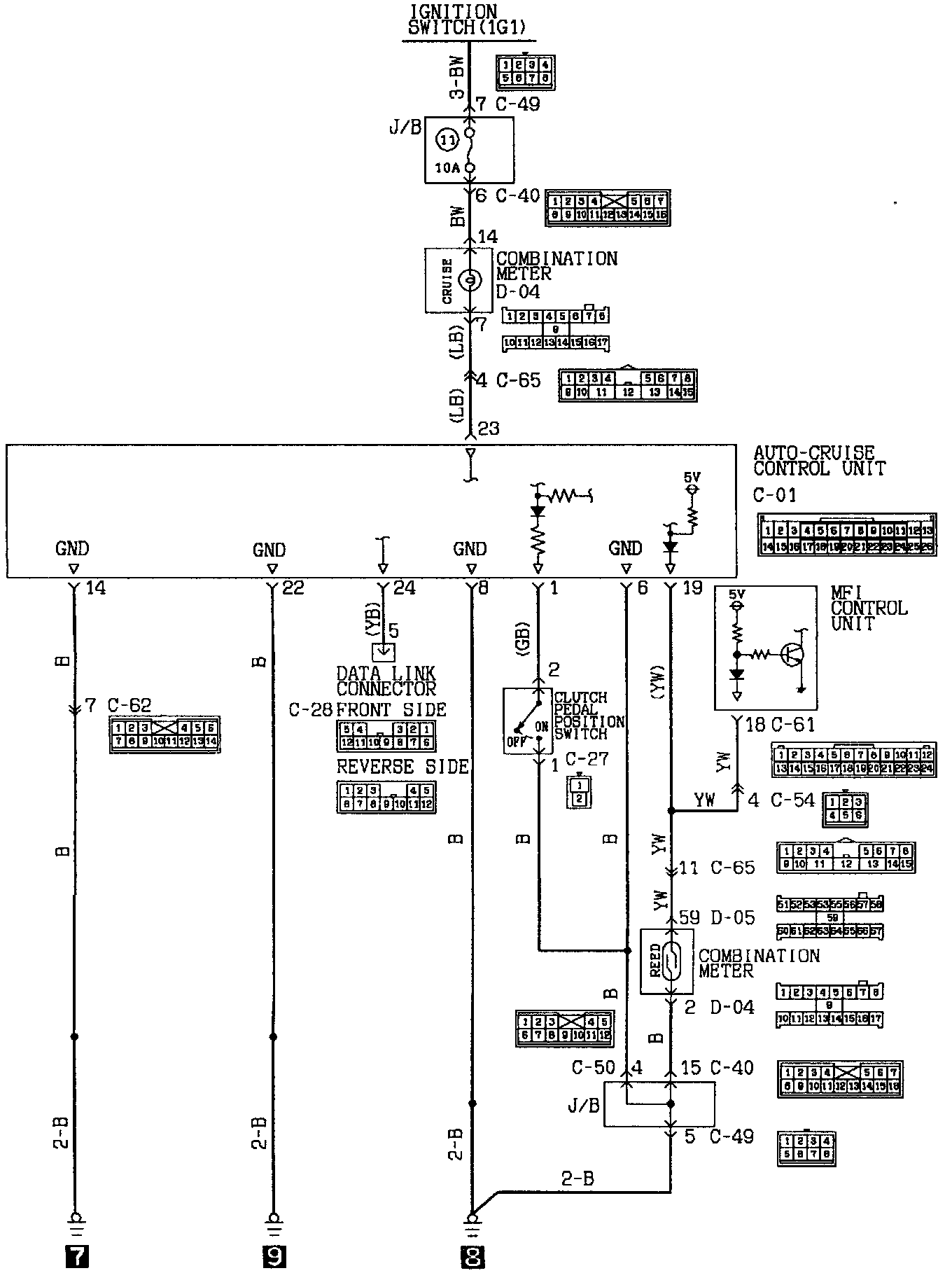

Auto-Cruise Control Circuit <M/T> (Part 3 Of 3):
