With Automatic Transmission

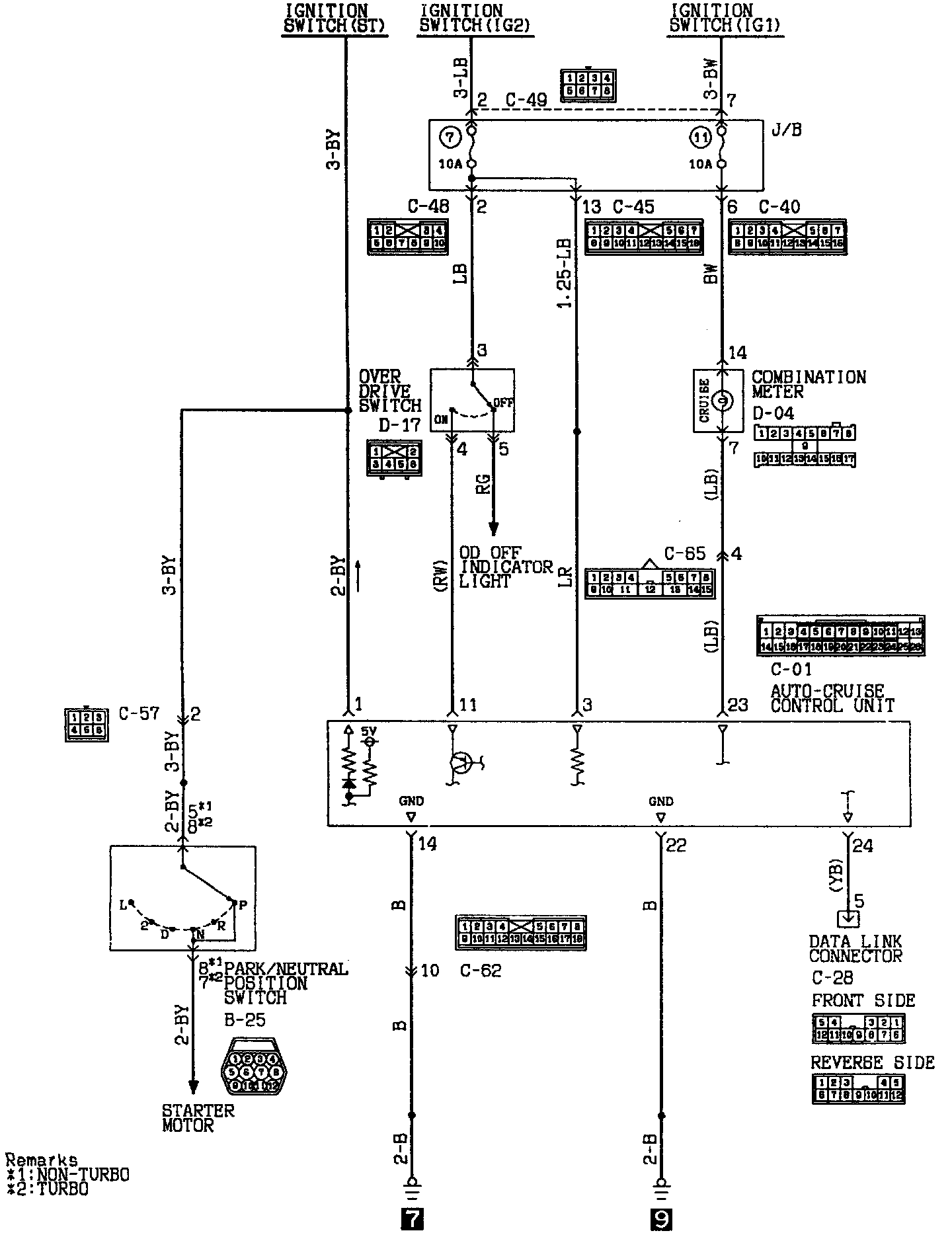

Auto-Cruise Control Circuit <A/T> (Part 1 Of 4):

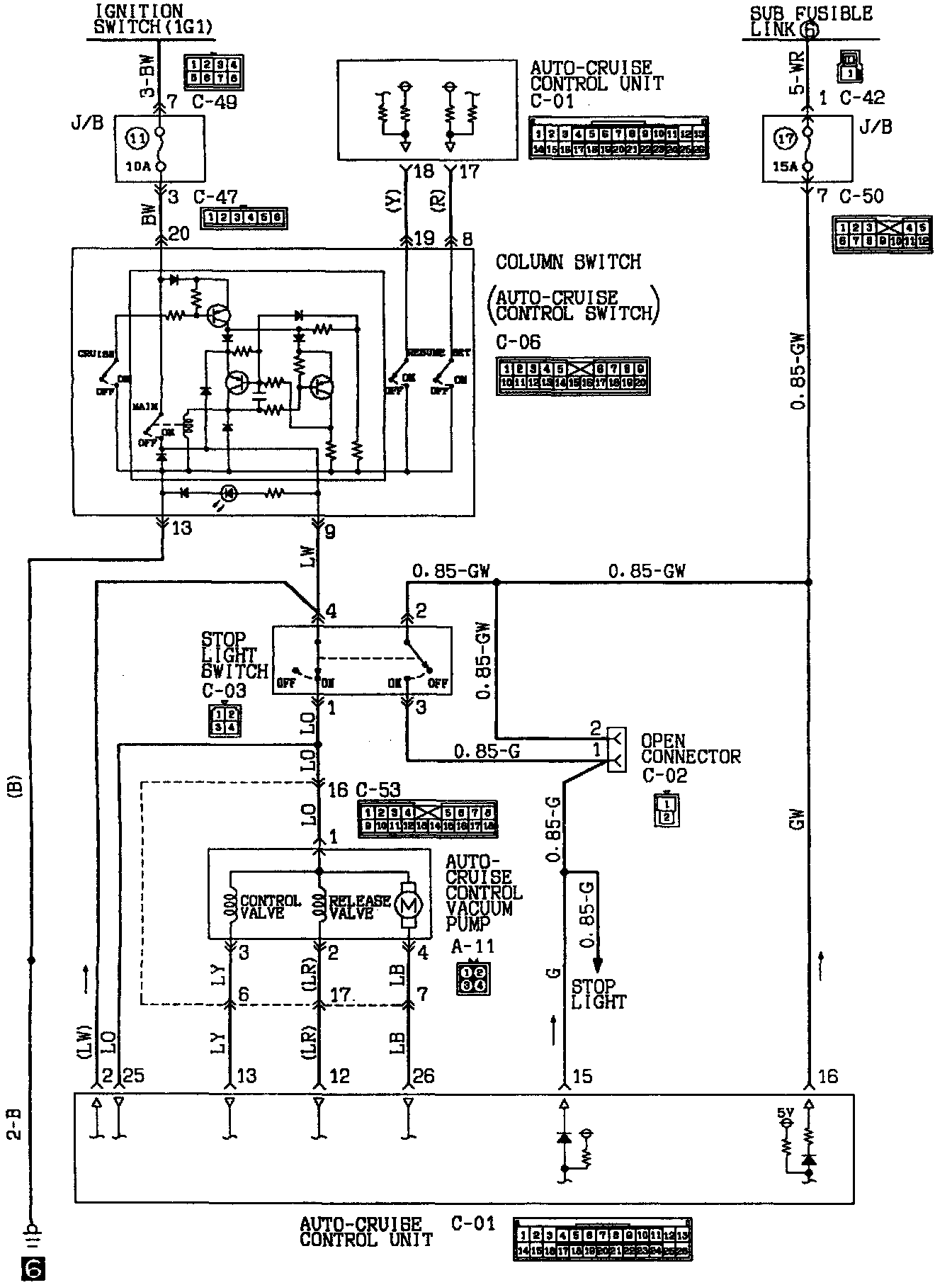

Auto-Cruise Control Circuit <A/T> (Part 2 Of 4):

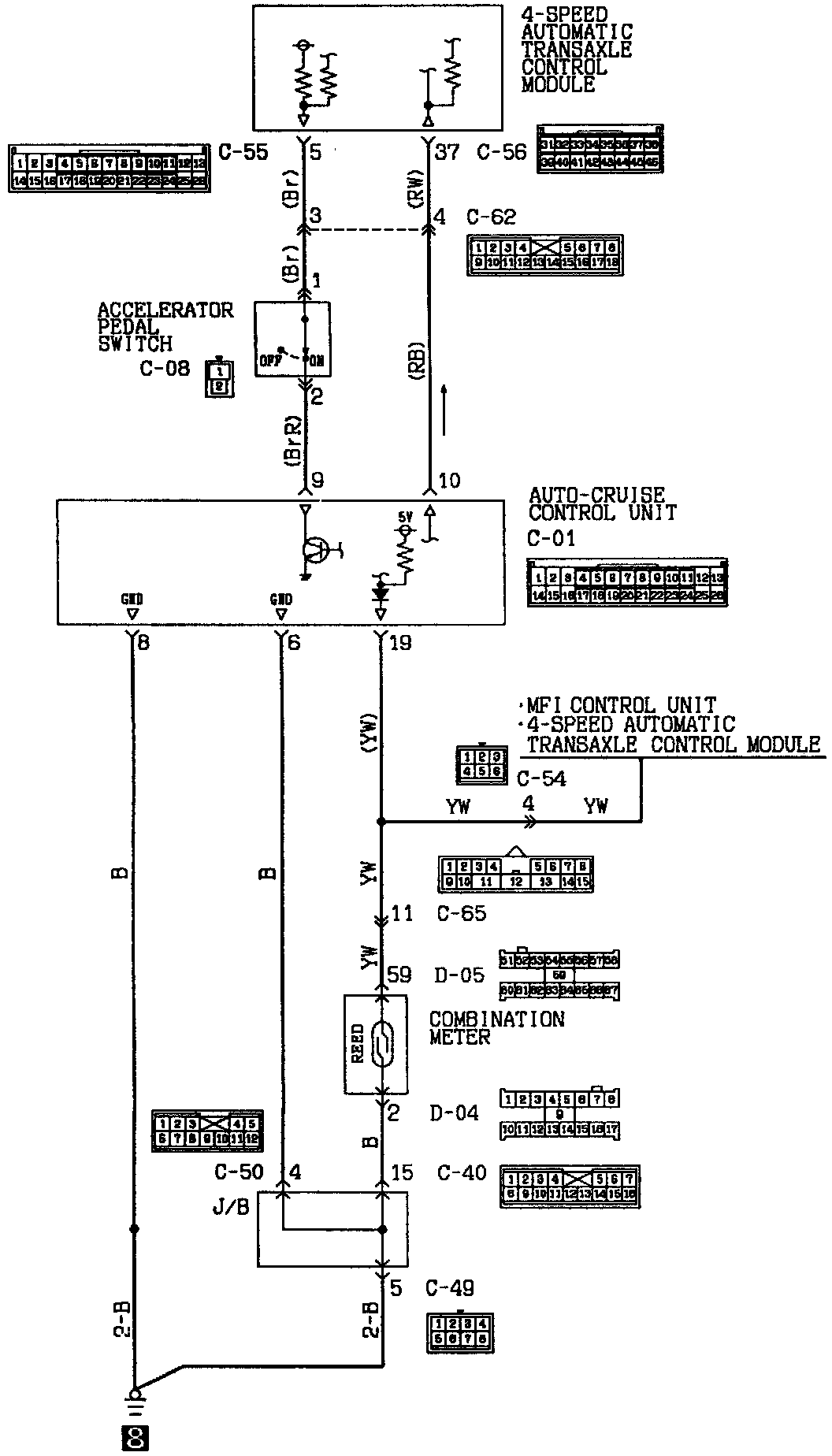

Auto-Cruise Control Circuit <A/T> (Part 3 Of 4):

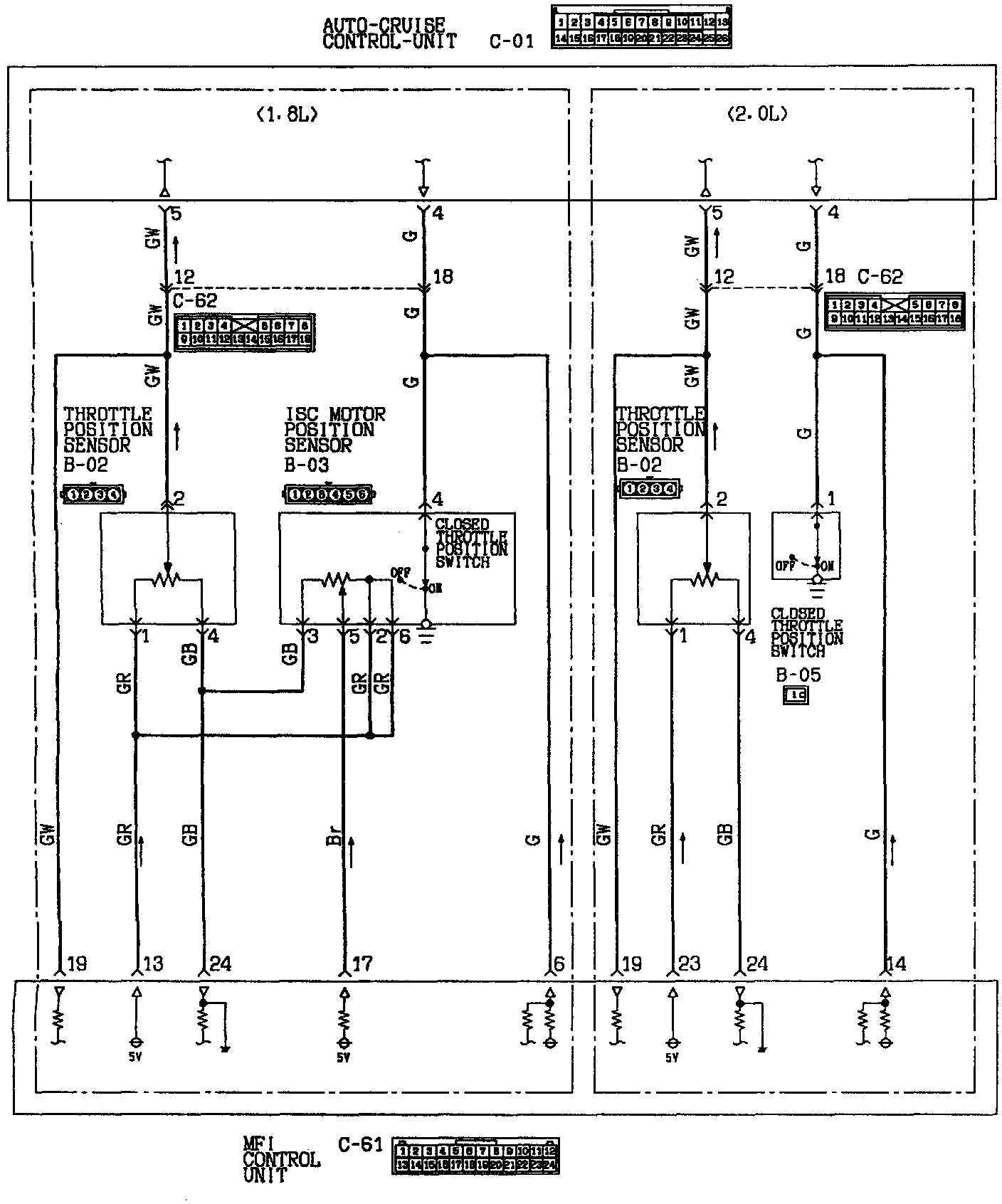

Auto-Cruise Control Circuit <A/T> (Part 4 Of 4):
