Home >> Eagle >> 1994 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> System Diagram

System Diagram

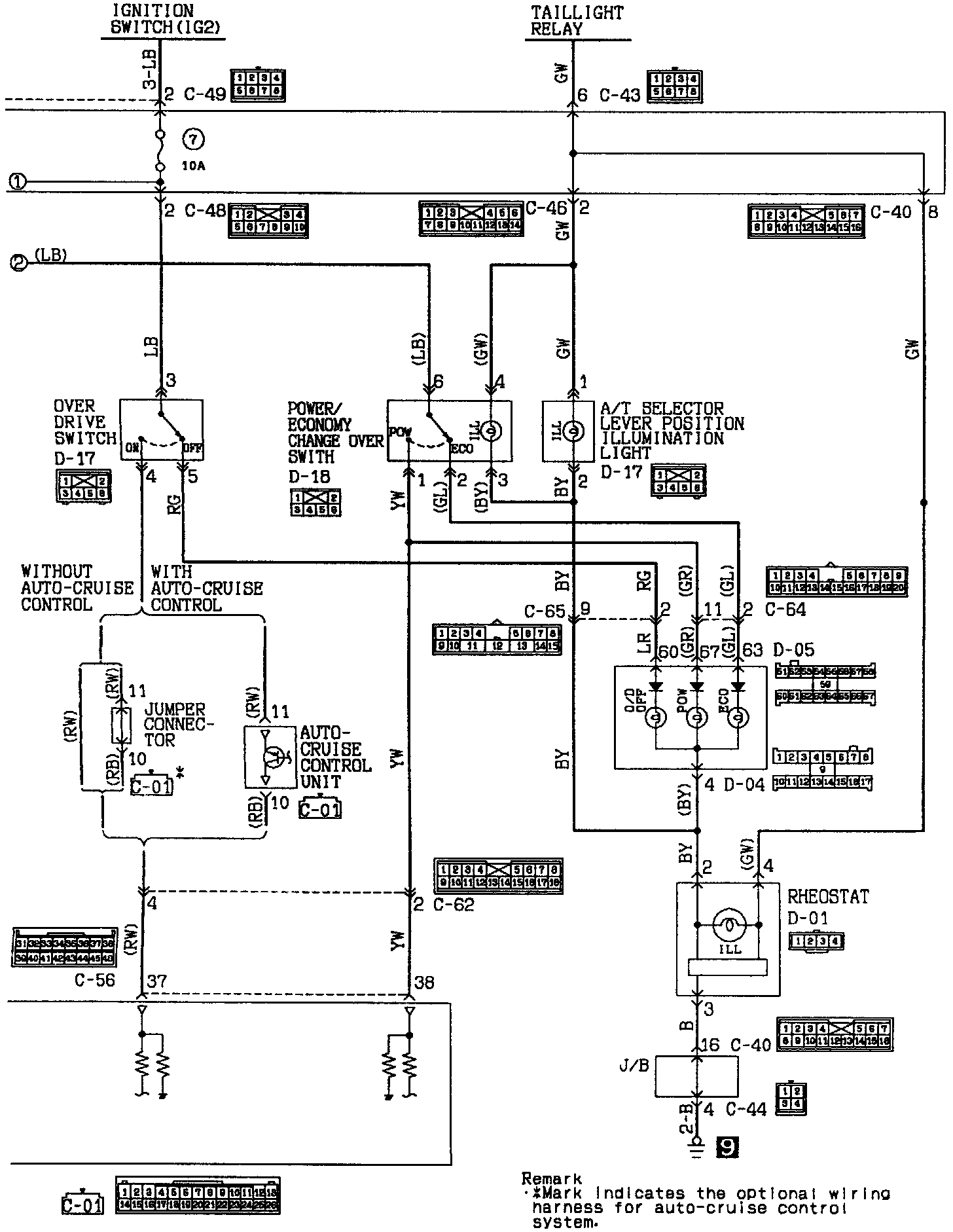

ELC 4-Speed A/T Circuit (Part 1 Of 4):



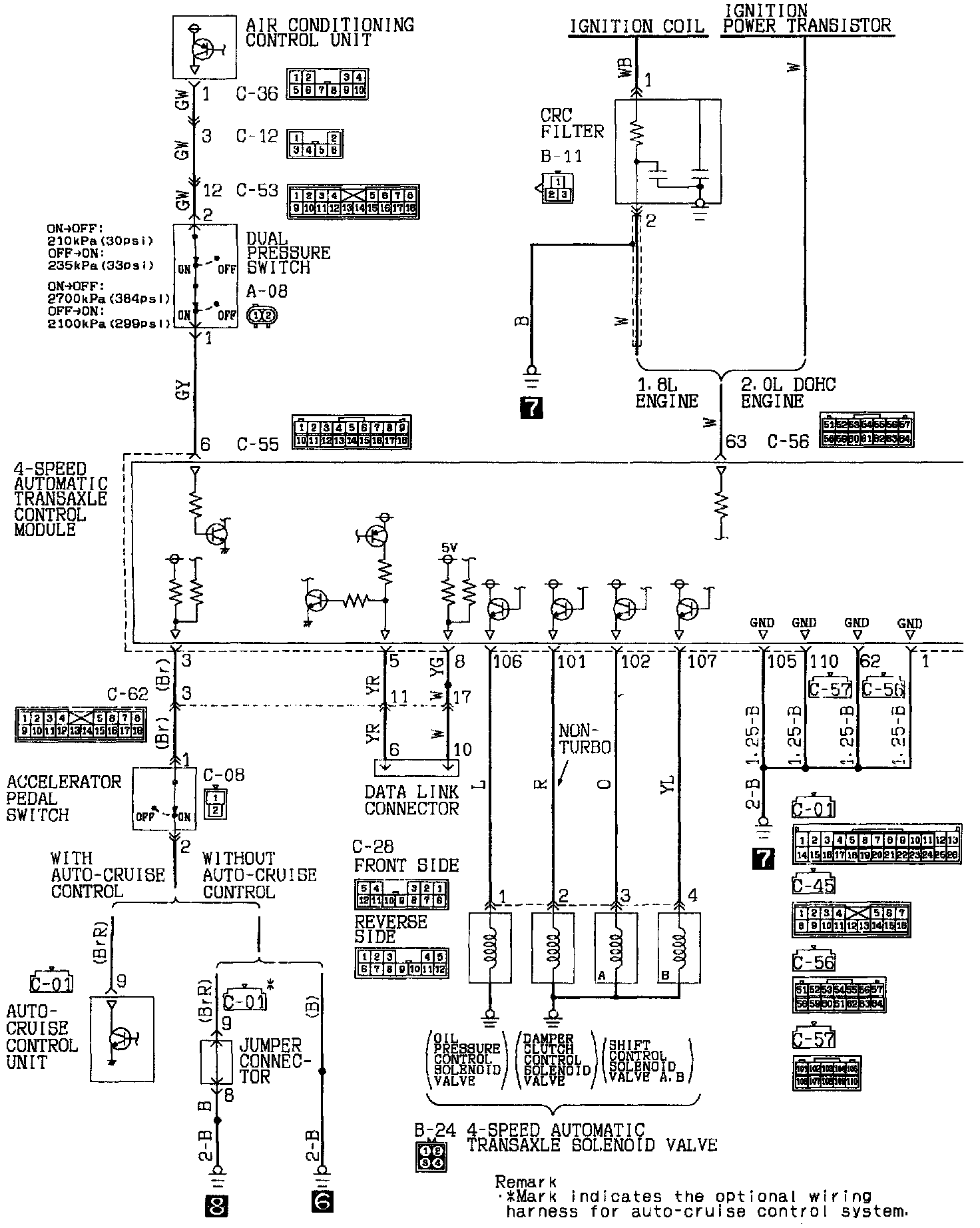

ELC 4-Speed A/T Circuit (Part 2 Of 4):



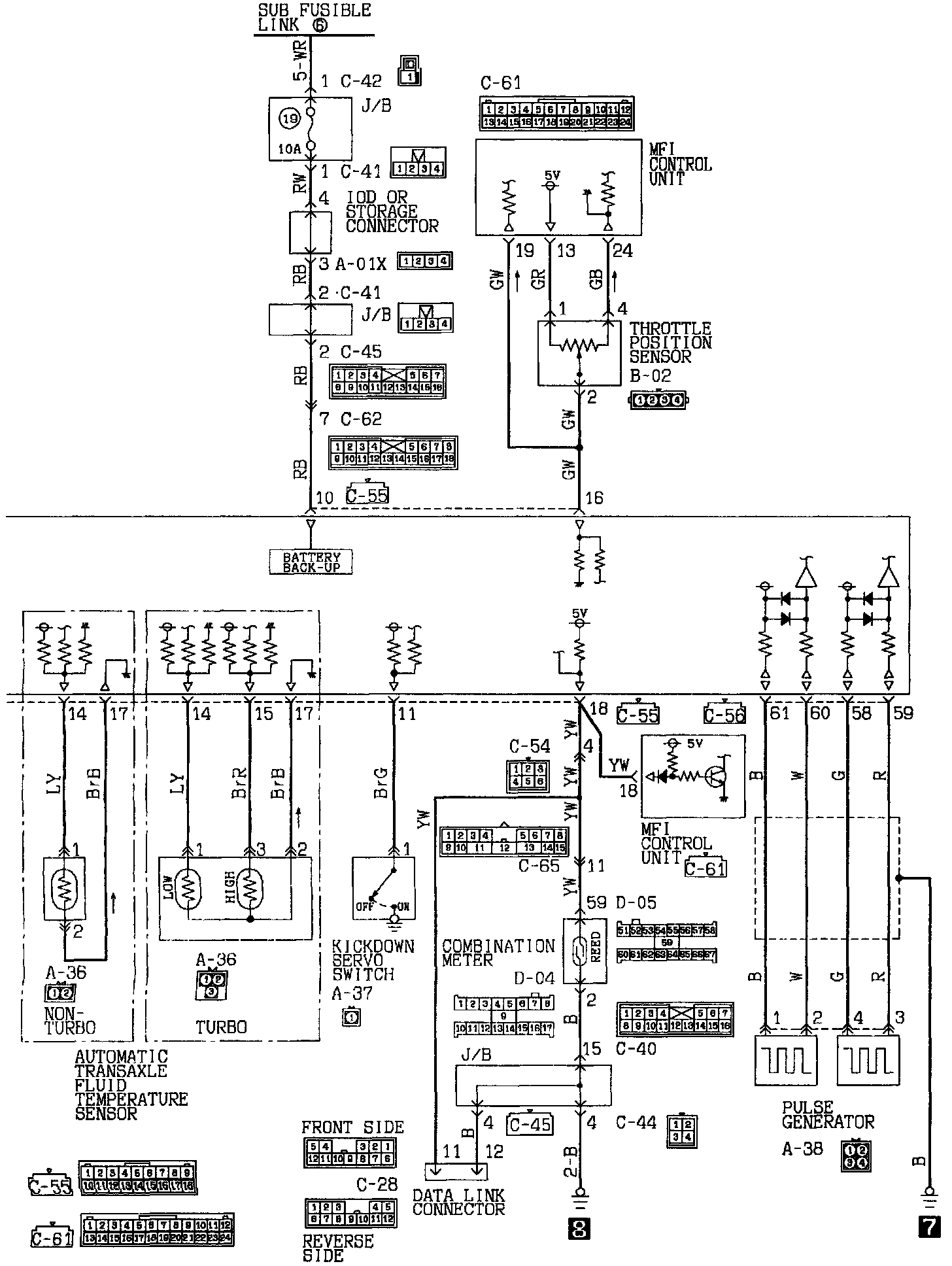

ELC 4-Speed A/T Circuit (Part 3 Of 4):



ELC 4-Speed A/T Circuit (Part 4 Of 4):
