E Connectors - Interior Harness

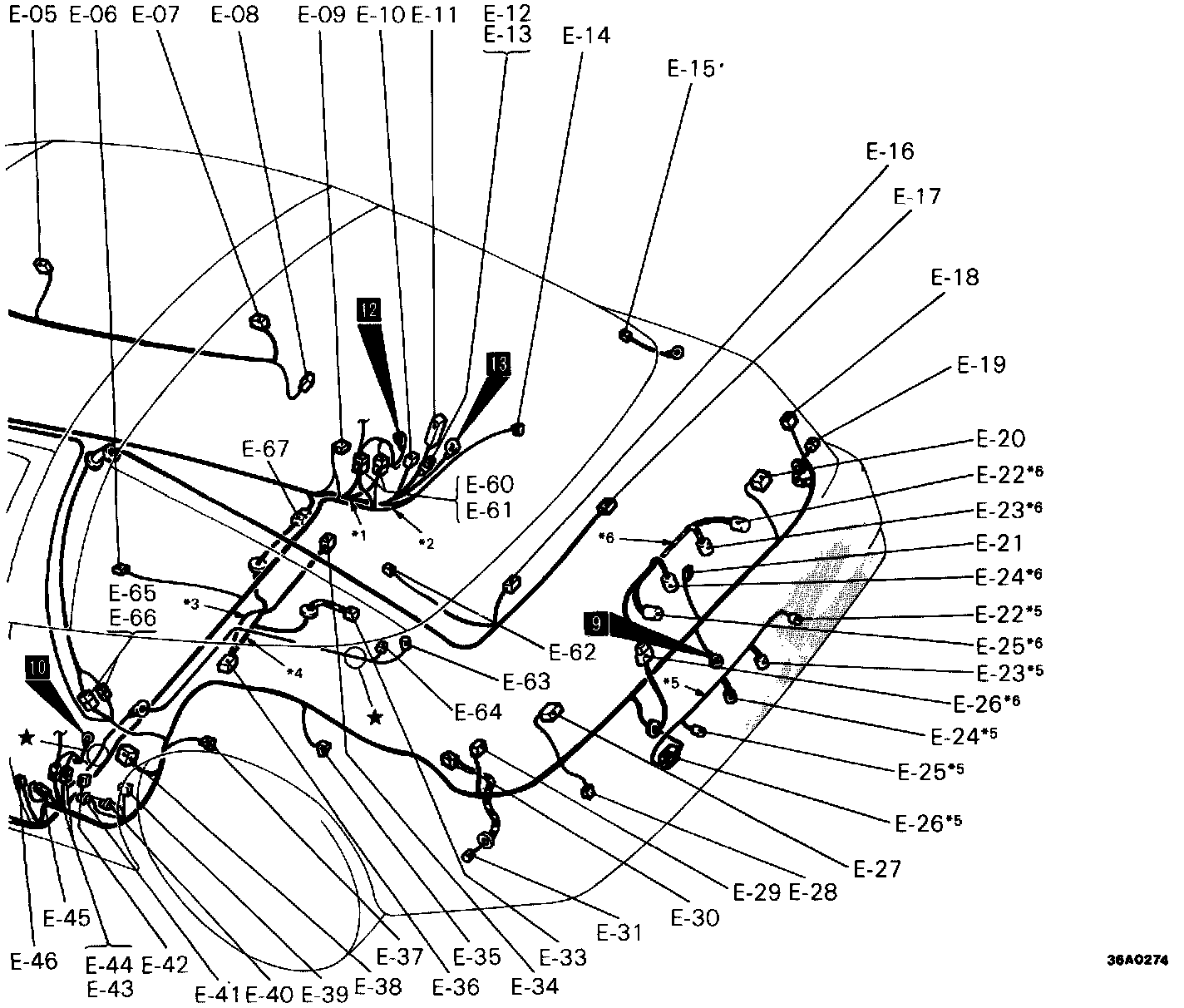

E Connectors: Interior (Part 1 Of 2):

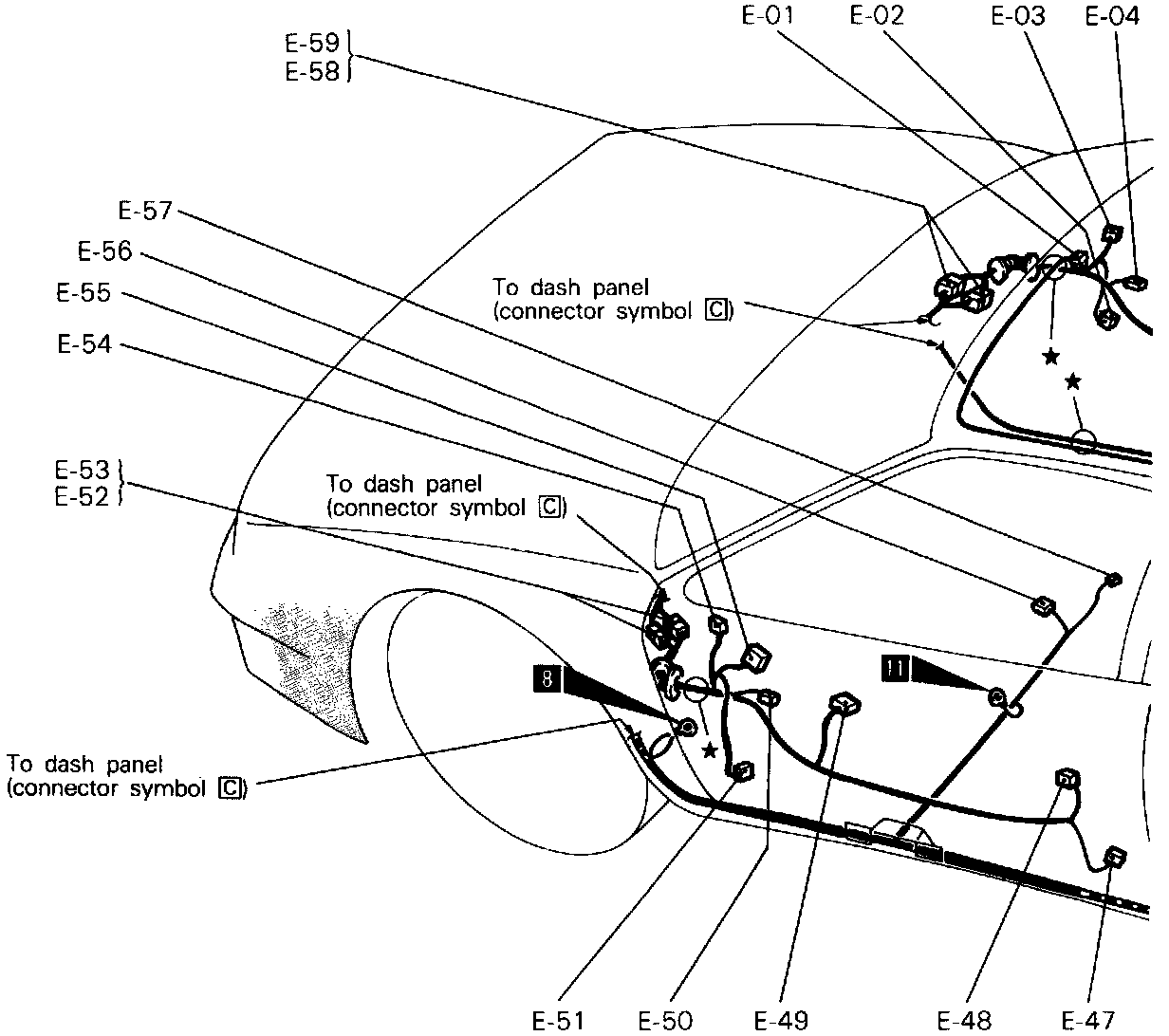

E Connectors: Interior (Part 2 Of 2):

E-01 Dome light
E-02 Door speaker (Right side)
E-03 Door mirror (Right side)
E-04 Power window motor (Right side)
E-05 Power window sub-switch
E-06 Outer switch (for automatic seat belt)
E-07 Door latch switch (Right side) (for automatic seat belt)
E-08 Door lock actuator (Right side)
E-09 Door switch (Right side)
E-10 ABS power relay
E-11 ABS control unit
E-12 Diode (for ABS circuit)
E-13 Resistor (for ABS circuit)
E-14 Rear speaker (Right side)
E-15 Defogger (-)
E-16 Rear wiper motor
E-17 High-mounted stop light
E-18 Rear combination light (Right side)
E-19 Rear side marker light (Right side)
E-20 Rear combination light (Right side)
E-21 Liftgate latch switch
E-22 Back-up light (Right side)
E-23 License plate lights
E-24 License plate lights
E-25 Back-up light (Left side)
E-26 License plate light wiring harness and body wiring harness combination
E-27 Rear combination light (Left side)
E-28 Rear washer motor
E-29 Rear combination light (Left side)
E-30 Fuel pump and gauge assembly
E-31 Rear side marker light (Left side)
E-32 -
E-33 G sensor (for ABS circuit)
E-34 ABS rear speed sensor (Right side)
E-35 Luggage compartment light
E-36 ABS rear speed sensor (Left side)
E-37 Rear speaker (Left side)
E-38 Automatic seat belt control unit
E-39 Intermittent wiper relay (Rear wiper)
E-40 Diode (for door-ajar warning light)
E-41 Noise condenser
E-42 Dome light relay
E-43 Automatic seat belt motor relay (Left side)
E-44 Automatic seat belt motor relay (Left side)
E-45 Fuel wiring harness and body wiring harness combination
E-46 Door switch (Left side)
E-47 Door lock actuator (Left side)
E-48 Door latch switch (Left side) (for automatic seat belt)
E-49 Power window main switch
E-50 Power window motor (Left side)
E-51 Door speaker (Left side)
E-52 Door wiring harness and body wiring harness combination (Left side)
E-53 Door wiring harness and body wiring harness combination (Left side)
E-54 Door mirror (Left side)
E-55 Remote controlled mirror switch
E-56 Seat belt buckle switch or seat belt switch
E-57 Parking brake switch
E-58 Door wiring barness and body wiring harness combination (Right side)
E-59 Door wiring barness and body wiring harness combination (Right side)
E-60 Automatic seat belt motor relay (Right side)
E-61 Automatic seat belt motor relay (Right side)
E-62 Defogger (+)
E-63 Fuel gauge unit
E-64 Fuel pump
E-65 Liftgate wiring harness and body wiring harness combination
E-66 Liftgate wiring harness and body wiring harness combination
E-67 ABS wiring harness and ABS sensor wiring harness combination

Remarks:
1. The mark "STAR" shows the standard mounting position of wiring harness.
2. For details concerning the ground point (example: [9]) Refer to Grounding Locations.
3. "-" means that the connector with code-number is not used.
4. "*"indicates vehicles without automatic seat belt.
5. *1 symbol is applicable to vehicles with ABS
*2 symbol is applicable to vehicles without ABS.
6. *3 symbol is applicable to FWD
*4 symbol is applicable to AWD vehicles.
7. *5 symbol is applicable to <PLYMOUTH Laser>
*6 symbol is applicable to <EAGLE Talon>.
