C-51 to C-68

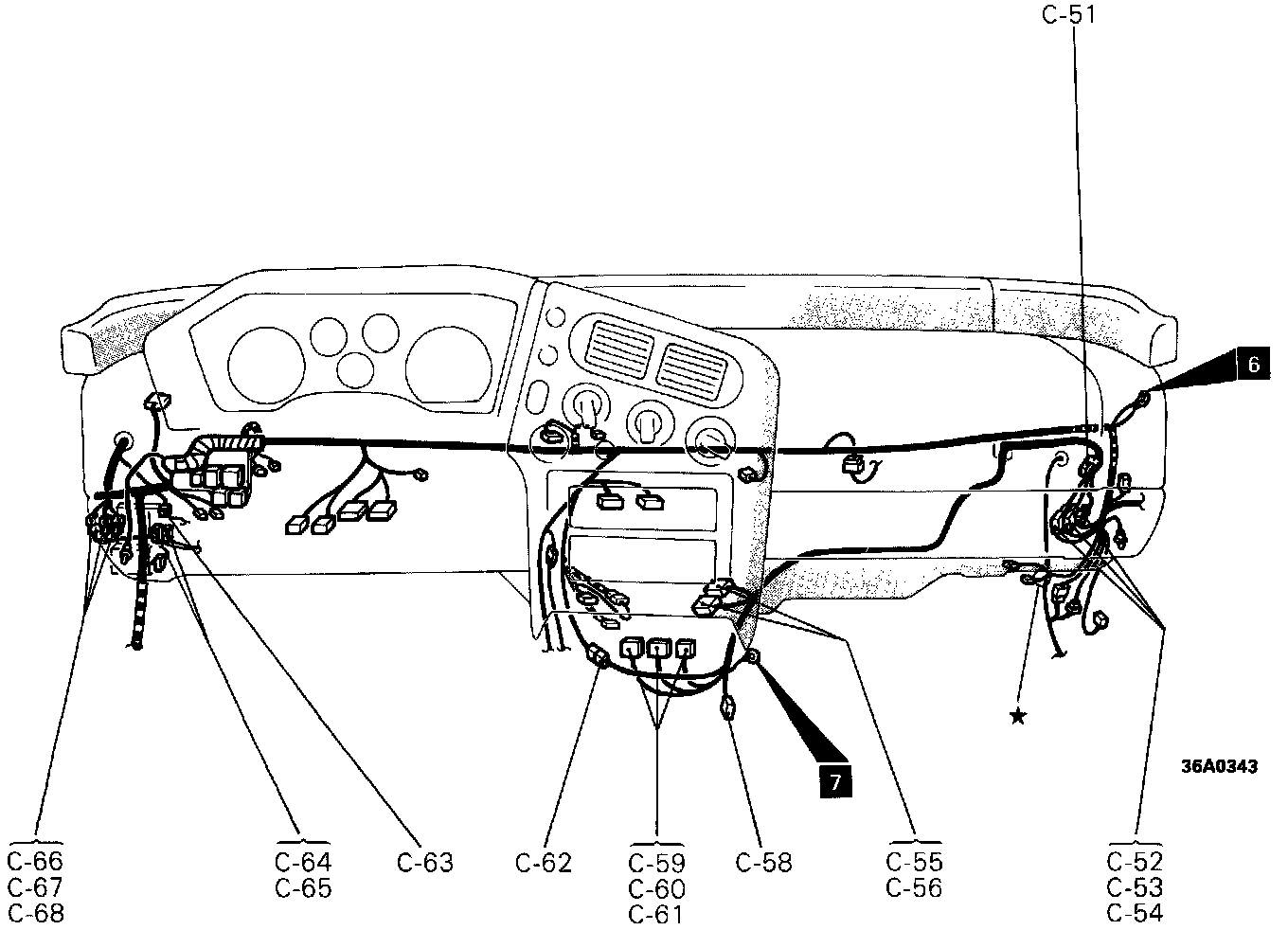

C Connectors: Dash Panel (Part 4 Of 4):

C-51 Oxygen sensor check connector <2.0L DOHC engine>
C-52 to C-54 Control wiring harness and body wiring harness combination
C-55 4-speed automatic transaxle control module
C-56 4-speed automatic transaxle control module
C-57 -
C-58 MFI control relay
C-59 to C-61 MFI control unit
C-62 Control wiring harness and body wiring harness combination
C-63 Instrument panel wiring harness and engine compartment wiring harness combination
C-64 Instrument panel wiring harness and body wiring harness combination
C-65 Instrument panel wiring harness and body wiring harness combination
C-66 to C-68 Engine compartment wiring harness and body wiring harness combination

Remarks:
1. The mark "STAR" shows the standard mounting position of wiring harness
2. For details concerning the ground point (example: [6]), refer to Grounding Locations.
