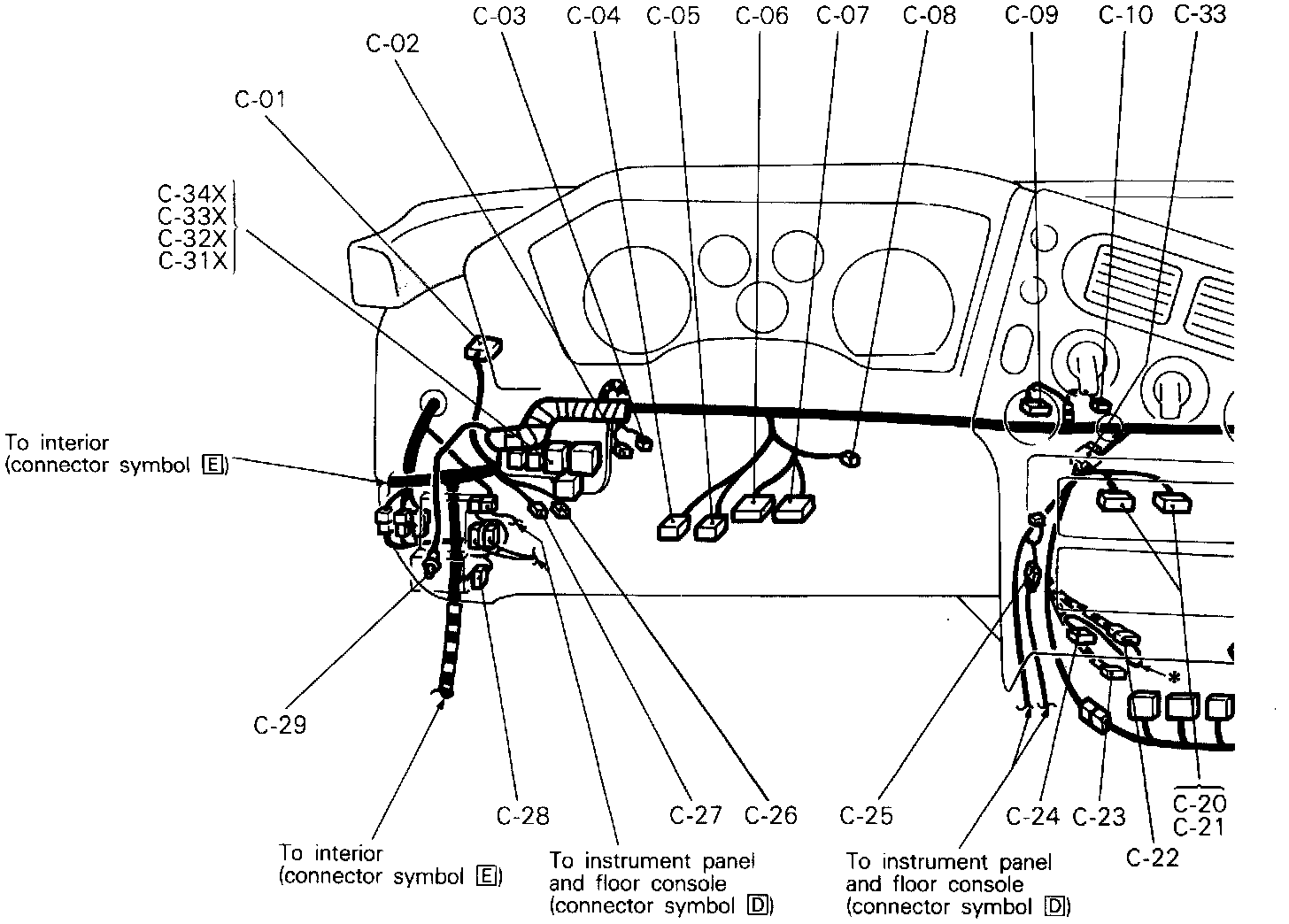

C Connectors: Dash Panel (Part 1 Of 4):

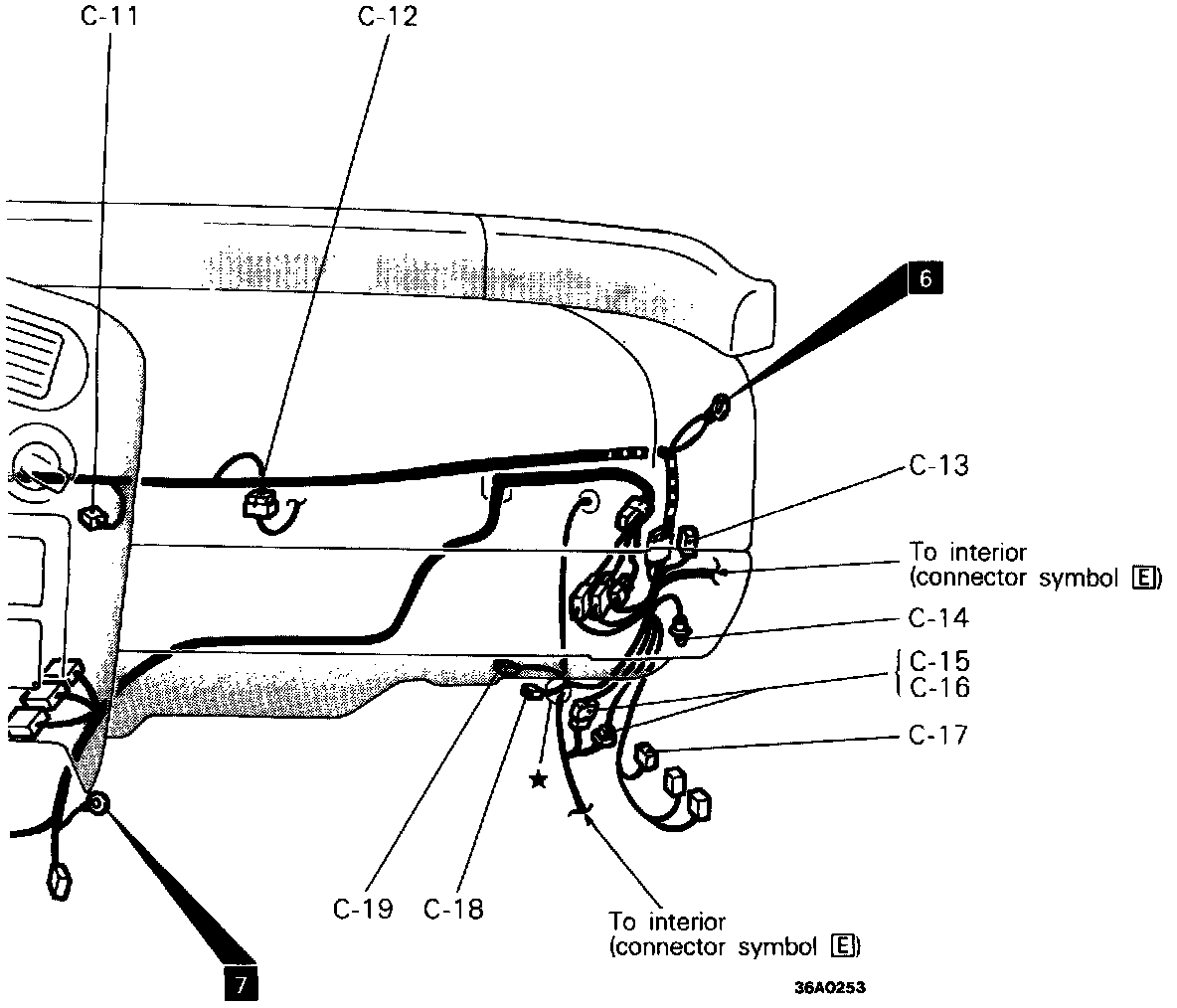

C Connectors: Dash Panel (Part 2 Of 4):

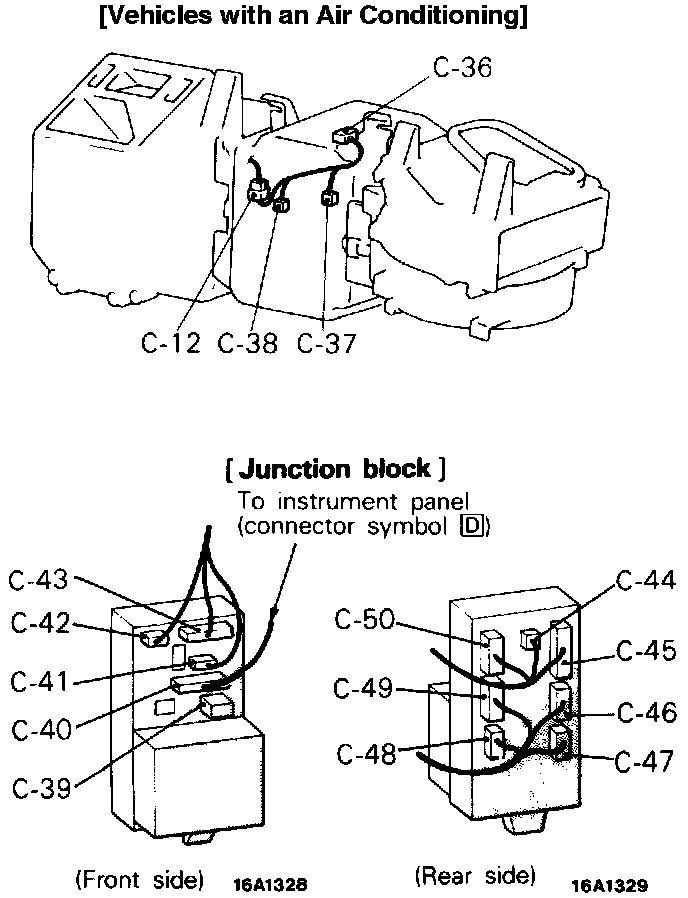

C Connectors: Dash Panel (Part 3 Of 4):






C-01 Auto-cruise control unit or jumper connector
C-02 Stop light switch
C-03 Stop light switch
C-04 Ignition switch
C-05 Key reminder switch
C-06 Column switch
C-07 Column switch
C-08 Accelerator pedal switch
C-09 Blower switch
C-10 Air conditioning switch
C-11 Blower resistor
C-12 Air conditioning wiring harness and body wiring harness combination
C-13 Transistor relay (for daytime running light circuit)
C-14 Foot light (Right side)
C-15 Body wiring harness and ABS wiring harness combination
C-16 Body wiring harness and ABS wiring harness combination
C-17 Door lock control unit
C-18 Blower motor high relay (vehicles with air conditioning) or jumper connector
C-19 Blower motor
C-20 Radio
C-21 Radio
C-22 Turn-signal and hazard flasher unit <PLYM0UTH Laser> or Turn-signal and hazard flasher unit sub-harness and body wiring harness combination <EAGLE Talon>
C-23 Buzzer assembly
C-24 Turn-signal and hazard flasher unit <EAGLE Talon>
C-25 Floor console wiring harness and body wiring harness combination
C-26 Clutch pedal position switch (for starter circuit)
C-27 Clutch pedal position switch (for auto-cruise circuit)
C-28 Data link connector
C-29 Foot light (Left side)
C-30 Diode (for daytime running light circuit)
C-31X to C-35X Refer to CENTRALIZED JUNCTION
C-31X Door lock relay
C-32X Starter relay
C-33X Defogger timer
C-34X Upper beam relay
C-35X -
C-36 Air conditioning control unit
C-37 Air inlet sensor
C-38 Air thermo sensor
C-39 Heater relay
C-40 Instrument panel wiring harness and junction block combination
C-41 to C-43 Engine compartment wiring harness and junction block combination
C-44 to C-50 Body wiring harness and junction block combination

Remarks:
1. The mark "STAR" shows the standard mounting position of wiring harness.
2. For details concerning the ground point (example: [6]), refer to Grounding Locations.
3. The wiring indicated by the * symbol is applicable to EAGLE Talon.
