B Connectors - Engine and Transaxle Harness

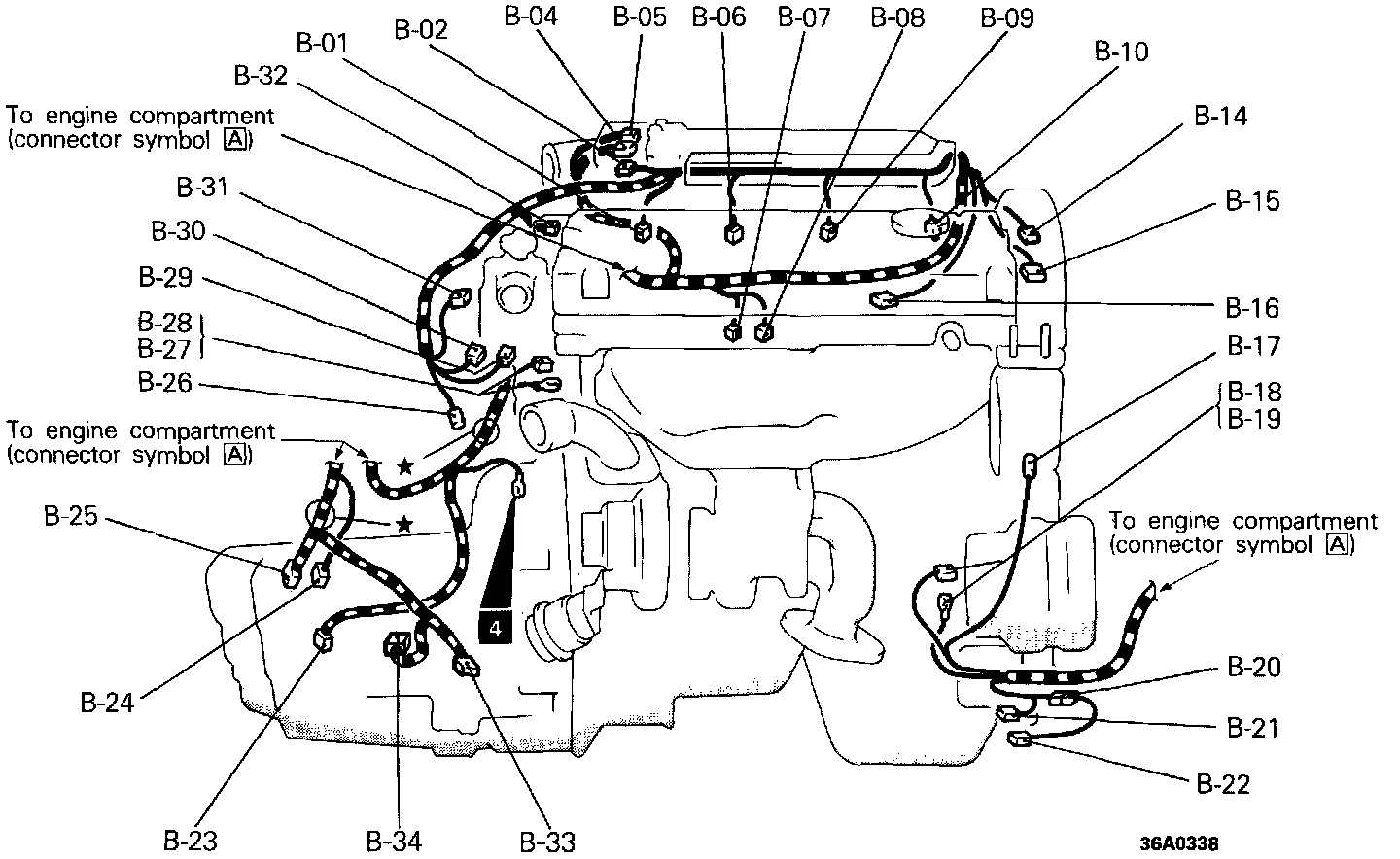

B Connectors: Engine And Transaxle:

B-01 Injector No.4
B-02 Throttle position sensor
B-03 -
B-04 Idle speed control actuator
B-05 Closed throttle position switch
B-06 Injector No.3
B-07 Knock sensor <2.0L DOHC turbo>
B-08 EGR temperature sensor (Vehicles for California)
B-09 Injector No.2
B-10 Injector No.1
B-11 -
B-12 -
B-13 -
B-14 Ignition coil
B-15 Ignition power transistor
B-16 Magnetic clutch (for air conditioning circuit)
B-17 Power steering pressure switch
B-18 Generator
B-19 Generator
B-20 Engine compartment wiring harness and engine wiring harness combination
B-21 Oil pressure switch
B-22 Oil pressure gauge unit
B-23 Back-up light switch
B-24 4-speed automatic transaxle control solenoid valve
B-25 Park/Neutral position switch
B-26 Oxygen sensor
B-27 Starter motor
B-28 Starter motor
B-29 Engine coolant temperature gauge unit
B-30 Engine coolant temperature sensor
B-31 Air conditioning engine coolant temperature switch
B-32 Crankshaft position and camshaft position sensor
B-33 Kickdown servo switch
B-34 Automatic transaxle temperature sensor

Remarks:
1. The mark "STAR" shows the standard mounting position of wiring harness.
2. For details concerning the ground point (example: [4]) refer to Grounding Locations.
3. "-" means that the connector with code-number is not used.
