A Connectors - Engine Compartment Harness

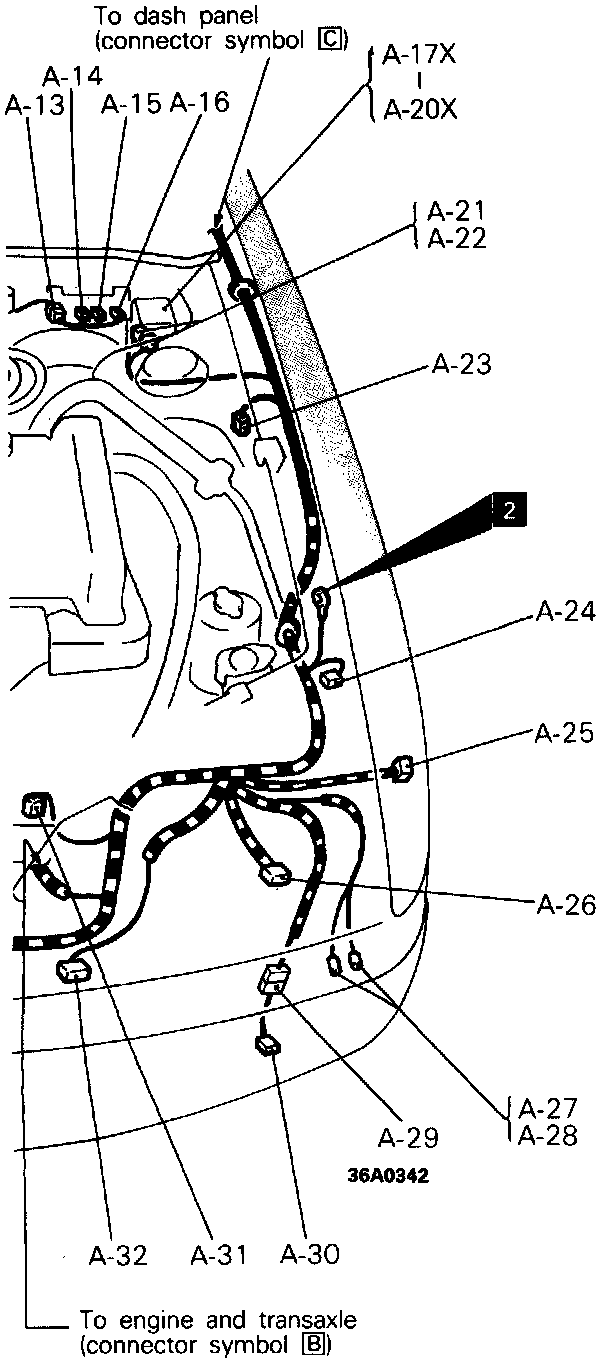

A Connectors: Engine Compartment (Part 1 Of 3):

A Connectors: Engine Compartment (Part 2 Of 3):

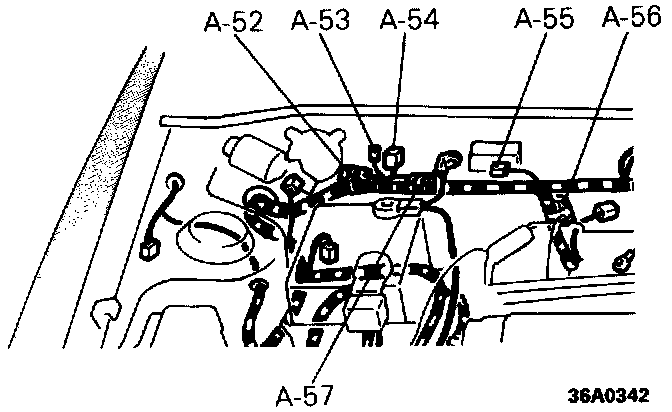

A Connectors: Engine Compartment (Part 3 Of 3):

A-01X to A-07X Refer to CENTRALIZED JUNCTION
A-01X IOD or storage connector
A-02X Taillight relay
A-03X Headlight relay
A-04X Power window relay
A-05X Fog light relay
A-06X Radiator fan motor relay
A-07X Generator relay
A-08 Dual pressure switch (for air conditioning circuit)
A-09 Wiper motor
A-10 Control wiring harness and battery cable assembly combination
A-11 Auto-cruise control vacuum pump
A-12 Brake fluid level sensor
A-13 Control wiring harness and solenoid valve harness assembly combination
A-14 Evaporative emission purge solenoid
A-15 Fuel pressure solenoid valve
A-16 EGR solenoid (Vehicles for California)
A-17X to A-20X Refer to CENTRALIZED JUNCTION (for air conditioning circuit)
A-17X Condenser fan motor high-low changeover relay
A-18X Condenser fan motor relay
A-19X Magnetic clutch relay
A-20X Condenser
A-21 Air conditioning relay box
A-22 Air conditioning relay box
A-23 ABS front speed sensor (Left side)
A-24 Washer motor
A-25 Front side marker light (Left side)
A-26 Headlight (Left side)
A-27 Horn (Left side)
A-28 Horn (Left side)
A-29 Engine compartment wiring harness and fog light sub-harness combination
A-30 Fog light (Left side)
A-31 Condenser fan motor (for air conditioning circuit)
A-32 Front combination light (Left side)
A-33 Hydraulic unit
A-34 Hydraulic unit
A-35 Volume air flow sensor
A-36 Automatic transaxle fluid temperature sensor
A-37 -
A-38 Pulse generator
A-39 Radiator fan assembly
A-40 Front combination light (Right side)
A-41 Radiator water level switch
A-42 Fog light (Right side)
A-43 Engine compartment wiring harness and fog light sub harness combination
A-44 Horn (Right side)
A-45 Horn (Right side)
A-46 Headlight (Right side)
A-47 Front side marker light (Right side)
A-48 Turbocharger waste gate solenoid
A-49 Control wiring harness and engine compartment wiring harness combination
A-50 Control wiring harness and engine compartment wiring harness combination
A-51 ABS front speed sensor (Right side)
A-52 Fuel pump check connector
A-53 Noise condenser
A-54 Defogger relay
A-55 Resistor
A-56 Engine speed adjustment connector
A-57 Ignition timing adjustment connector

Remarks:
1. The mark "STAR" shows the standard mounting position of wiring harness.
2. For details concerning the ground point (example: [1]) refer Grounding Locations.
3. *1 Vehicles with ABS.
*2 Vehicles without ABS.
4. IOD : Ignition Off Draw
