Reading and Clearing Diagnostic Trouble Codes

Ensure (ECU) power supply is left on until checking is completed.

Fig. 12 Diagnostic Harness Connector:

1. Connect a voltmeter between ground and auto-cruise control terminal of diagnosis harness connector, located on lower left side of instrument panel.

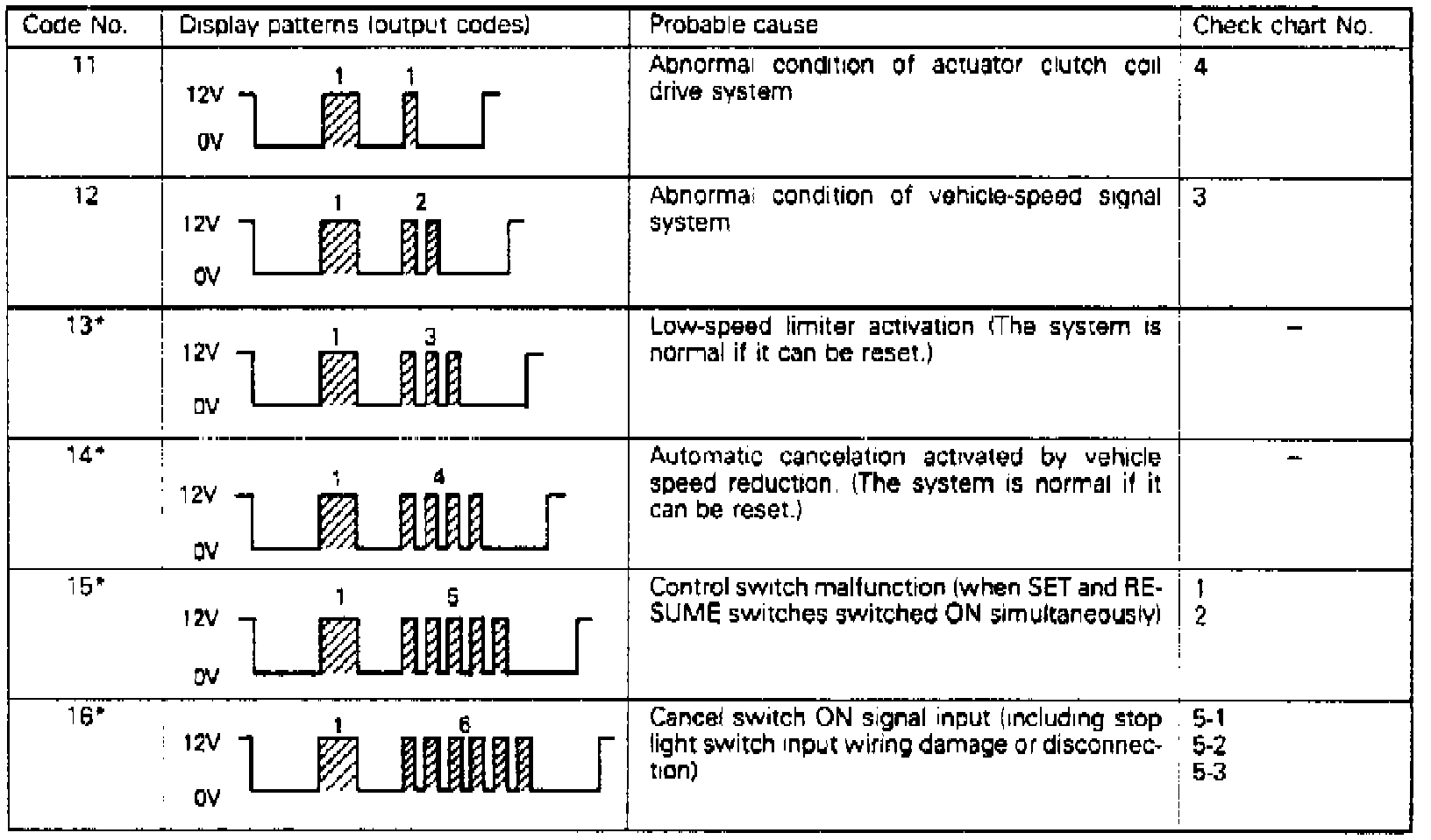

Fig. 13 Diagnosis Display Patterns:

2. There are up to six diagnosis codes, including one for normal condition. Check voltmeter readings with display patterns shown. Then refer to the appropriate diagnostic chart indicated.
