Home >> Eagle >> 1994 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Cruise Control >> Service and Repair

Cruise Control: Service and Repair

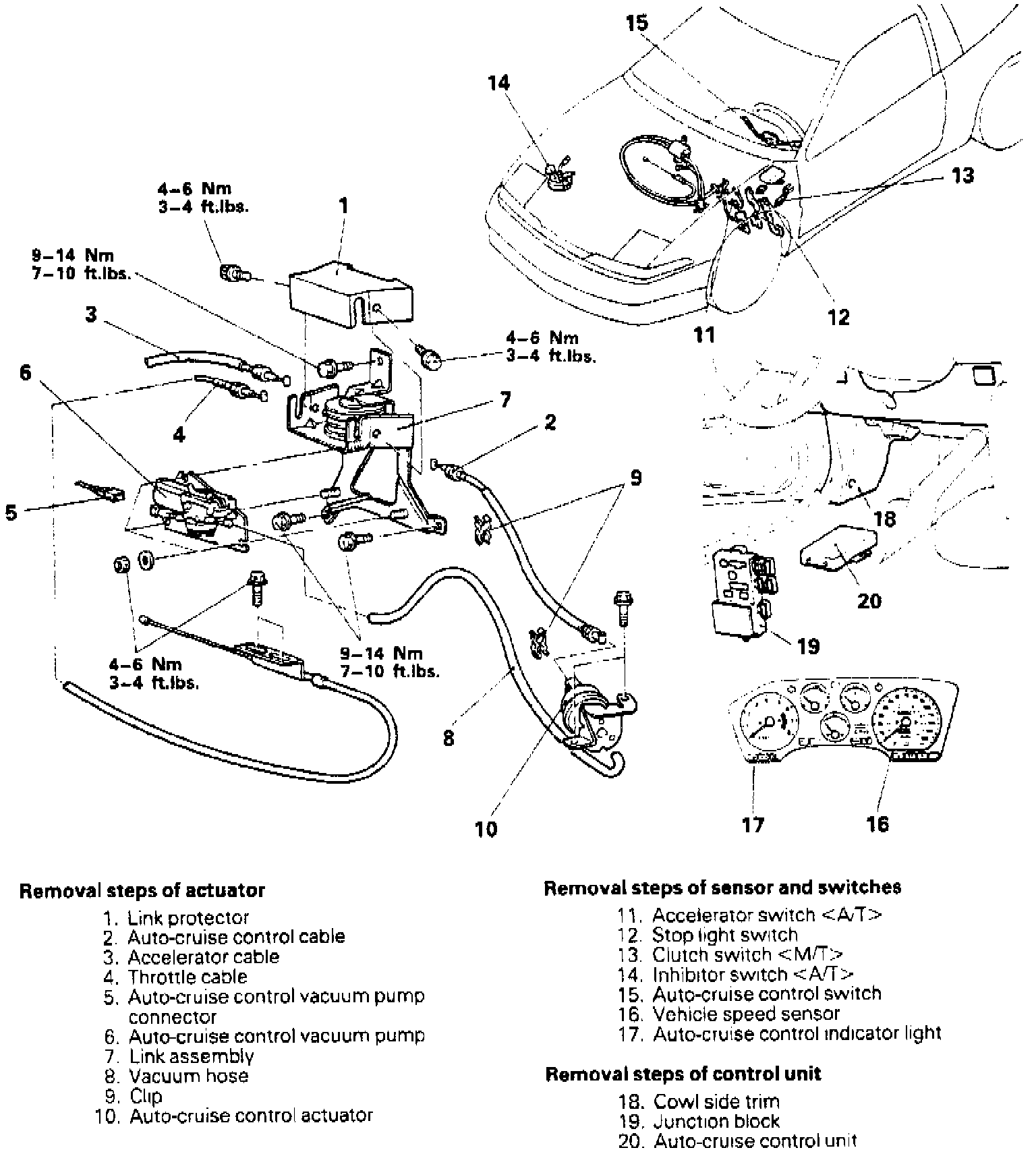

Fig. 58 Component Location:





Remove components in order shown. Reverse procedure to install.
