Actuator Operation Inspection

1. Remove actuator.
2. Apply vacuum to actuator and ensure holder moves more than 1.4 inches.
3. Ensure no change in holder position as vacuum is maintained.

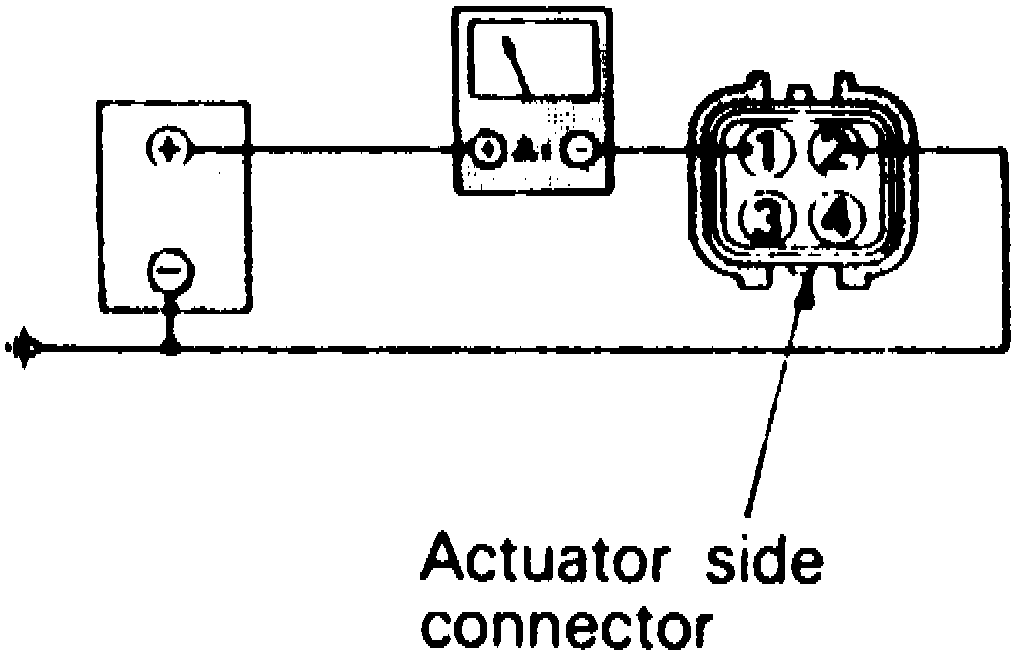

Fig. 55 Actuator Connector:

4. Refer to chart for actuator testing.
