Rear Seat Assembly

REMOVAL STEPS
1. Seat cushion
2. Clips
3. Seatback
4. Striker


SERVICE POINTS OF REMOVAL

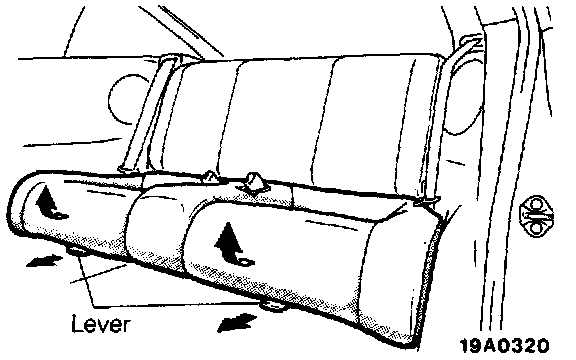

1. Removal Of Seat Cushion
Pulling the lever, raise the front of the seat cushion and remove the seat cushion.

SERVICE POINTS OF INSTALLATION

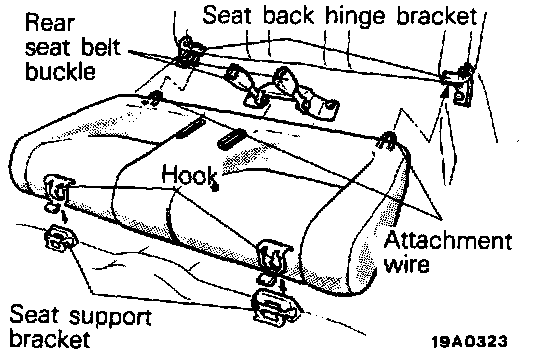

1. Installation Of Seat Cushion
1. Securely insert the attachment wire of the rear cushion into under the hinge bracket of the seat back.
2. Pass the rear seat belt buckle.
3. Securely insert the hook of the seat cushion into the seat support bracket.
