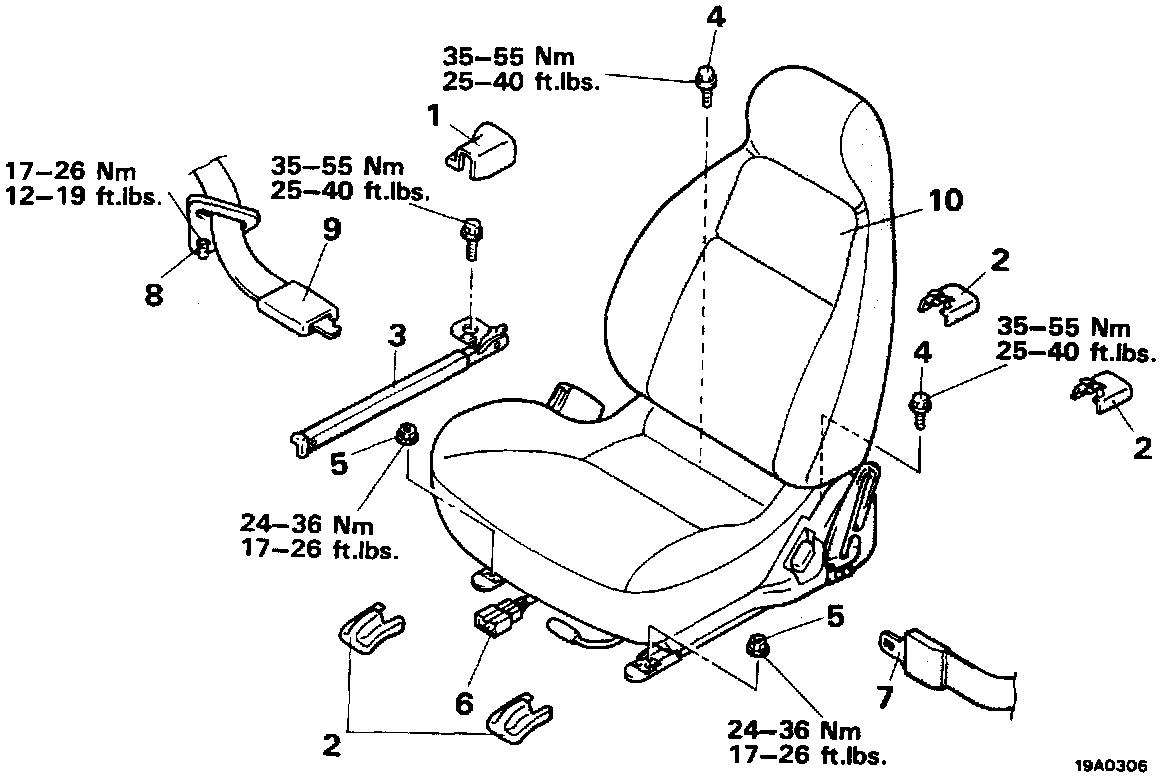

Front Seat Assembly

REMOVAL STEPS
1. Slider rail anchor cover
2. Seat anchor covers
3. Slider rail
4. Seat mounting bolts
5. Seat mounting nuts
6. Seat belt switch connector L.H. only
7. Lap belt
8. Guide ring
9. Shoulder belt
10. Front seat assembly
