Trim Panel: Service and Repair
COWL SIDE TRIM REMOVAL STEPS
1. Scuff plate
2. Cowl side trim
QUARTER TRIM REMOVAL STEPS
- Rear seat
1. Scuff plate
5. Quarter trim
6. Quarter trim lower bracket Center shelf removal steps
3. Center shelf
4. Shelf holder
REAR END TRIM REMOVAL STEPS
7. Lid (B)
8. Lid (D)
9. Rear end trim
10. Bracket
11. FWD bracket
12. AWD trim bracket

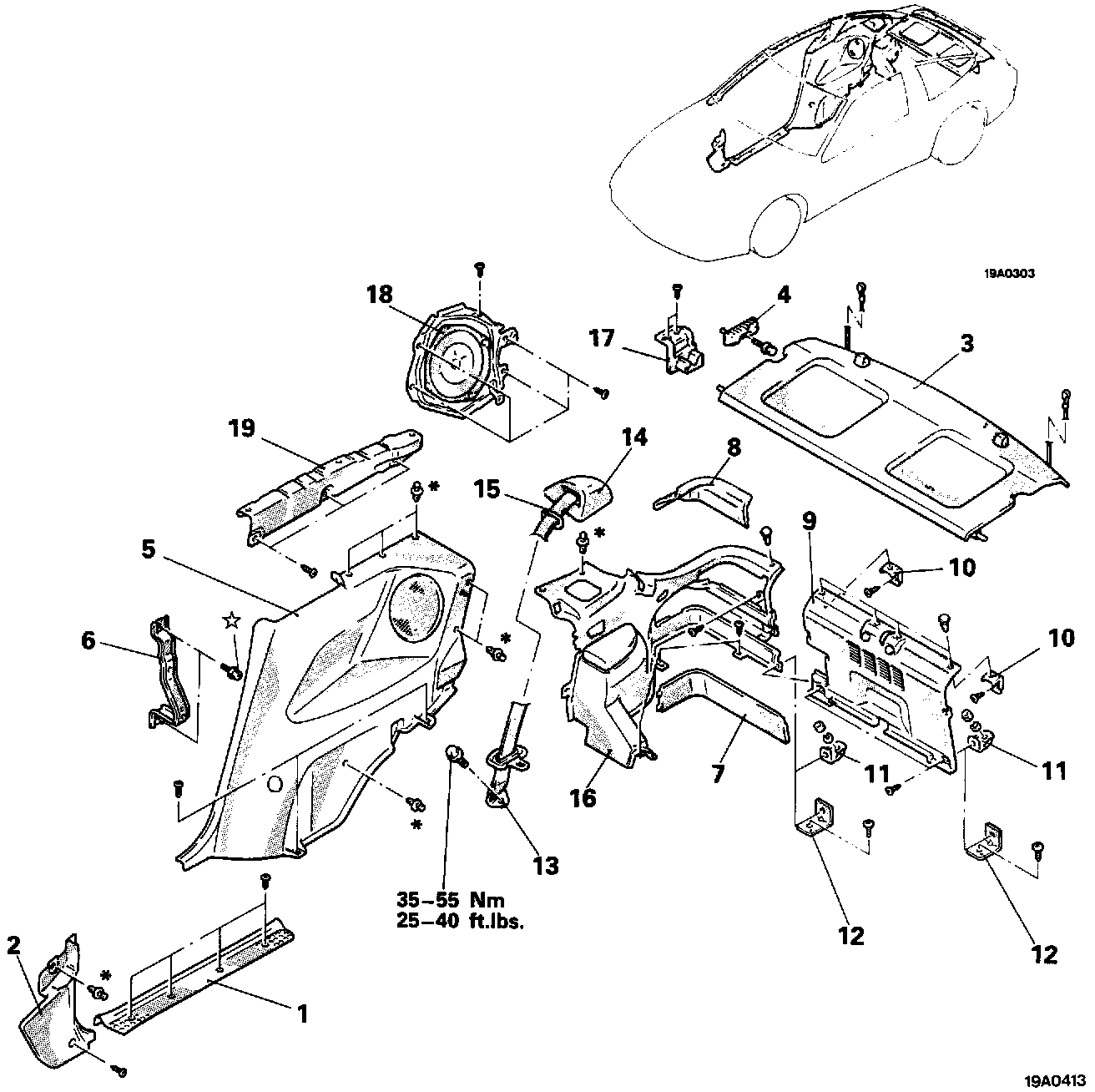

REAR SIDE TRIM REMOVAL STEPS
- Rear seat
1. Scuff plate
3. Center shelf
4. Shelf holder
5. Quarter trim
7. Lid (B)
8. Lid (D)
9. Rear end trim
13. Rear seat belt anchor plate
14. Retractor cover
15. Rear seat belt protector
16. Rear side trim
17. Shelf catcher
18. Rear speaker bracket assembly
19. Quarter trim upper bracket
NOTE: For the bolts indicated by the *, screws are used for the left side.
CENTER PILLAR TRIM AND FRONT PILLAR TRIM REMOVAL STEPS
- Rear seat
1. Scuff plate
5. Quarter trim
21. Sash guide cover
22. Front seat belt sash guide
20. Coat hanger
23. Center pillar trim
24. Front pillar trim
FRONT BELT RAIL TRIM AND REAR BELT RAIL TRIM REMOVAL STEPS
- Rear seat
1. Scuff plate
5. Quarter trim
20. Coat hanger
23. Center pillar trim
24. Front pillar trim
25. Guide rail
26. Rear belt rail trim
27. Front belt rail trim
REAR PILLAR TRIM REMOVAL STEPS REAR SEAT
1. Scuff plate
5. Quarter trim
20. Coat hanger
23. Center pillar trim
28. Rear pillar trim

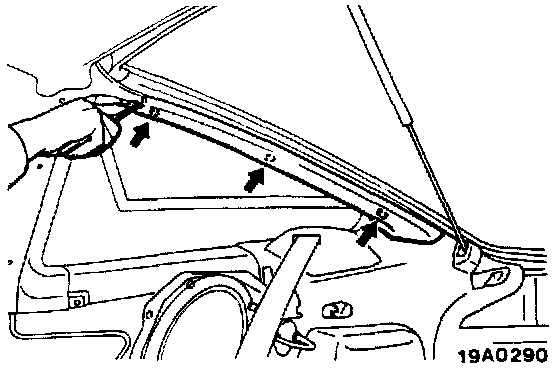

LIFTGATE TRIM AND FLANGE TRIM REMOVAL STEPS
29. High mounted stop light cover
30. Liftgate trim
31. Flange trim
NOTE: The * symbol indicates the trim clip.

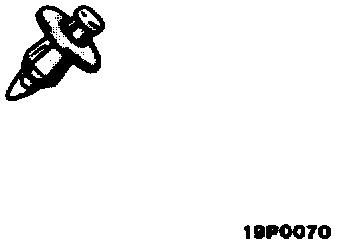

TRIM CLIP REMOVAL/INSTALLATION PROCEDURES
The type of clip shown in the illustration, which is used for the installation of. instrument panel, should be removed and installed by the following procedures described below.

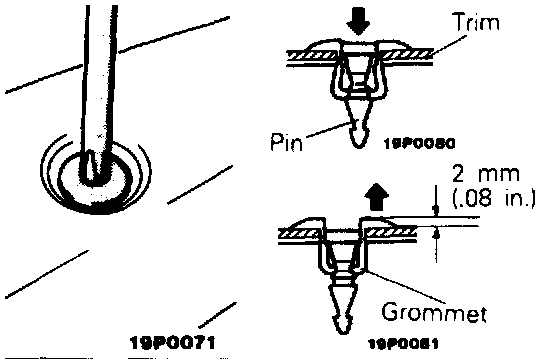

Removal
1. Use a cross-tip (+) screwdriver to push inward the pin (at the center of the trim clip) to a depth of about 2 mm (.08 in.).
2. Pull the trim clip outward to remove it.
CAUTION: Do not push the pin inward more than necessary because it may damage the grommet, or the pin may fall in, if pushed too far.
Installation
1. With the pin pulled out, insert the trim clip into the hole in the trim.
2. Push the pin inward until the pin's head is flush with the grommet.
3. Check whether the trim is secure.
SERVICE POINTS OF REMOVAL

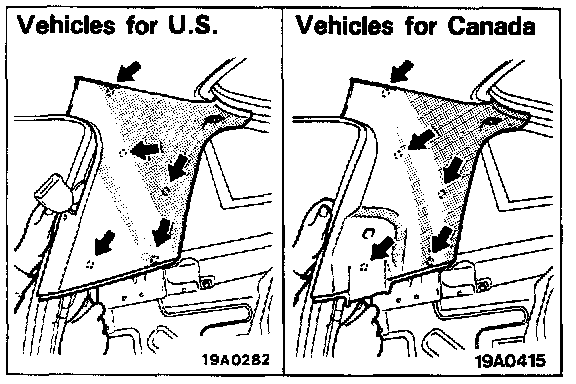

5. Removal Of Quarter Trim
1. Remove the quarter trim mounting screws and trim clip.
2. Using the plastic trim tool, remove the clip mounting area on the back of the quarter trim, and remove the quarter trim.

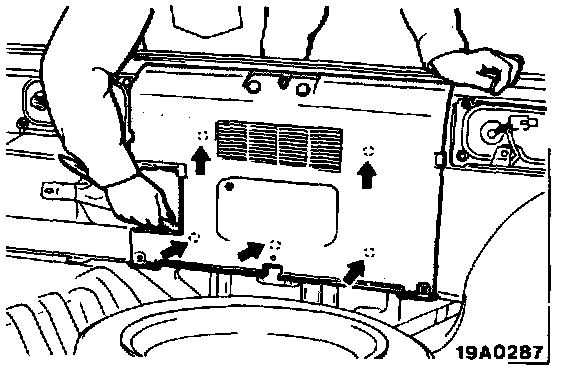

9. Removal Of Rear End Trim
1. Remove the rear end trim mounting screws and clips.
2. Using the plastic trim tool, remove the clip mounting area on the back of the rear end trim, and remove the rear end trim.

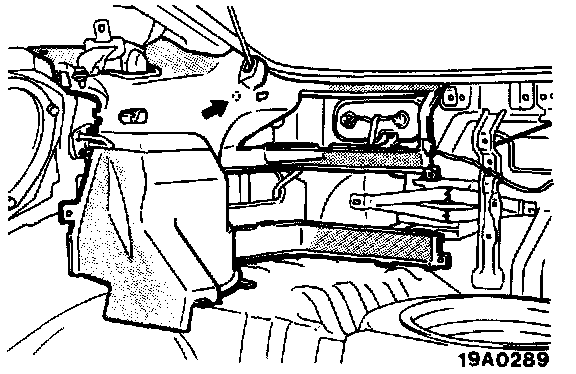

16. Removal Of Rear Side Trim
1. Remove the cargo room light on the rear side trim (L.H.)
2. Remove the rear side trim mounting screws and clips
3. Slowly pulling the rear side trim toward you, remove the clip mounting area on the back of the rear side trim, and remove the rear side trim.
23. Removal Of Center Pillar Trim
Using the plastic trim tool, remove the clip mounting areas on the back of the center pillar trim, and remove the center pillar trim.

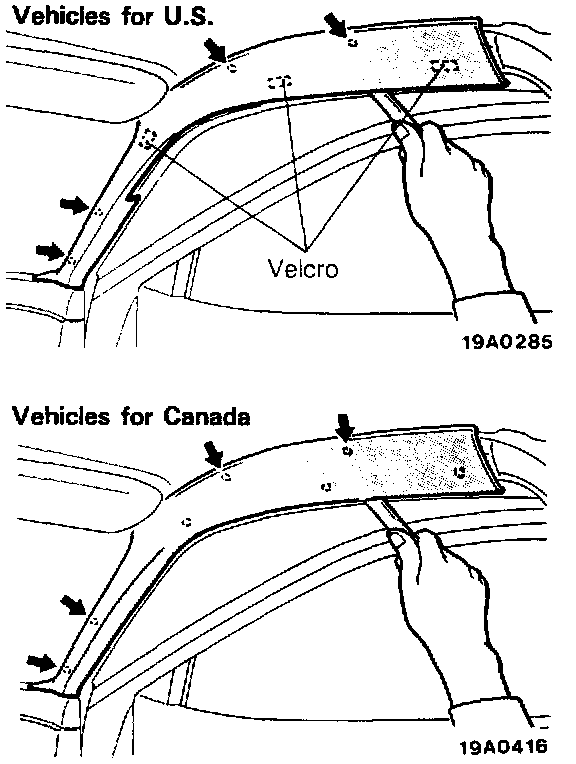

24. Removal Of Front Pillar Trim
Using the plastic trim tool, remove the clip mounting areas and Velcro areas
28. Removal Of Rear Pillar Trim
Using the plastic trim tool, remove the clip mounting areas on the back of the rear pillar trim, and remove the rear pillar trim.

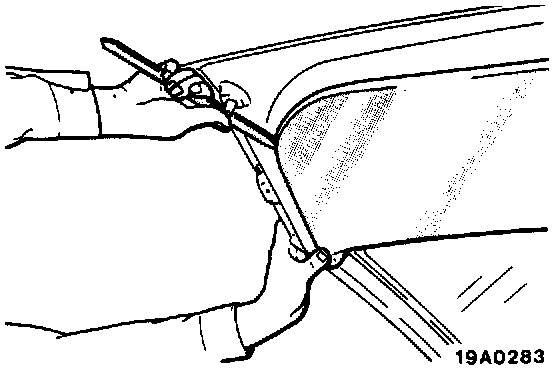

30. Removal Of Liftgate Trim
Using the plastic trim tool, remove the clip mounting areas on the back of the liftgate, and remove the liftgate.
