Front Door Panel: Service and Repair

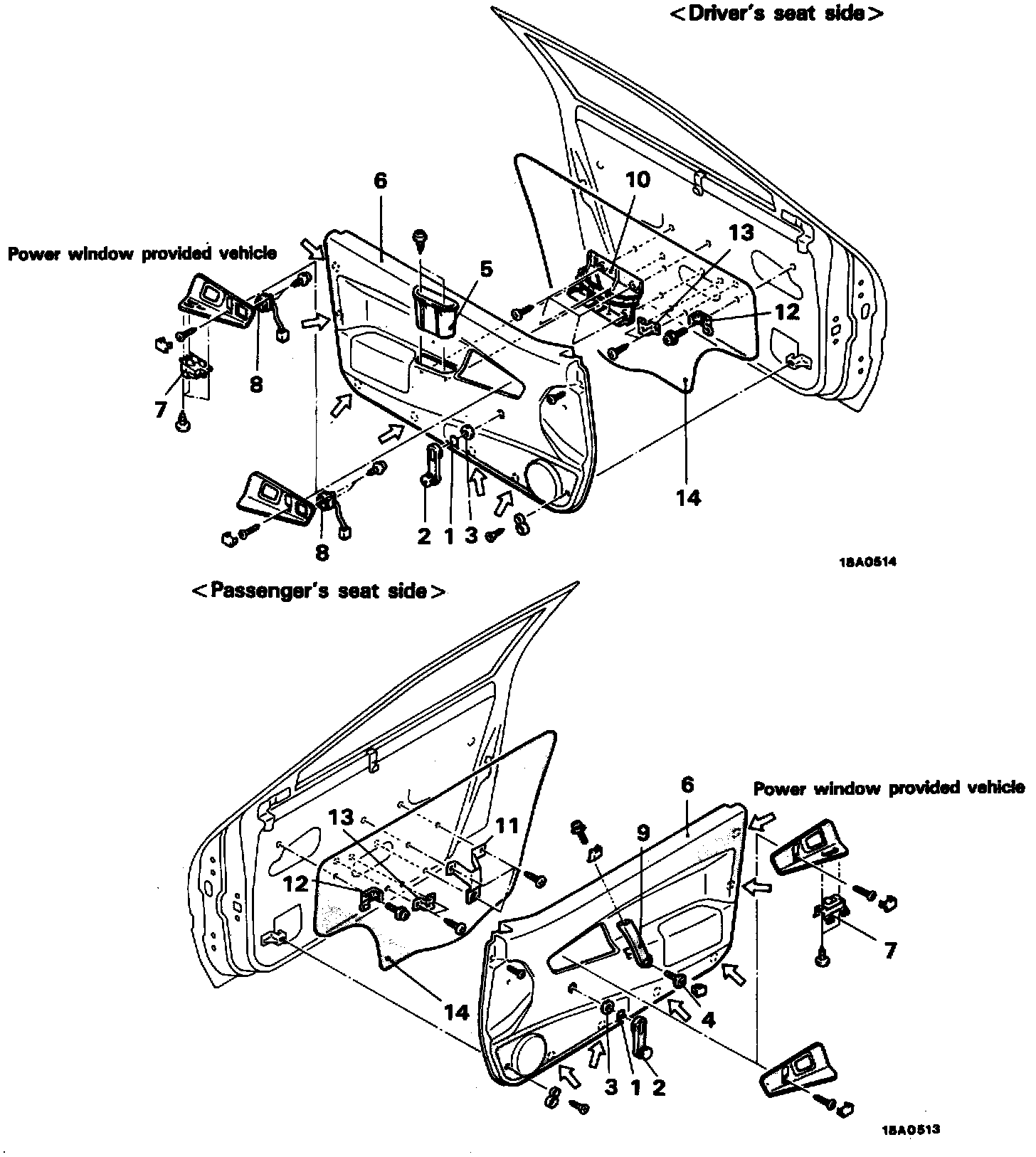

REMOVAL STEPS
1. Clip
2. Door window regulator handle
3. Escutcheon
4. Door grip mounting screw
5. Pull handle box
6. Door trim
7. Power window switch
8. Electrical remote control mirror switch
9. Door grip
10. Pull handle bracket
11. Door grip lower bracket
12. Door trim bracket B
13. Door trim bracket C
14. Waterproof film

NOTES:
1. Reverse the removal procedures to reinstall.
2. Light arrows show the installation position of trim clips.


SERVICE POINTS OF REMOVAL





1. Removal Of Clip

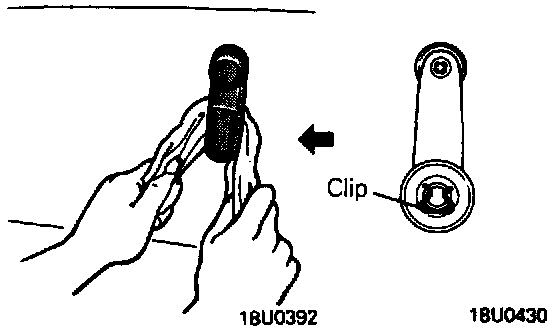

Use a shop towel to remove the clip, and remove door window regulator handle.





6. Removal Of Door Trim

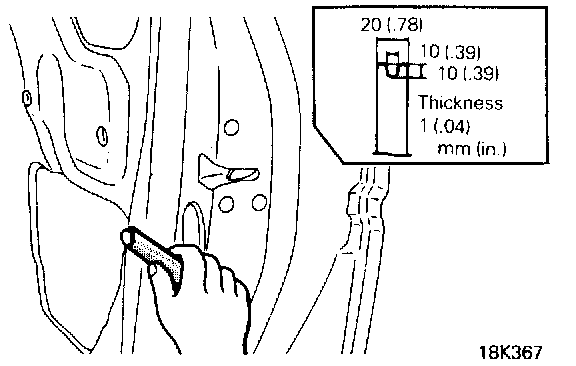

If clip remains in mounting hole provided in door, remove it by using tool manufactured as illustrated.

SERVICE POINTS OF INSTALLATION





14. Installation of sealant to waterproof film

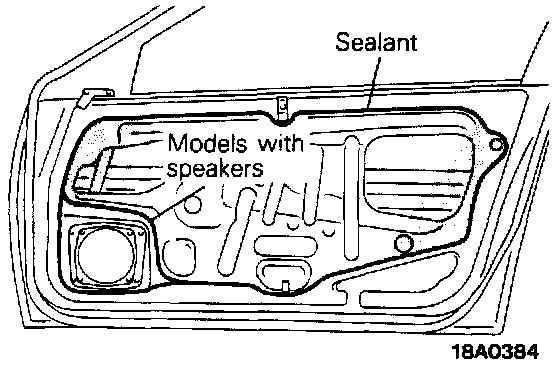

Apply specified sealant at the position shown in the illustration, and then attach the waterproof film.

Specified Sealant: MOPAR Rope Caulk Sealer 3/16" x 80" roll Part No. 4026044 or equivalent
