Front Door Latch: Service and Repair

PRE-REMOVAL OPERATION
- Removal of Door Trim and Waterproof Film

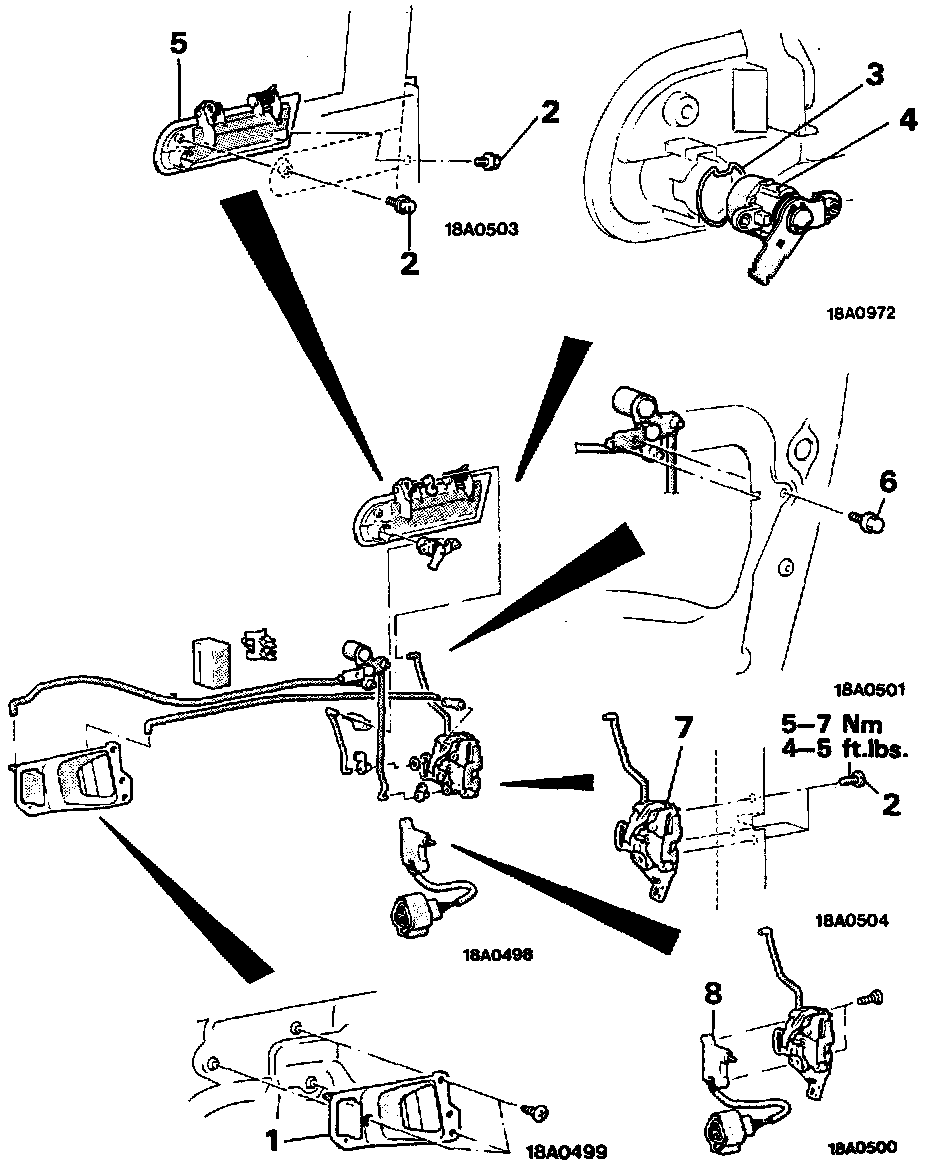

DOOR INSIDE HANDLE REMOVAL
- Door Inside Handle Play Check
1. Door inside handle

DOOR OUTSIDE HANDLE AND LATCH REMOVAL STEPS
- Door Outside Handle Play Check
2. Bolt
3. Ping
4. Door lock key cylinder
5. Door outside handle
6. Bellcrank holder mounting bolt
7. Door latch assembly
8. Door latch switch (Vehicles for U.S.)

POST-INSTALLATION OPERATION
- Installation of Door Trim and Waterproof Film

SERVICE POINTS OF INSTALLATION
7. Application Of Grease To Door Latch Assembly/5. Door Outside Handle/1. Door Inside Handle
Apply multipurpose grease to all moving parts.

Specified Grease: MOPAR Multipurpose Grease Part No. 2932524 or equivalent
