FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Eagle
>>
1994
>>
Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Radio/Stereo
>>
Testing and Inspection
>>
C Charts - Tape Player
>>

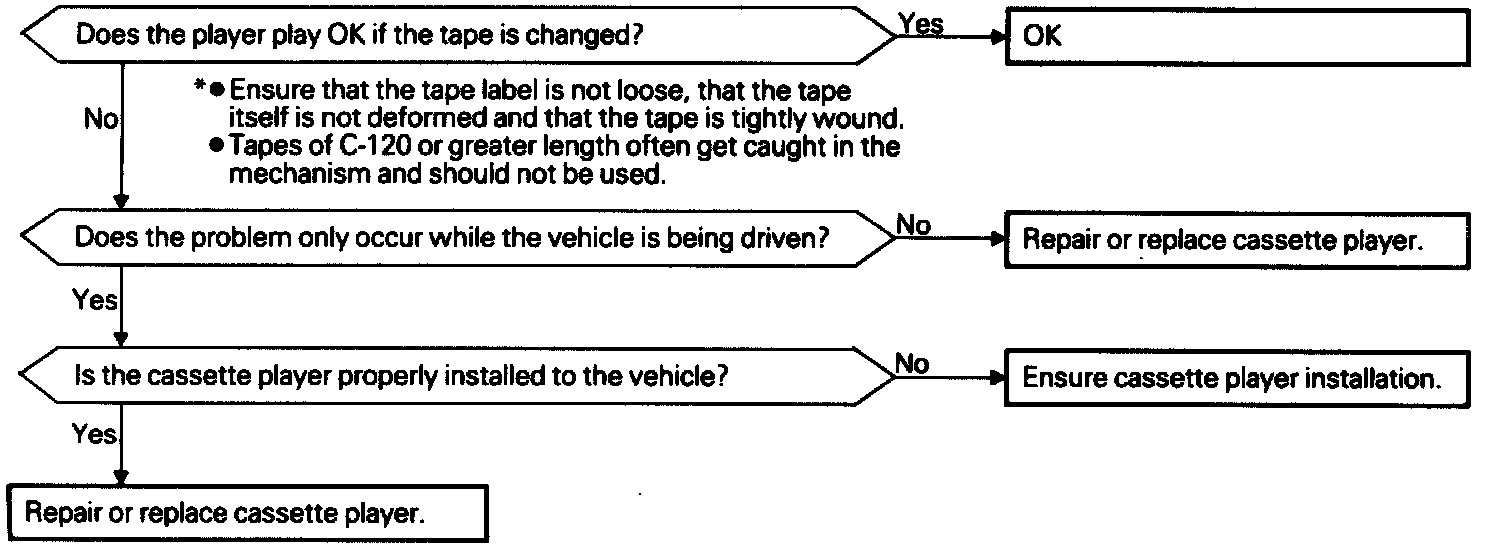

Chart C-8 Tape Gets Caught In Mechanism
Chart C-8 Tape Gets Caught In Mechanism
Chart C-8: Faulty Auto Reverse.:
Chart C-8: Faulty Auto Reverse.
